Hardware Setup
IR1

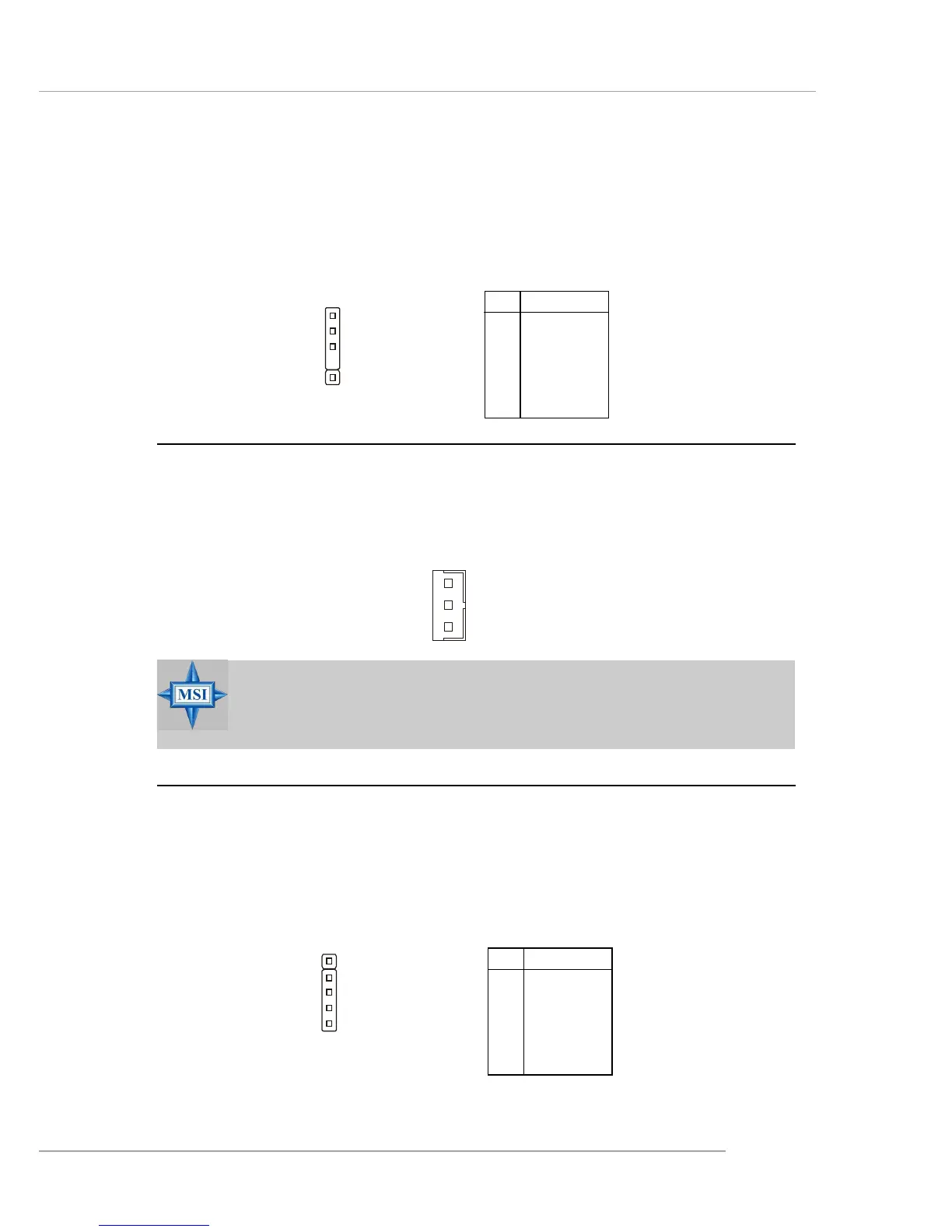

IrDA Infrared Module Header: IR1
The connector allows you to connect to IrDA Infrared module. You must configure the
setting through the BIOS setup to use the IR function.
1
Wake On LAN Connector: JWOL
This connector allows you to connect to a LAN card with Wake On LAN function. You
can wake up the computer via remote control through a local area network.
JWOL
5VSB
GND
MP_WAKEUP
1
MSI Reminds You...
To be able to use this function, you need a power supply that provides
enough power for this feature. (750 mA 5V Stand-by)
Wake Up On Modem Connector: JMR1
This connector allows you to connect to connect a modem card with Wake Up On
Modem function. You can wake up the computer via remote control device through
modem.
JMR1
1
Pin Signal
1 VCC5
2NC
3 IRRX
4 GND
5 IRTX
IR1 Pin Definition
Pin Signal
1NC
2 GND
3 WAKE UP
4NC
5 5VSB
JMR1 Pin Definition
