MS-7082 Micro ATX Mainboard

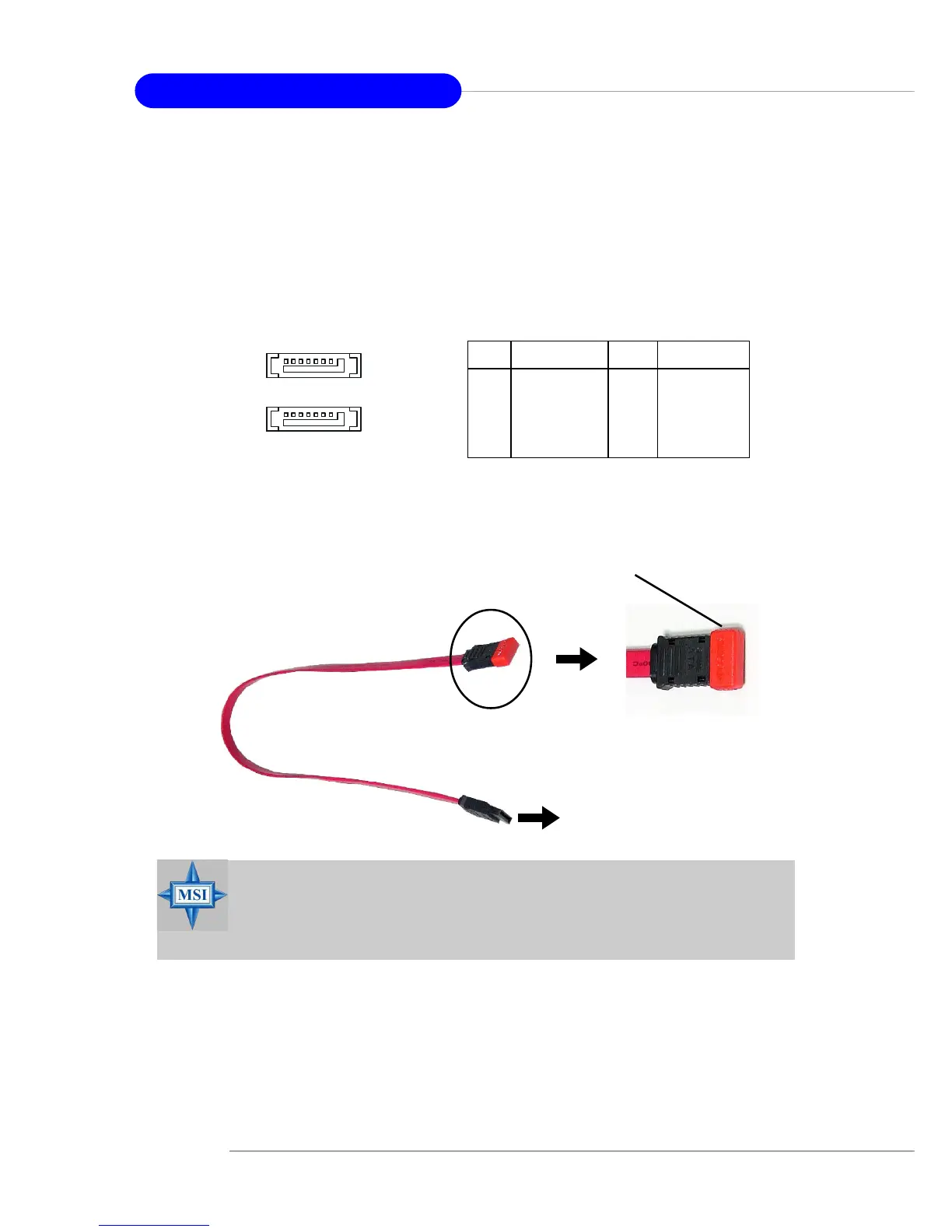

Serial ATA HDD Connectors: SATA1 & SATA2
The mainboard provides dual high-speed Serial ATA interface ports. The ports support
1
st
generation Serial ATA data rates of 150MB/s and are fully compliant with Serial ATA
1.0 specifications. Each Serial ATA connector can connect to 1 hard disk drive.
PIN SIGNAL PIN SIGNAL
1 GND 2 TXP
3 TXN 4 GND
5 RXN 6 RXP
7 GND
Pin Definition
Connect to SATA1 or SATA2
Take out the dust cover and
connect to the hard disk
devices
Optional Serial ATA cable
MSI Reminds You...
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
the loss of data may occur during transmission.
