2-16
MS-7082 Micro ATX Mainboard
The mainboard provides connectors to connect to FDD, IDE HDD, case, LAN, USB
Ports, IR module and CPU/System/Power Supply FAN.

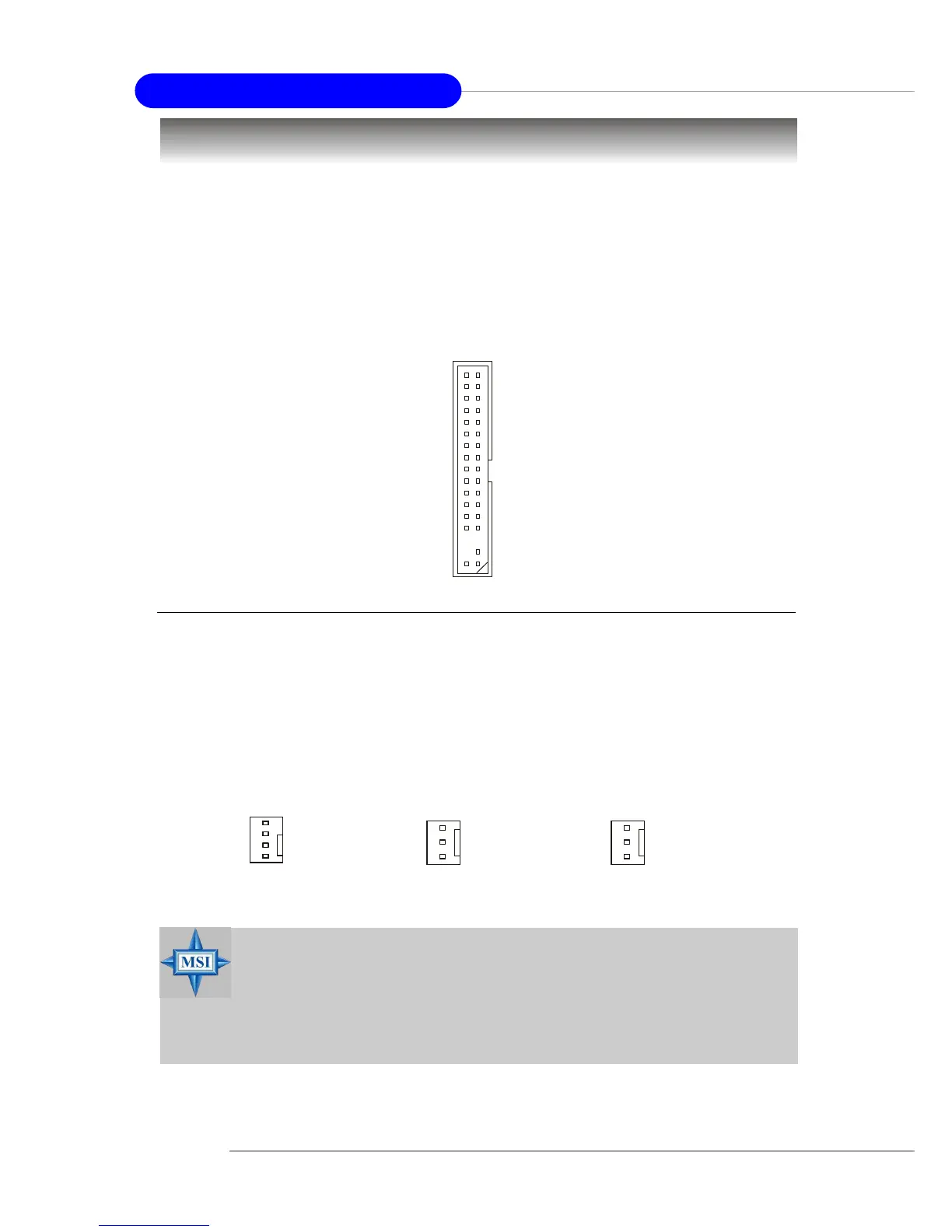

Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports 360K,
720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
FDD1
Fan Power Connectors: CPUFAN2 & PWRFAN1 & CHSFAN1
The CPUFAN2 (processor fan), CHSFAN1 (system fan) and PWRFAN1 (power fan)
support system cooling fan with +12V. It supports four/three-pin head connector.
When connecting the wire to the connectors, always take note that the red wire is the
positive and should be connected to the +12V, the black wire is Ground and should be
connected to GND. If the mainboard has a System Hardware Monitor chipset on-board,
you must use a specially designed fan with speed sensor to take advantage of the CPU
fan control.
MSI Reminds You...
1. Always consult the vendors for proper CPU cooling fan.
2. CPUFAN2 supports the fan control. You can install the PC Alert
utility that will automatically control the CPU fan speed according to
the actual CPU temperature.
CPUFAN2
Sensor
+12V
GND
GPIO
SENSOR
+12V
GND
PWRFAN1
SENSOR
+12V
GND
CHSFAN1
