MSI MS-7174 User Manual

2-14
MS-7174 M-ATX Mainboard

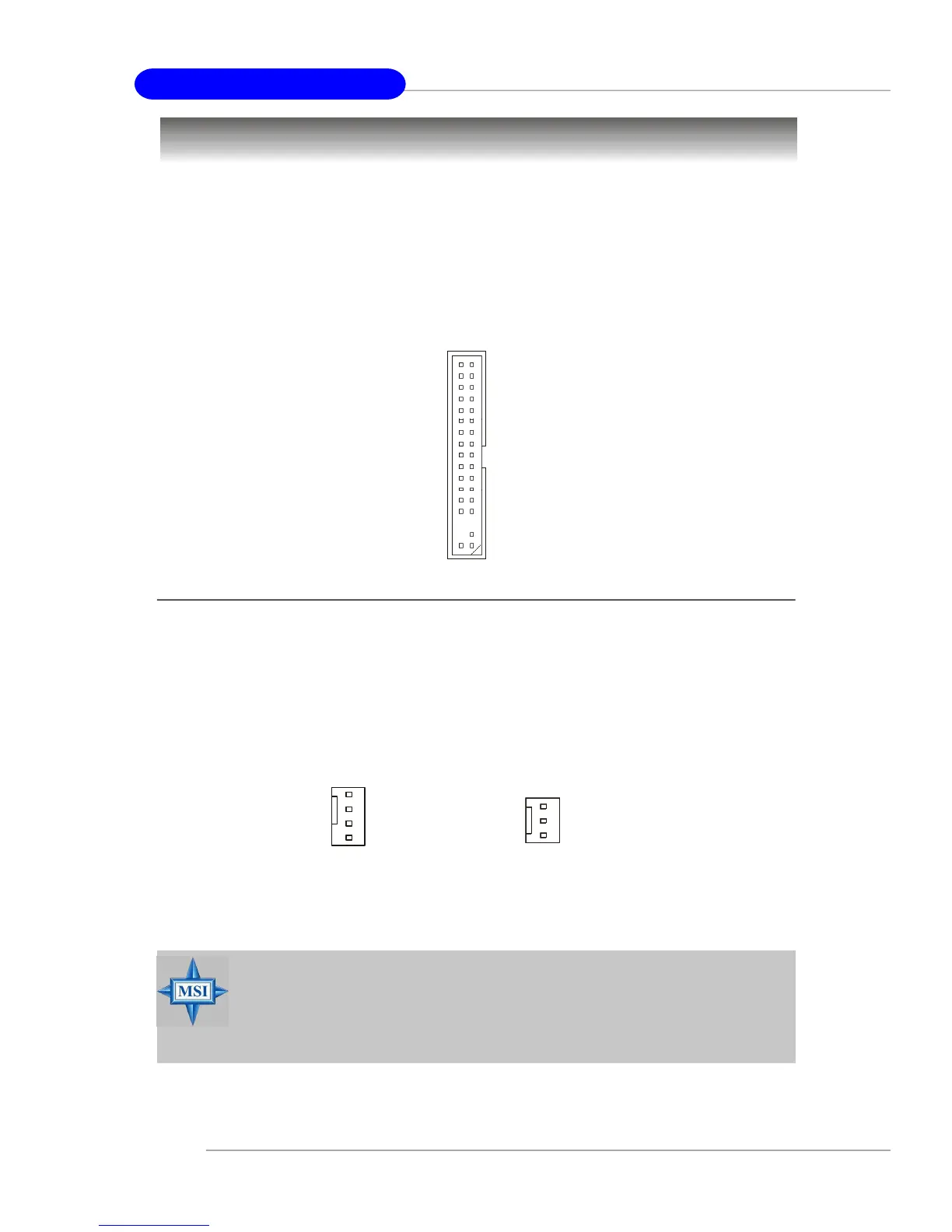

The mainboard provides connectors to connect to FDD, IDE HDD, case, LAN,
and USB Ports.
Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
FDD1
Fan Power Connectors: CPU_FAN/ SYS_FAN1
The CPU_FAN1 (processor fan) and SYS_FAN1 support system cooling fan
with +12V. When connecting the wire to the connectors, always take note that the
red wire is the positive and should be connected to the +12V, the black wire is
Ground and should be connected to GND. If the mainboard has a System Hardware
Monitor chipset on-board, you must use a specially designed fan with speed sensor
to take advantage of the CPU fan control.
SYS_FAN1
CPU_FAN
MSI Reminds You...
1.Always consult the vendors for proper CPU cooling fan.
2.CPU_FAN supports the fan control.
3.Please refer to the recommended CPU fans at Intel
®
official
website.
SENSOR
+12V
GND
Control
+12V
GND
SENSOR
