2-18
MS-7174 M-ATX Mainboard

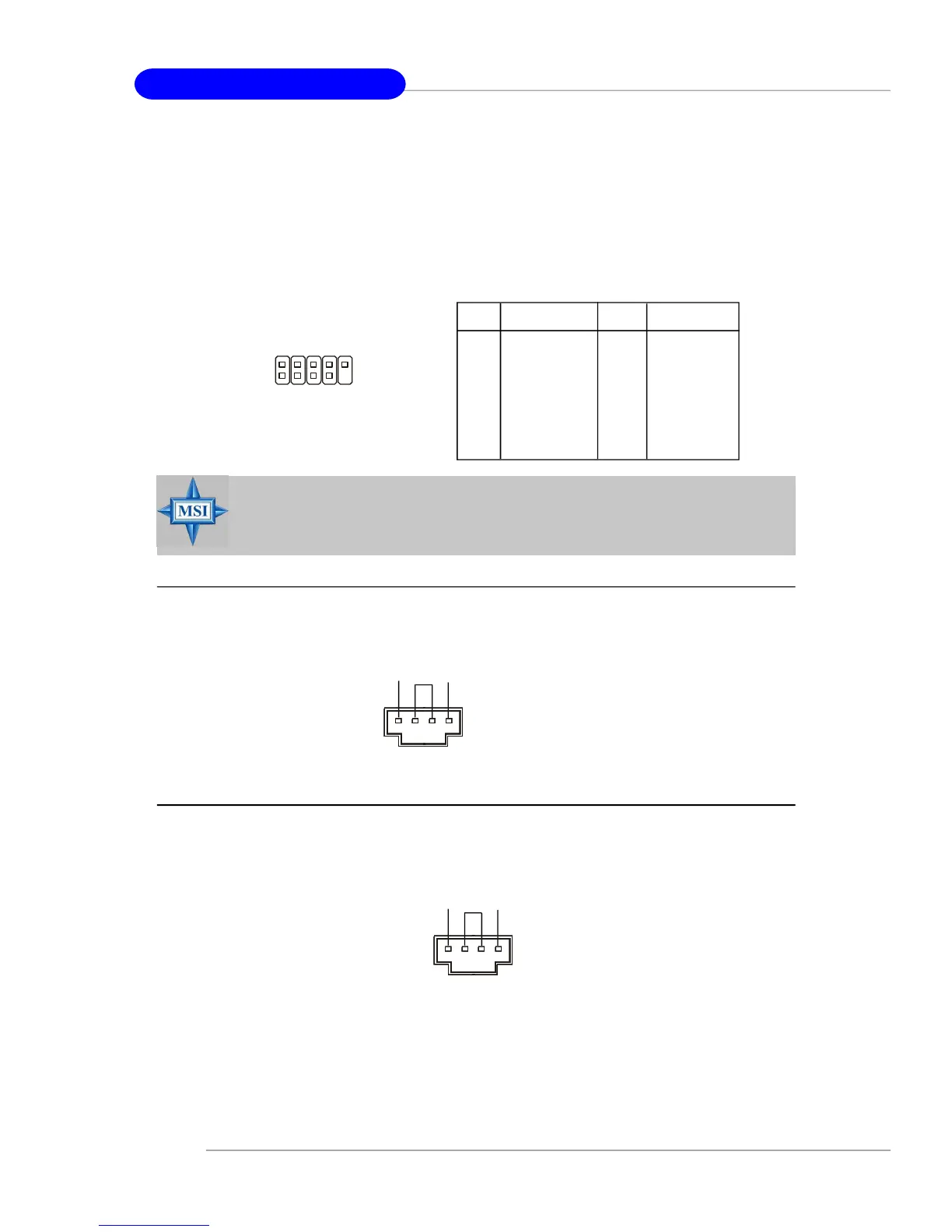

Front USB Connectors: F_USB1/2 (USB5/6/7/8)
The mainboard provides two standard USB 2.0 pin headers F_USB1. USB 2.0
technology increases data transfer rate up to a maximum throughput of 480Mbps,
which is 40 times faster than USB 1.1, and is ideal for connecting high-speed USB
interface peripherals such as USB HDD, digital cameras, MP3 players, printers,
modems and the like.
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key 10 NC
Pin Definition
MSI Reminds You...
Note that the pins of VCC and GND must be connected correctly, or it
may cause some damage.
(USB 2.0/standard spec)
1
9
2 10
Aux Line-In Connector: JAUX1
The connector is for DVD add-on card with Line-in connector.
AUX_IN1
R
LGND
JCD1
CD-In Connector: JCD1
The connector is for CD-ROM audio connector.
RLGND
