RAID Con󰘰guration
During bootup, a screen similar to the one below will appear for about few seconds.
Press <Ctrl>+<M> to enter Marvell BIOS setup utility.
Press <Ctrl>+<M> to enter BIOS Setup or <Space> to continue
Important
Be sure to enable the RAID function for SATA device in mainboard BIOS before con󰘰g-
uring the Marvell BIOS setup utility.

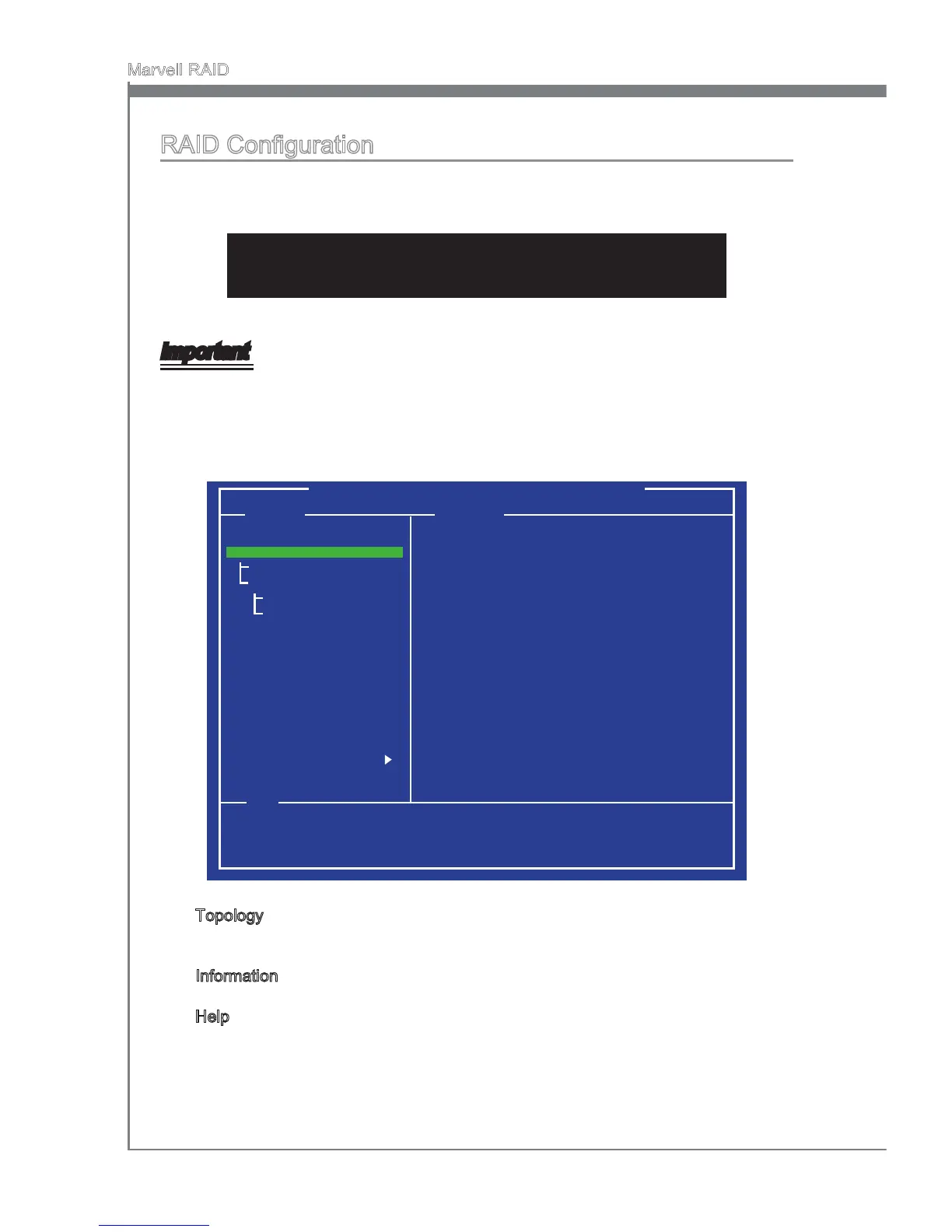

The RAID setup utility menu screen will appear. The Main Menu shows as below.
Marvell BIOS Setup (c) xxxx Marvell Technology Group Ltd.
Topology Information
HBA 0: Marvell 0
Virtual Disks
Free physical Disks
PD 0: ST3750330MS
PD 8: ST3750330MS
Vendor ID
Device ID
Revision ID
BIOS Version
Firmware Version
PCIe Speed Rate
Con󰘰gure SATA as
: 1848
: 91xx
: 81
: 1.0.0.1008
: 2.1.0.1316
: 5.0Gbps
: AHCI Mode
Help
Marvell RAID on chip controller.
ENTER: Operation F10: Exit/ Save ESC: Return
Topology - this pane used a tree view to list and show the relationships between
the various physical/ virtual devices attached to system.
Information - this pane is populated based on the selection in the Topology pane.
Help - this pane is used to display important information relevant to the selection.
It may contain short descriptions on selections, messages on setting list items,
default values for settings, among others.
■
■
■
