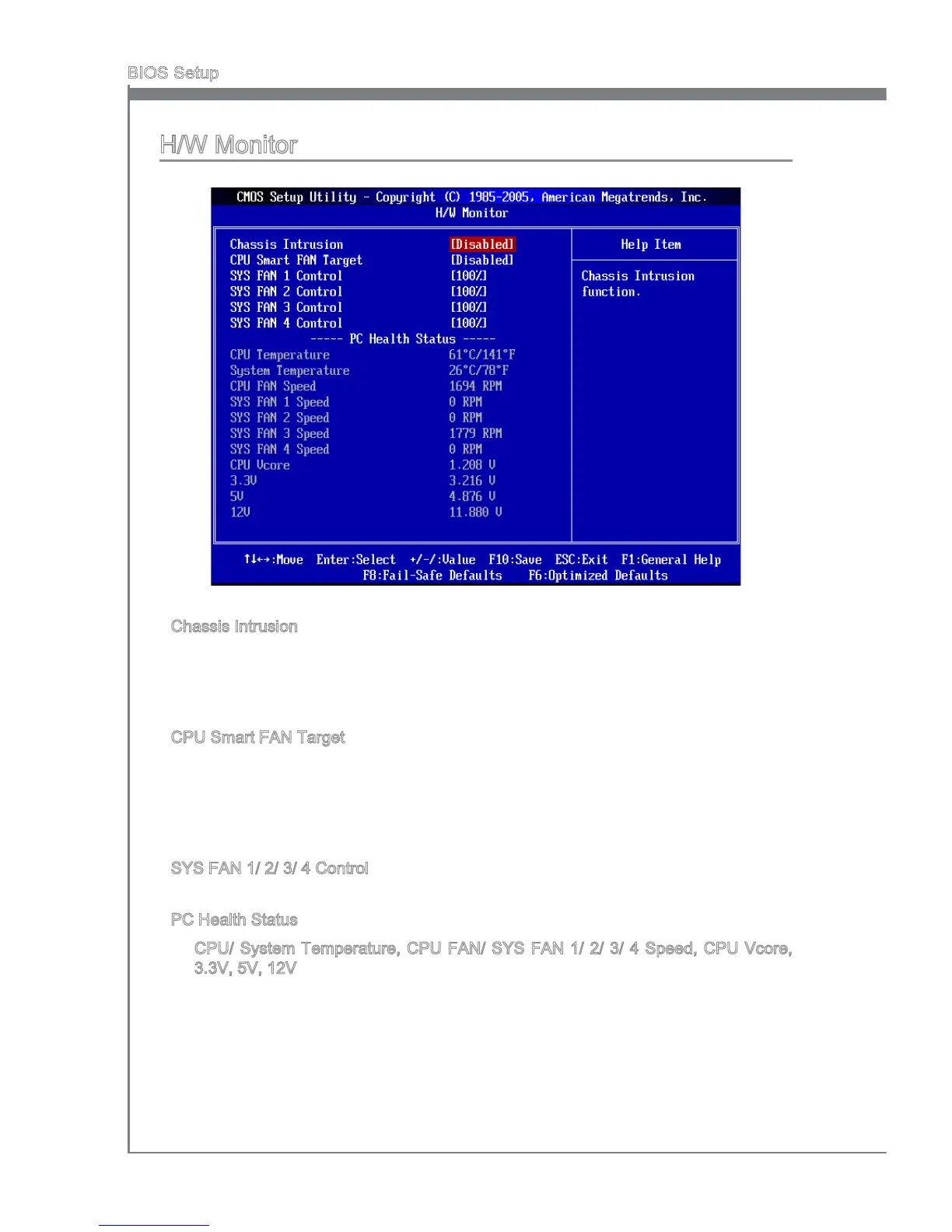

H/W Monitor
Chassis Intrusion
The eld enables or disables the feature of recording the chassis intrusion status and
issuing a warning message if the chassis is once opened. To clear the warning mes-
sage, set the eld to [Reset]. The setting of the eld will automatically return to [Enabled]
later.
CPU Smart FAN Target
The mainboard provides the Smart Fan function which can control the CPU fan speed
automatically depending on the current temperature to keep it with in a specic range.
You can enable a fan target value here. If the current CPU fan temperature reaches to
the target value, the smart fan function will be activated. It provides several sections to
speed up for cooling down automatically.
SYS FAN 1/ 2/ 3/ 4 Control
These items allow users to select how percentage of speed for the SYSFAN1/ 2/ 3/ 4.
PC Health Status
CPU/ System Temperature, CPU FAN/ SYS FAN 1/ 2/ 3/ 4 Speed, CPU Vcore,
3.3V, 5V, 12V
These items display the current status of all of the monitored hardware devices/com-
ponents such as CPU voltage, temperatures and all fans’ speeds.
▶
▶
▶
▶
▶
