2-14
Hardware Setup
MS-7666
Chapter
2
Hardware
Setup
MS-7666
Chapter
2

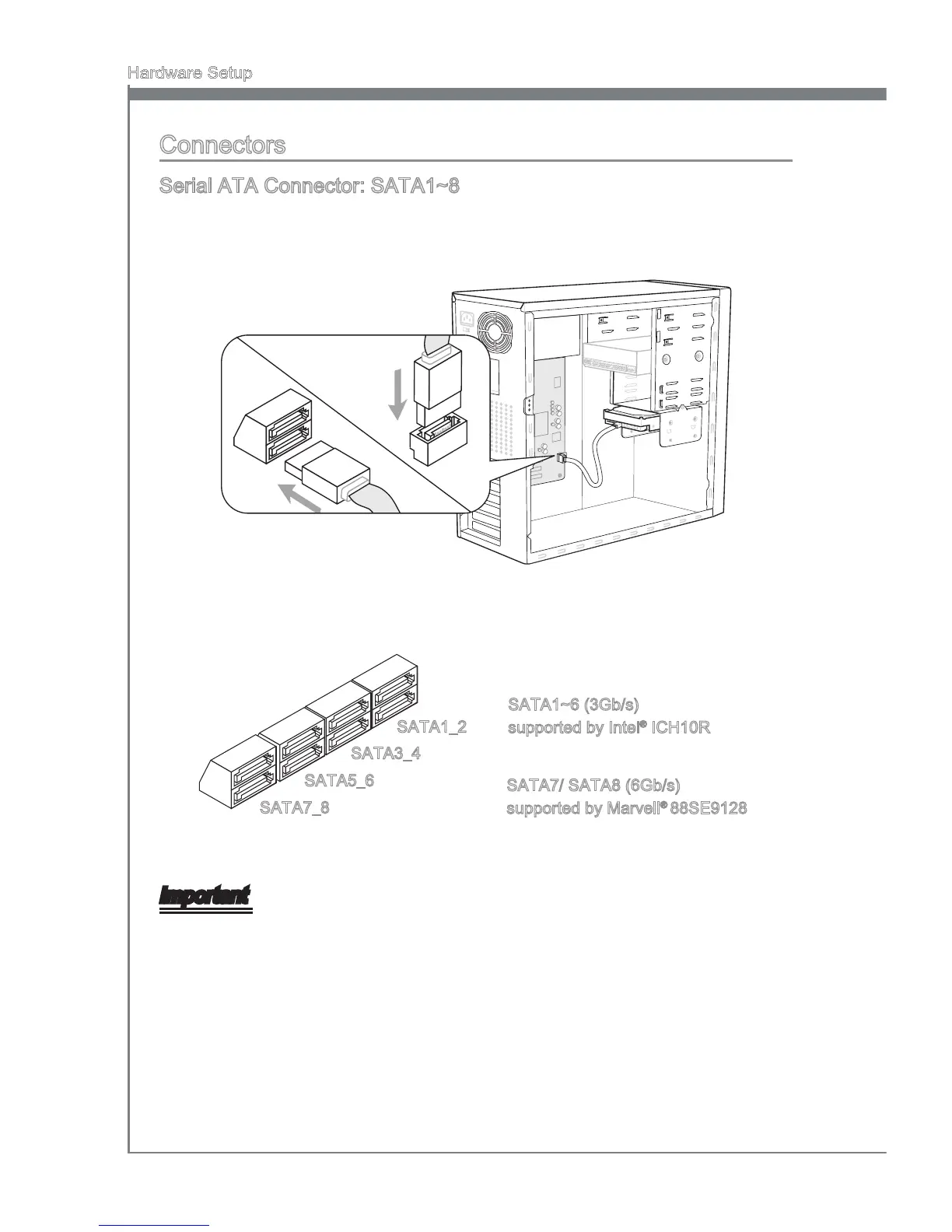

Connectors
Serial ATA Connector: SATA1~8
This
connector
is
a
high-speed
Serial
ATA
interface
port.
Each
connector
can
connect
to one Serial ATA device.
* The MB layout in this gure is for reference only.
SATA5_6
SATA3_4
SATA1_2
SATA1~6 (3Gb/s)
supported by Intel
®
ICH10R
SATA7/ SATA8 (6Gb/s)
supported by Marvell
®
88SE9128
SATA7_8
Important
Please
do not
fold the
Serial ATA
cable into
90-degree angle.
Otherwise, data
loss may
occur during transmission.
