Hardware Setup Industrial Computer Board
2-3
Hardware Setup Industrial Computer Board

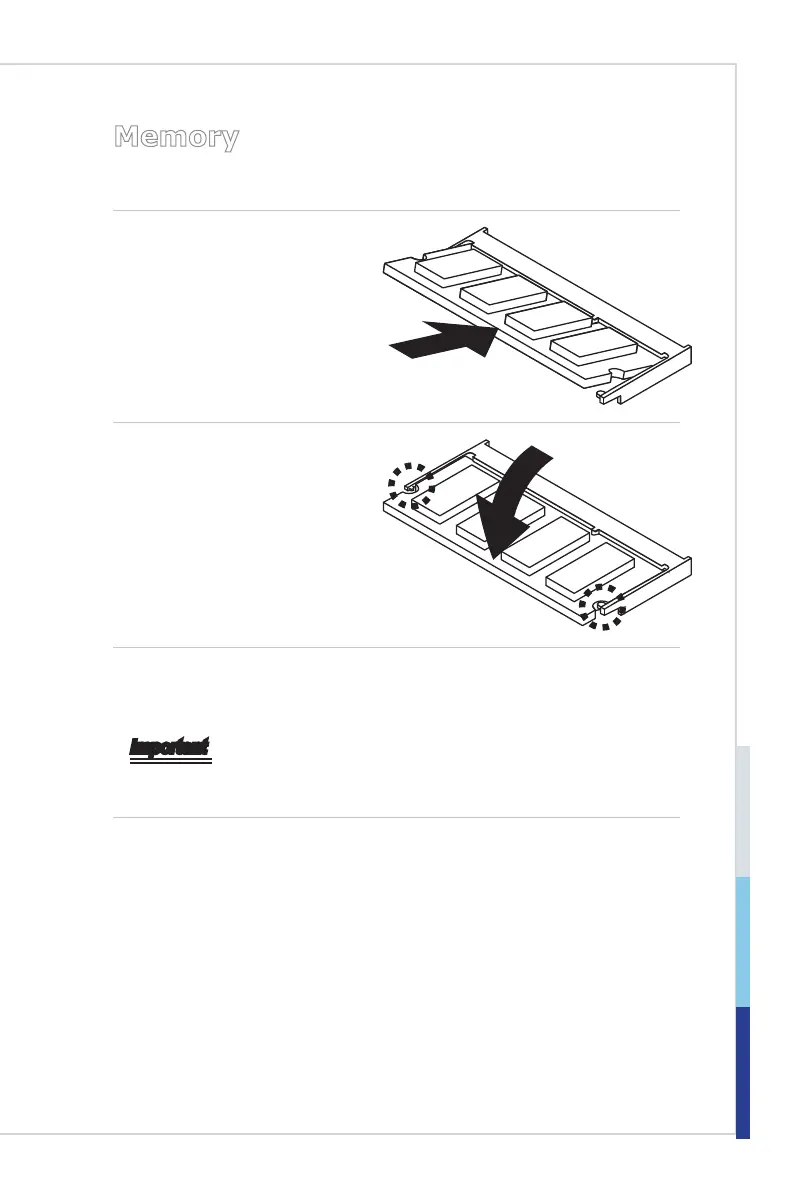

Memory
The SO-DIMM slot is intended for memory modules.
1. Locate the SO-DIMM slot. Align
the notch on the DIMM with the
key on the slot and insert the
DIMM into the slot.
2. Push the DIMM gently down-
wards until the slot levers click
and lock the DIMM in place.
3. To uninstall the DIMM, flip the slot levers outwards and the DIMM will be
released instantly.
Important
You can barely see the golden finger if the DIMM is properly inserted in the
DIMM slot.
