Hardware Setup

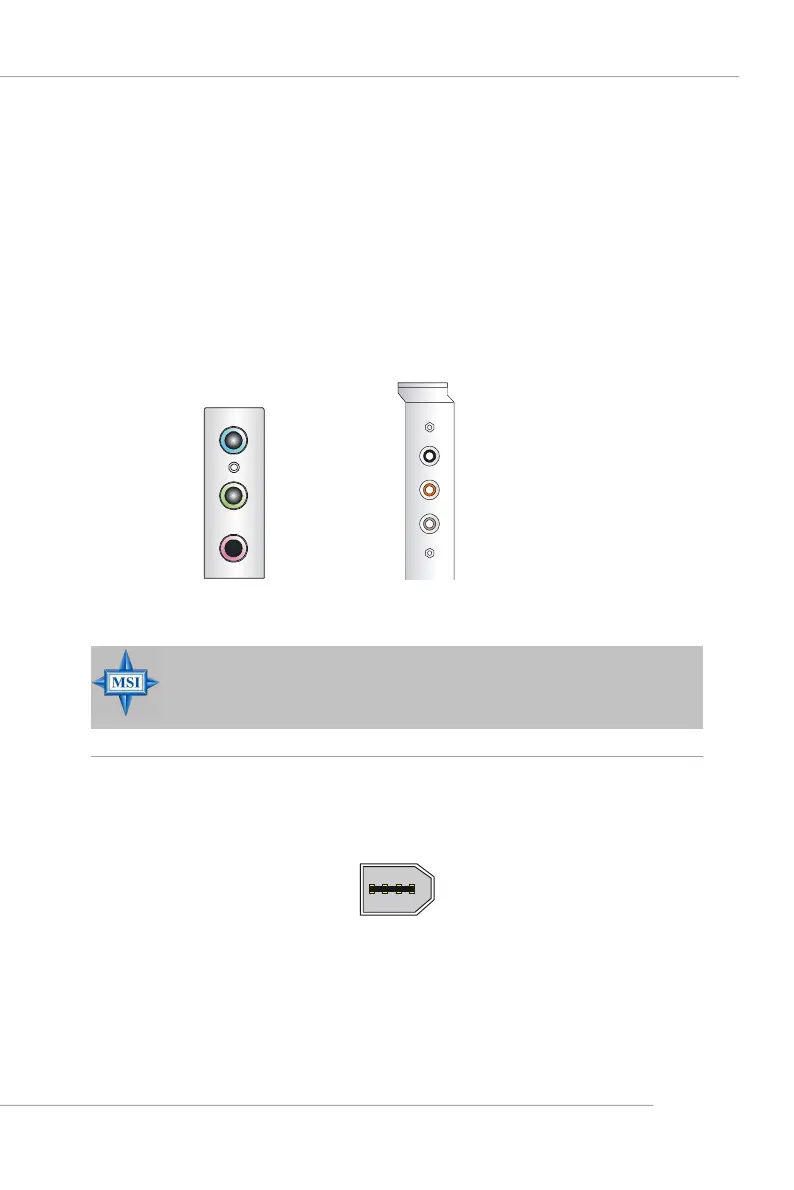

Audio Port Connectors & Audio Header (J1)
The 3 audio jacks are for 2-channel mode for stereo speaker output: Line Out
is a connector for Speakers or Headphones. Line In is used for external CD player,
Tape player, or other audio devices. Mic is a connector for microphones.
However, there is an advanced audio application provided by Realtek ALC880
to offer support for 7.1-channel audio operation. You can use the external audio
cable and the rear audio connectors to function the 2-/4-/5.1-/7.1- channel audio.
IEEE 1394 Port
There is one 1394 port on the back panel providing the connection for 1394
devices.
1394 port
MSI Reminds You...
For the advanced functions of the audio codec, please refer to Appen-
dix A: Introduction to Realtek ALC880 Audio Codec for details.
Line Out
Line In
MIC
Rear Out
Center and Subwoofer Out
Side Surround Out
To Next Page
