33
Overview of Components
M2_1~2: M.2 Slots (Key M)
1
2
3
30°
5

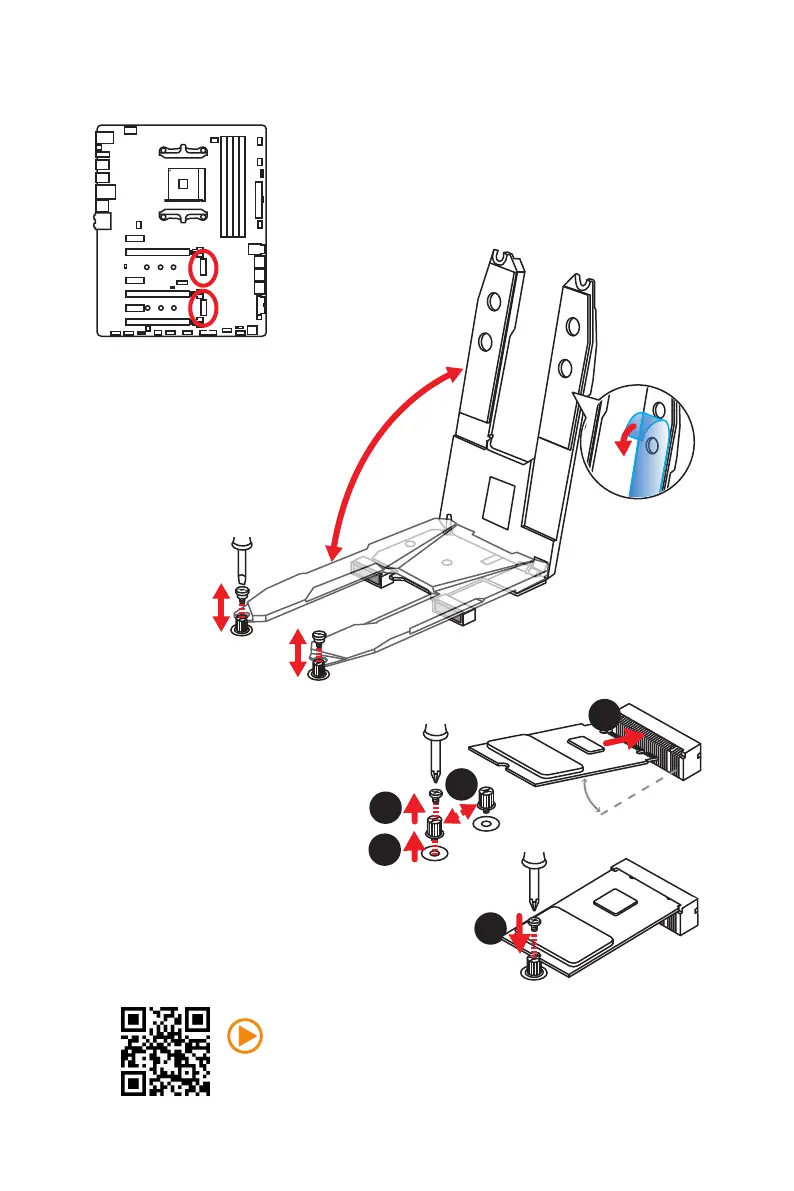

Installing M.2 module
1. Remove the screw from the base
screw.
2. Remove the base screw.
3. Tighten the base screw into
the hole of the distance to the
M.2 slot as the length your M.2
module.
4. Insert your M.2 module into the
M.2 slot at a 30-degree angle.
5. Put the screw in the notch on the
trailing edge of your M.2 module and
tighten it into the base screw.
4
Video Demonstration
Watch the video to learn how to Install M.2 module.
http://youtu.be/JCTFABytrYA
Using M.2 SHIELD FROZR
This motherboard has M.2 SHIELD FROZR on the M.2 slots
for heat dissipation from the M.2 modules. Before installing
the M.2 module for the first time, you need to remove
two screws, lift the M.2 SHIELD FROZR and remove the
protective films from the
thermal pads.
To Next Page
