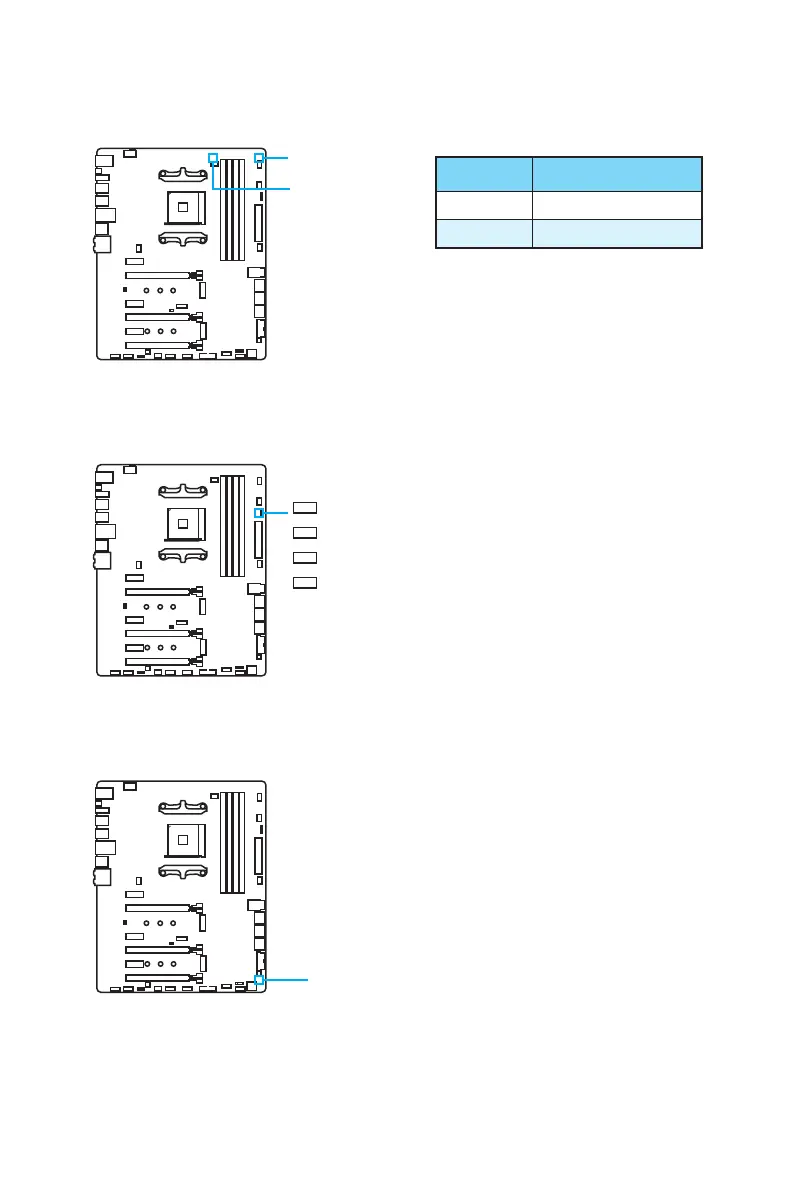

Onboard LEDs
BIOS FLASHBACK+ LED
LED Color Fan control mode
Red PWM mode
Green DC mode
Fan LEDs
These LEDs indicate the fan control mode.
CPU_FAN1 LED
PUMP_FAN1 LED
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.
BIOS FLASHBACK+ LED
BIOS FLASHBACK+ LED indicates BIOS flash is in progress.
