MSI X99A GAMING 7 User Manual

Chapter 1
1-7 Getting Started

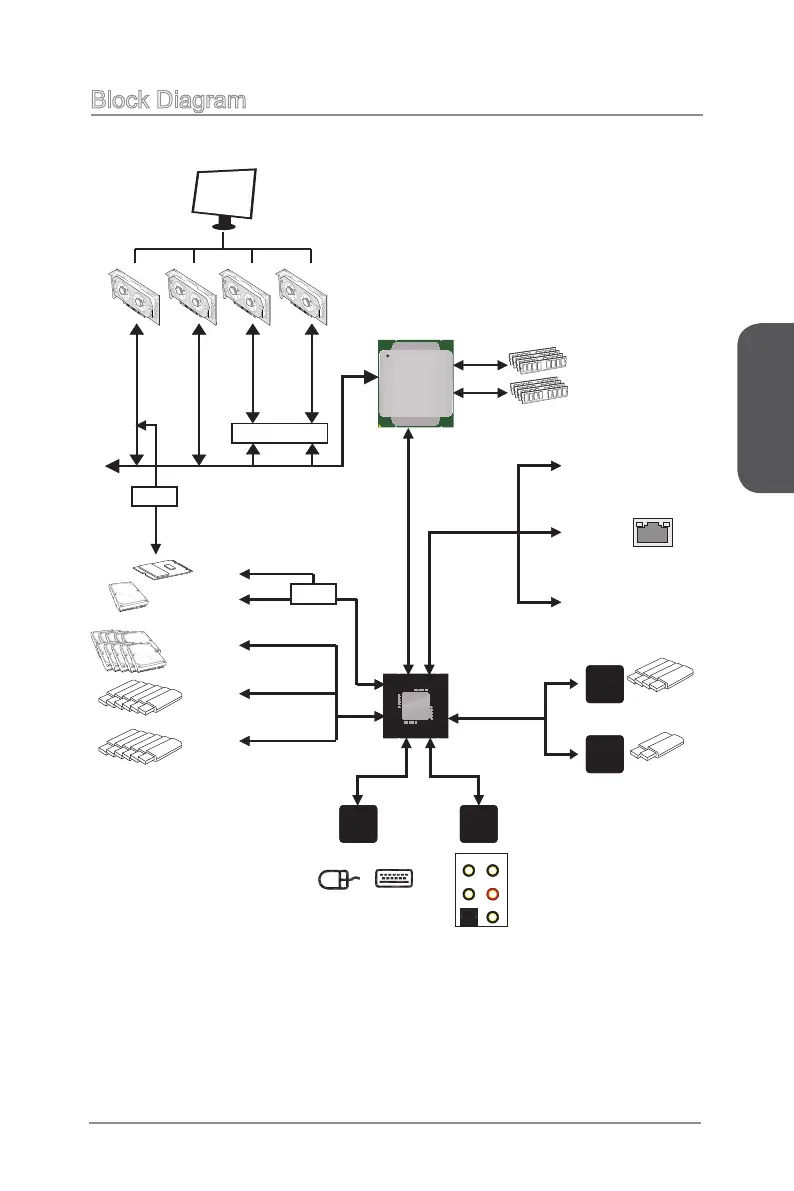

Block Diagram
LPC Bus
2 x USB 3.1
4 Channel DDR4 Memory
4 x USB 3.0
6 x USB 3.0
1 x SATA Express
1 x M.2
10 x SATA 6Gb/s
6 x USB 2.0
PCI Express Bus
PCI Express Bus
PCI Express Bus
PS/2 Mouse / Keyboard
Killer E2205
Gigabit LAN
DMI 2.0
PCI Express 3.0 PCI Express 3.0 PCI Express 3.0 PCI Express 3.0
PCI Express Bus
Switch
X99 PCH
Haswell-E
Processor
LGA2011-3 CPU
NV6792
Super I/O
Realtek
ALC1150
VIA
VL805
ASMEDIA
ASM1142
x1
x1
x2
x1
x4
x2
x1
Switch
Switch
(2 ports reserved for SATA Express)
OR
S/PDIF-Out
Line-In/ SS-Out
Line-OutRS-Out
CS-Out
MIC
PCIe x1 slot
PCIe x1 slot
■ For detailed information, please refer to “Motherboard Speci󰘰cations”.

MSI X99A GAMING 7 Specifications

General

Brand	MSI
Model	X99A GAMING 7
Category	Motherboard
Language	English
