35
Overview of Components

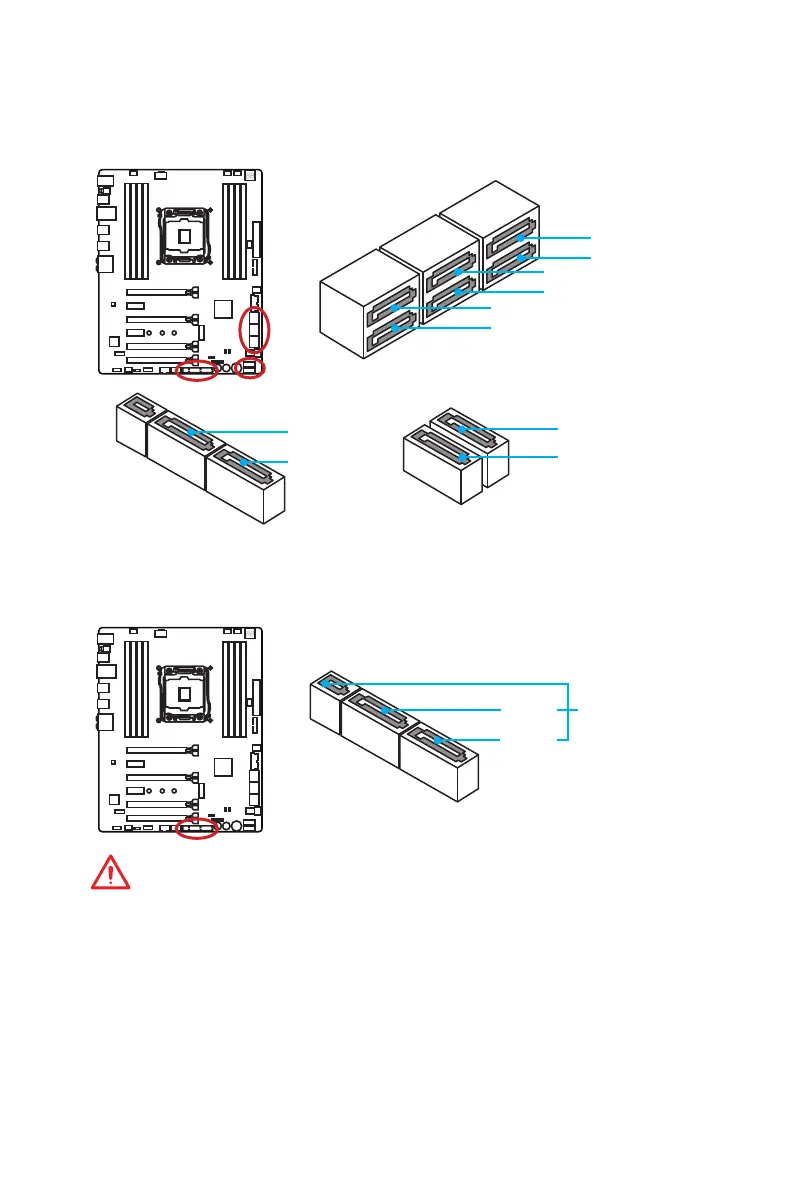

SATA1~10: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA2
SATA3
SATA7
SATA4
SATA8
SATA1
SATA10
SATA9
SATA5
SATA6
SE1_65: SATAe Connector
This connector is a SATAe (SATA Express) interface port. Each SATAe connector can be
used with a single SATAe device or two legacy SATA devices.
SATA5
SATA6
SATAe
Important
y
Please do not fold the SATA or SATAe cable at a 90-degree angle. Data loss may
result during transmission otherwise.
y
SATA or SATAe cables have identical plugs on either sides of the cable. However, it
is recommended that the flat connector be connected to the motherboard for space
saving purposes.
