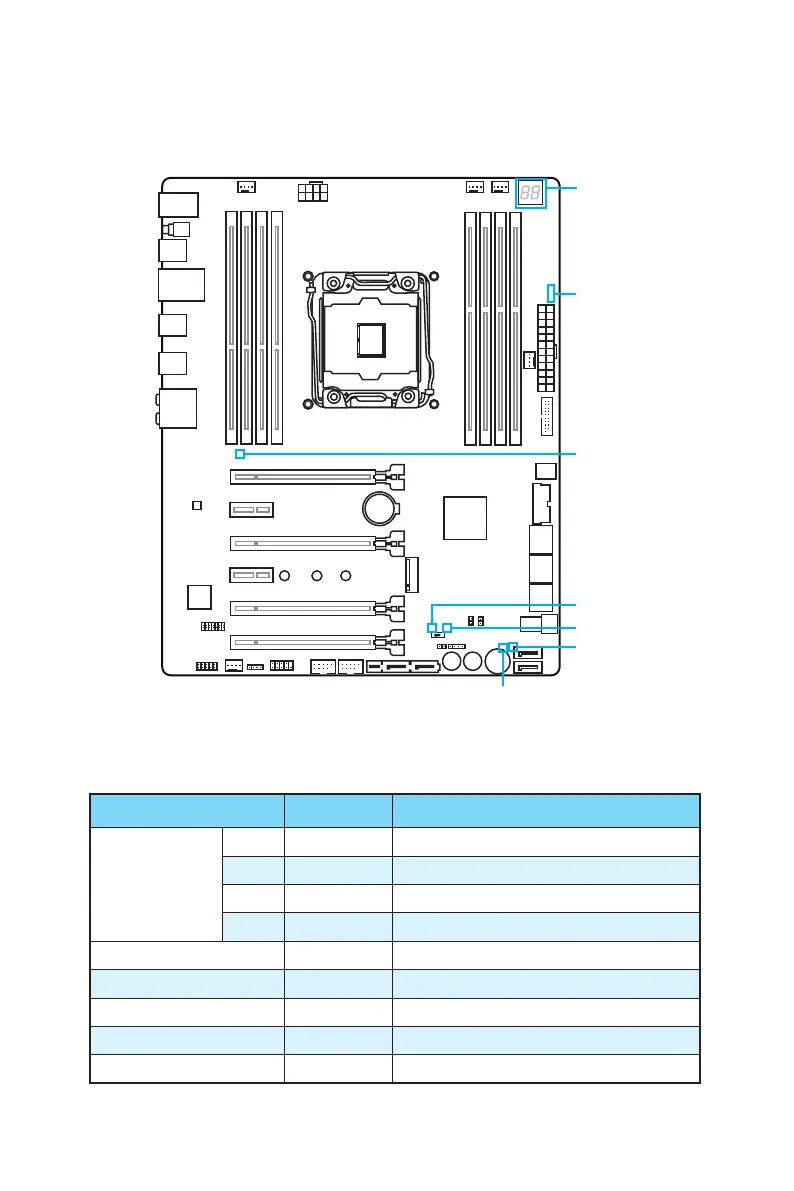

LED Status Indicators
LED Status Indicators
EZ Debug LED 2:
CPU
DRAM
VGA
BOOT
BIOS A LED
BIOS B LED
GAME BOOST SW LED
GAME BOOST HW LED
XMP LED
LED Status Table
LED LED Status Description
EZ Debug LED 2
CPU Light CPU is not detected or fail
DRAM Light Memory is not detected or fail
VGA Light GPU is not detect or fail
BOOT Light Booting device is not detected or fail
XMP LED Red XMP Enabled
GAME BOOST HW Red GAME BOOST control by physical button
GAME BOOST SW White GAME BOOST control by BIOS
BIOS A Red BIOS A in operation
BIOS B White BIOS B in operation
Debug Code LED
