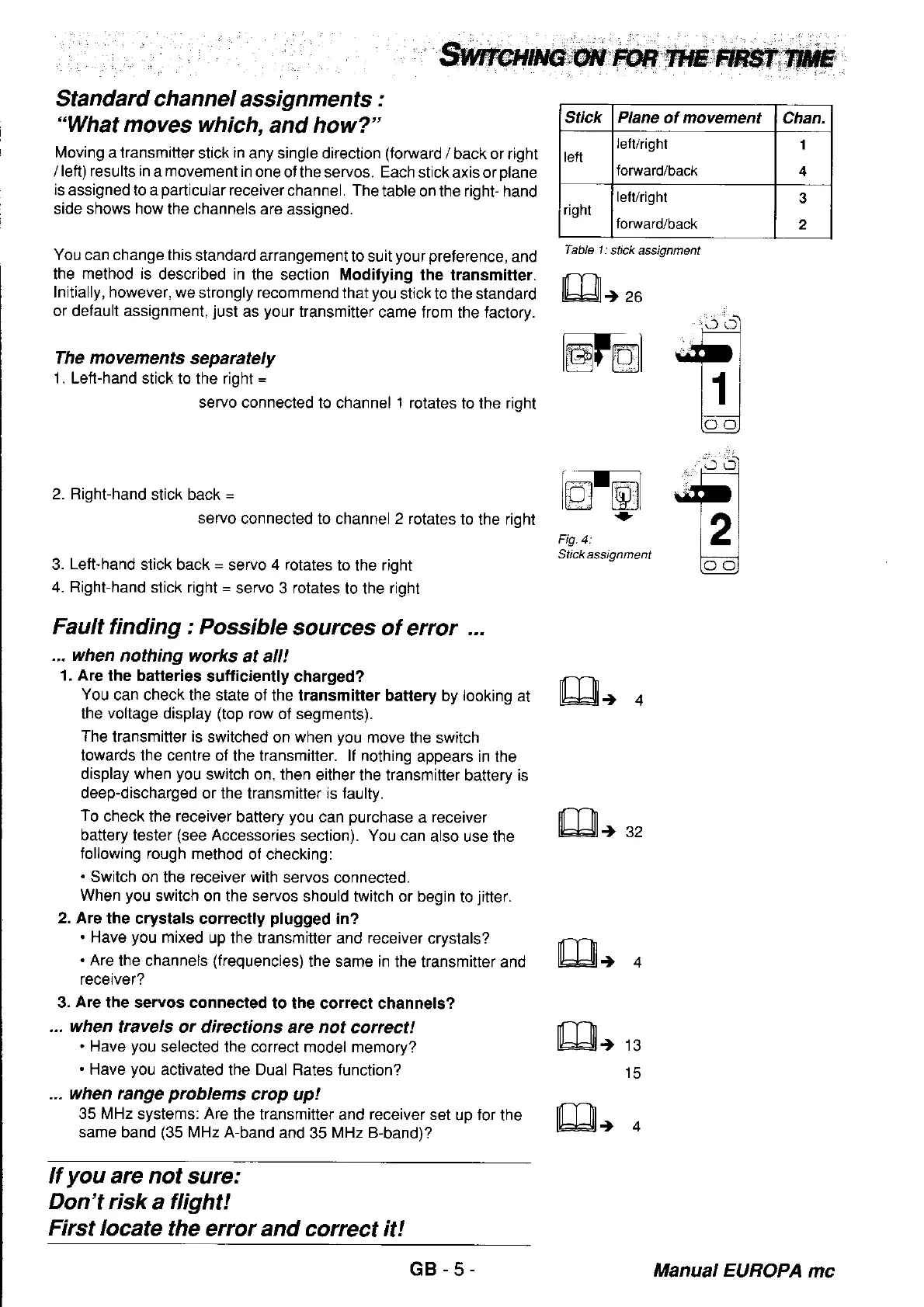

Standard channel
assignments
:
"What
moves which,
and how?"
Moving a transmitter
stick
in
any single direction
(forward
/ back or right
/
left) results in
a
movement
in
one ot the servos. Each
stick axis or
plane
is
assigned to a
particular
receiver
channel. The
table on the right- hand
side shows how
the channels are
assigned.
You can change this
standard arrangement
to suit
your preference,
and
the
method is
described in
the section Modilying
the transmitter.
Initially, however,
we strongly recommend
that
you
stick to the standard
or default assignment,
just
as
your
transmitter
came from
the
factory.
The movements
separately
1. Left-hand
stick to the right
=
servo connected
to channel 1 rotates
to the rioht
2. Right-hand
stick back
=
servo
connected to channel 2 rotates
to
the
rioht
3.
Left-hand
stick back
=
servo
4 rotates
to the
right
4. Righfhand
stick right
=
s€rvo 3 rotates
to the
right
Fault finding : Possible
sources of
error
...
... when
nothing works
at all!
1. Are
the batteries
sufficiently charged?
You
can check the state
of the transmiiler
battery by
looking
at
the
voltage
display
(top
row
of segments).
The
transmitter
is
switched
on
when
you
move
the switch
towards the centre
of the transmitter. lf nothing
appears in the
display when
you
switch on, then
either the transmitter
battery
is
deep-discharged
or the transmitter is taulty.
To
check the receiver
battery
you
can
purchase
a
receiver
baüery tester
(see
Accessories
section). You
can also use the
tollowing
rough method
of checking:
.
Switch on
lhe
receiver with
servos
connected.
When
you
switch on the servos
should twitch or begin
to
jitter.
2. Are
the crystals correctly
plugged
in?
.
Have
you
mixed
up the transmitter
and
receiver
crystals?
.
Are
the channels
(frequencies)
the same in
the transmitter and
receiver?
3.
Are
the servos connected
to the correct channels?
... when
travels or directions
are
not
correct!
.
Have
you
selected the correct model memory?
.
Have
you
activated the Dual Rates function?
... when range
problems
crcp up!
35 MHz
systems:
Are
the transmitter
and
receiver
set
up
for
the
same
band
(35
MHz
A-band
and 35
MHz B-band)?
lf
you
are not
sure:
Don't risk
a
tlight!
stick
Plane
of movement
Chan.
lett
left/right
forward/back
1
4
right
lelvright
forward/back
3
2
Table 1:
stick assignment
First locate
the
error and correct it!
GB
.5
lEQl,
o
