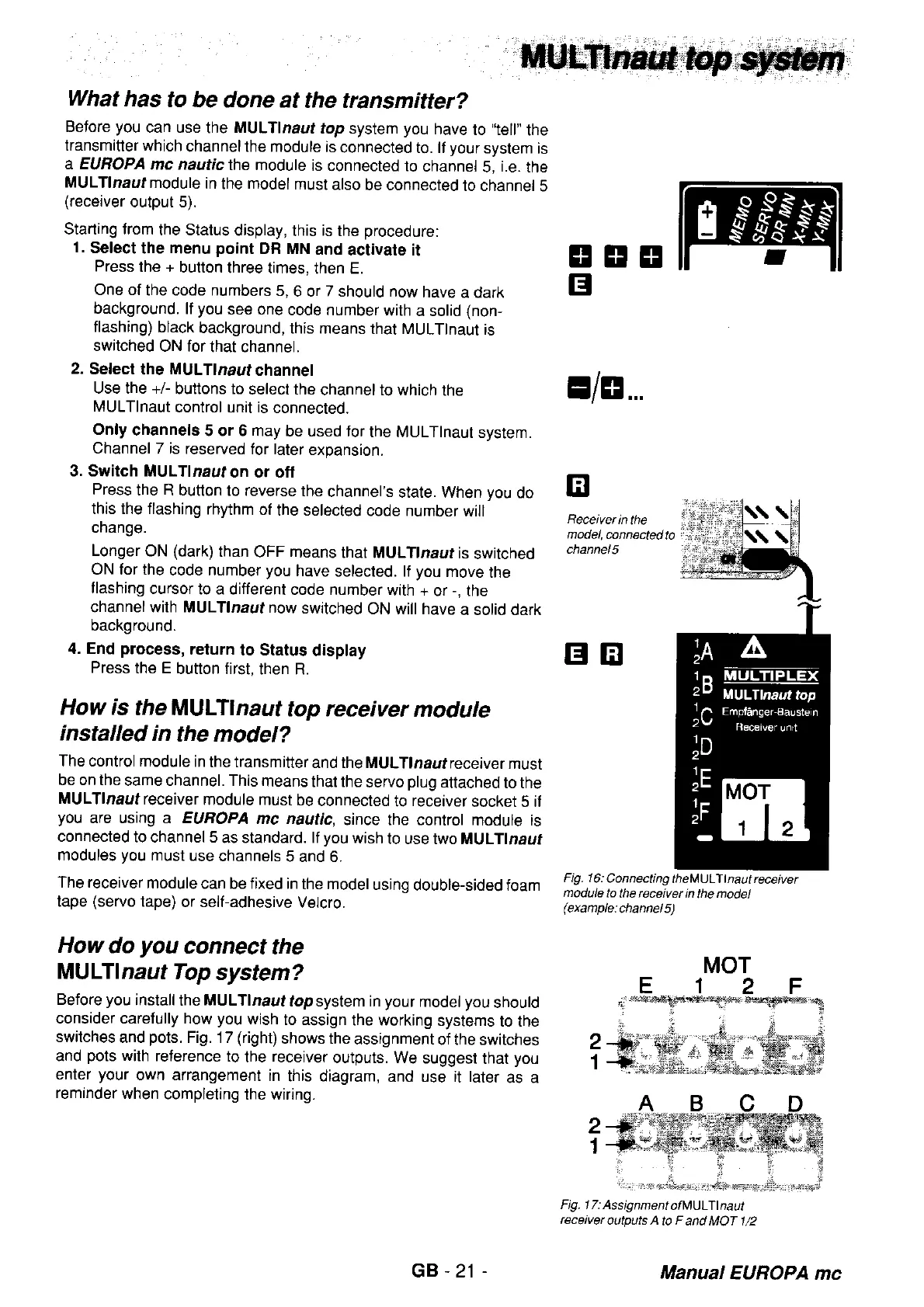

What
has
to
be done at
the transmitter?
Before
you
can use
the
MULTlnaut
top system
you
have
to
,lell"
the
transmitter
which
channelthe module
is
connected to. lf
your
system
is
a EUROPA
mc nautic
lhe module
is
connected to
channel
5,
i.e.
the
MULTlnaul
module
in
the
model
must
also
be connected
to channel
5
(receiver
output 5).
Starting from
the Status
display,
this
is
the
procedure:
1.
Select
the menu
point
DR MN
and
activate it
Press
the +
button
lhree times,
then E.
One of
the code numbers
5,
6 or 7 should now
have
a dark
background.
lf
you
see one
code number
with
a solid
(non-
flashing)
black
background,
this means
that MULTlnaut
is
switched
ON for
that channel.
2.
Select
the
MULTlnaut
channel
Use the +/-
buttons to
select the
channel to which
the
MULTlnaut
control unit is
connected.
Only
channels
5 or 6 may
be used for
the MULTlnaut
system.
Channel 7 is
reserved
tor later
expansion.
3. Switch MULTlnaut
on or oft
Press
the R button
to reverse
the
channel's
state. When
vou oo
this the flashing
rhythm
of
the selected
code number
will
cnange.
Longer
ON
(dark)
than
OFF means
that MULTlnaut
is
switcheo
ON for the
code number
you
have
selected. lf
you
move
the
flashing
cursor
to a different
code number
with +
or
-,
the
channel with MULTlnaut
now
switched
ON will have
a solid oarK
background.
4. End
process,
return
to Status
display
Press
the E
button first,
then R.
How is
täe MULTlnaut
top receiver
module
installed
in
the model?
The control module
in
the transmitter
and the MULTlnaul
receiver
must
be on the
same channel. This
means
that the
servo
plug
attached
to the
MULTlrraut
receiver
module must
be
connected
to
receiver
socket 5 il
you
are using a EUROPA
mc nautic,
since the control
module is
connected
to channel 5
as standard. lf
you
wish
to use two MULTlnauf
modules
you
must
use
channels
5 and 6.
The receiver
module
can be fixed in
the model
using
double-sided foam
tape
(servo
tape)
or self-adhesive
Velcro.
How
do
you
connect
the
MULTInaut
Top
system?
Before
you
install
the
MULTlnaut
lop system in
your
model
you
should
consider carefully how
you
wish
to assign
the working
systems
to the
switches
and
pots.
Fig. 17
(right)
shows the
assignment
of the switches
and
pots
with
reference
to
the
receiver
outputs. We
suggest
that
you
enter
your
own arrangement
in
this diagram,
and use it later
as a
reminder
when
completing
the wiring.
E
B
EIE
E/8...
Receiverinthe
model,
connectedto
channelS
Btr
Fig. 16:
Connecting
theMULflnaut
rcceiver
module
to
the rcceivet in
the
model
(example:
channel5)
Fig. 1 7 : Assignnent
ofl\,lULTlnaut
receiver
outputs A
to
F
and MOT l/2
MOT
GB-21
Manual
EUROPA
mc
