IDENTIFICATION OF CONTROLS

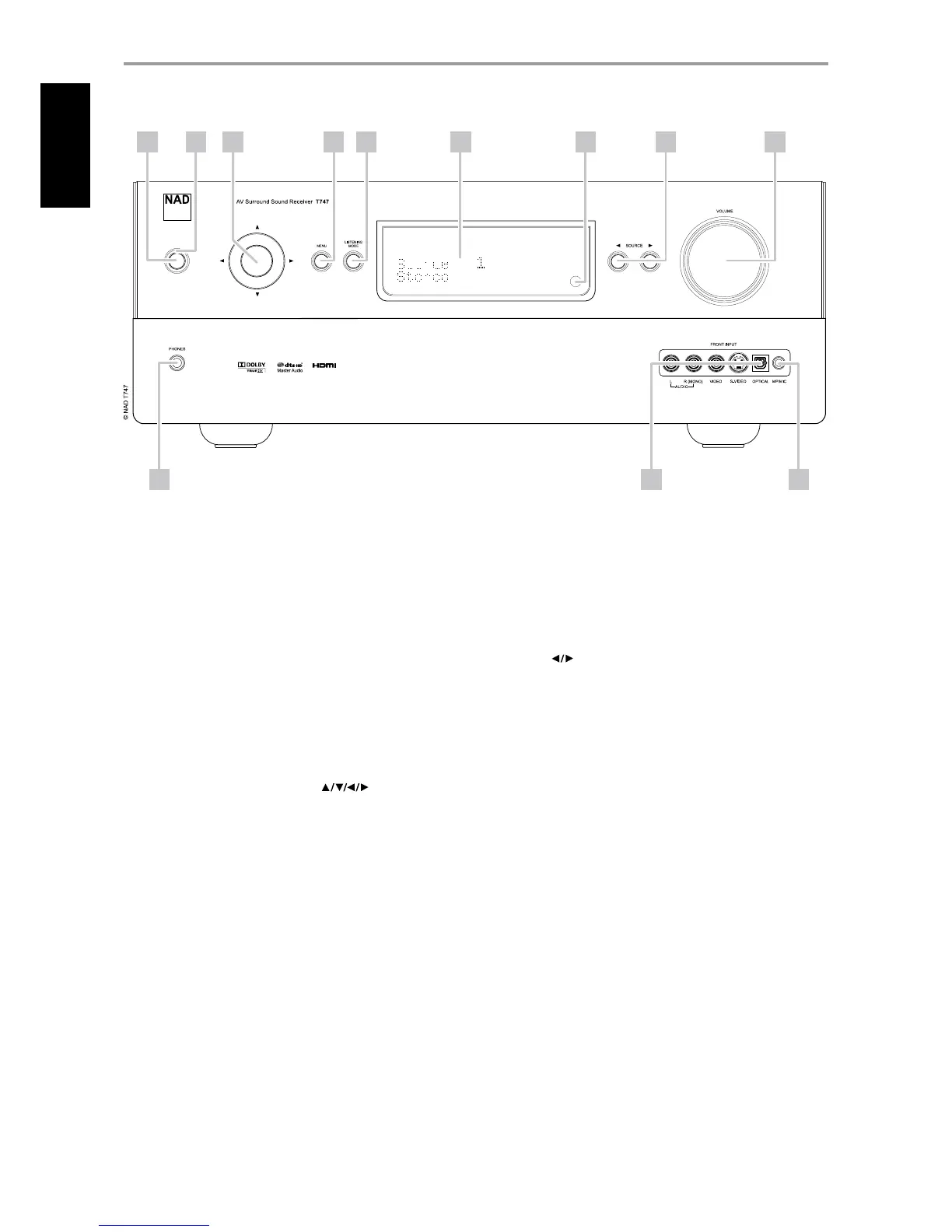

FRONT PANEL
1 POWER BUTTON: Press this button to switch ON the T 747. The Standby
LED indicator will turn from amber to blue and illuminate the VFD. Pressing
the power button again turns the unit back to standby mode.
2 STANDBY LED: This indicator will light up amber when the T 747 is in
standby state. When either the T 747 main zone or Zone 2 is at the ON
state, this indicator will illuminate blue.
3 NAVIGATION and ENTER buttons: These buttons are used to navigate
the T 747 OSD as well as for navigation of DAB (230V version only), XM
(120V version only) tuner functions and iPod. The middle round button
is designated as “ENTER” button; this is normally pressed to complete a
selection, procedure, sequence or other applicable functions.
4 MENU: When listening to DAB (230V version only) or XM (120V version
only) radio, press this button to enable their corresponding digital radio
menu in conjunction with the applicable [ ] and [ENTER] buttons.
5 LISTENING MODE: Toggle to select through the various Listening
mode options. Depending on the format of the currently selected input
(digital or analog, stereo or multichannel), various listening modes are
available. Refer also to the item about LISTENING MODE under the
USING THE T 747 – MAIN MENU segment of the OPERATION section.
6 VACUUM FLUORESCENT DISPLAY (VFD): Displays visual information
about the current settings like the active Source, volume level, listening
mode, audio format, applicable RDS/XM/DAB as well as iPod-related
display information and other related indicators.
7 REMOTE SENSOR: Point the AVR 3 remote control at the remote sensor
and press the buttons. Do not expose the remote sensor of the T 747 to a
strong light source such as direct sunlight or illumination. If you do so, you
may not be able to operate the T 747 with the remote control.
Distance: About 23ft (7m) from the front of the remote sensor.
Angle: About 30° in each direction of the front of the remote sensor.
8 SOURCE [ ] : Press these buttons to toggle through the input
selections – Source 1, Source 2, Source 3, iPod, Source 5, Multi, Front,
MP and Tuner (AM/FM/DAB/XM as applicable). More Sources could
be directly recalled through these buttons upon enabling them at the
Setup Menu. Refer also to the item about SOURCE SETUP under the
USING THE T 747 – SETUP MENU segment of the OPERATION section.
9 VOLUME: Use this control to adjust the volume level of the speakers.
Turn clockwise to increase the volume setting; counter clockwise to
lower it. The VFD shows the setting displayed as increments between
-81 dB and +18 dB. The default volume level is -10dB.
3 4 5 6 7 9
11
1 2
10 12
8
6
