Chapter 2 Installing Compact FieldPoint Hardware and Software
cFP-20xx and cFP-BP-x User Manual 2-14 ni.com

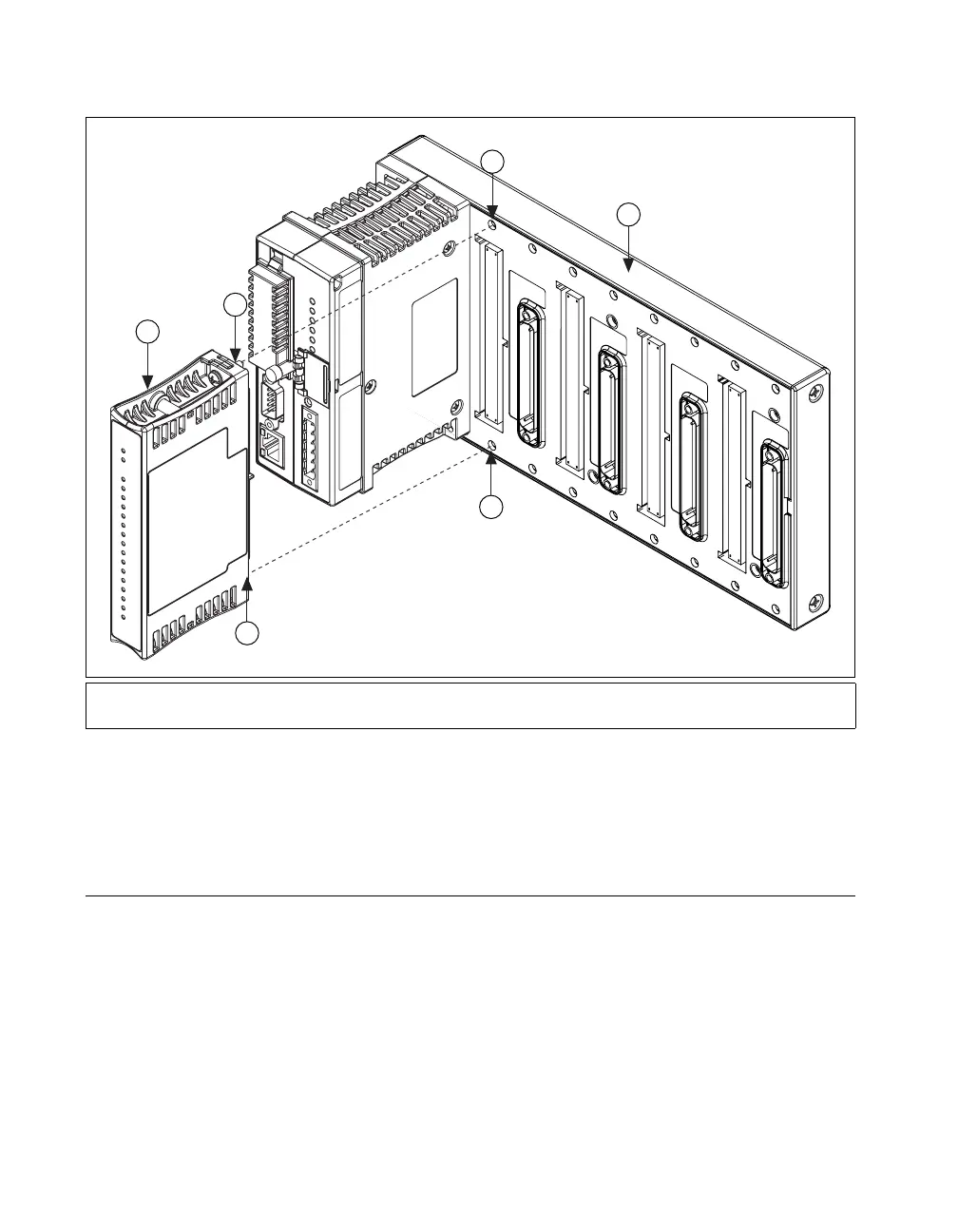

Figure 2-13. Installing an I/O Module on the Backplane (cFP-BP-4 Shown)
4. Repeat this procedure to install additional I/O modules on the
backplane.
Connecting to Field Devices
Use cFP-CB-x connector blocks or Compact FieldPoint cabling accessories
to connect the I/O modules to field devices. Refer to the operating
instructions for the I/O modules, connector blocks, and cabling accessories.
1 cFP I/O Module
2 Captive Screws
3Screw Holes
4 cFP-BP-4 Backplane
2
4
3
3
1
2
