National Instruments PXI-6683 Series User Manual

© National Instruments | 3-3
NI PXI-6683 Series User Manual
NI PXI-6683 Series Front Panel

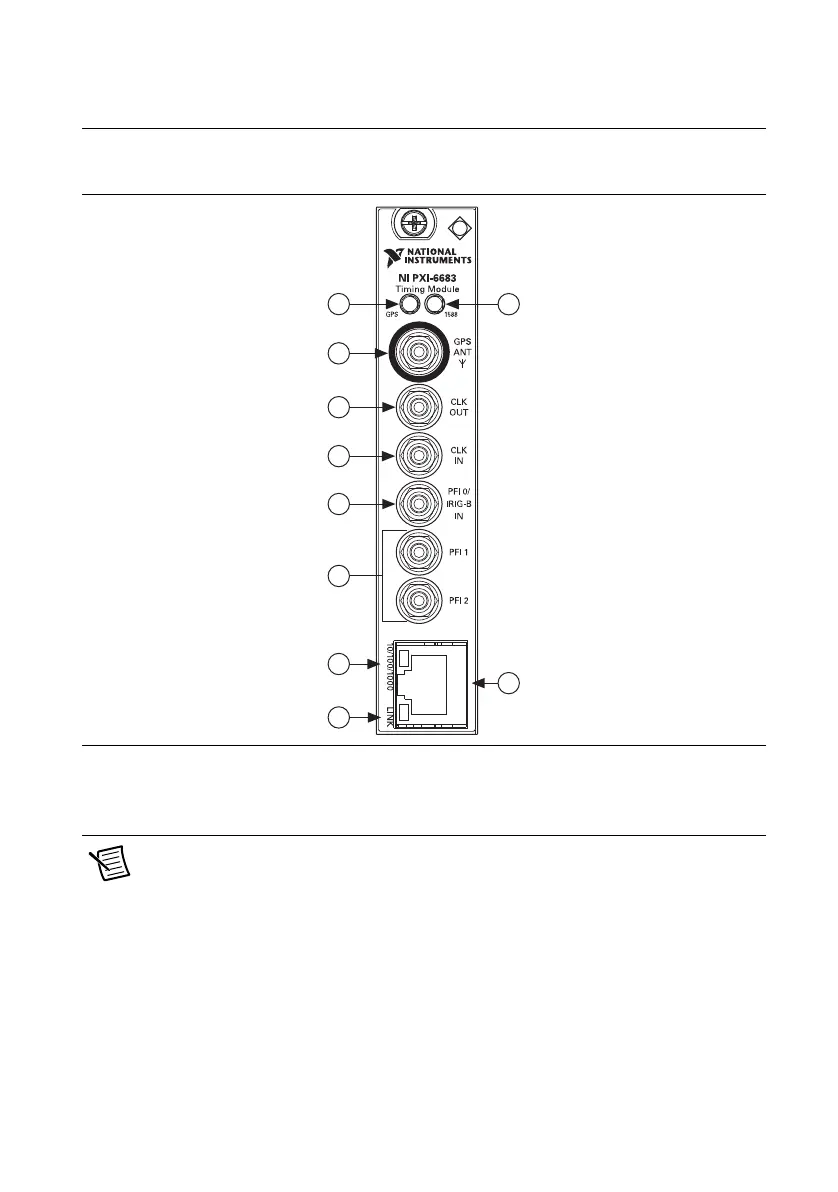

Figure 3-3 shows the connectors and LEDs on the front panel of the NI PXI-6683 Series.
Figure 3-3. NI PXI-6683 Front Panel
Note The NI PXI-6683H does not have the CLKIN connector, shown as item 5 in
Figure 3-3.
1GPS LED
2 1588 LED
3 GPS Antenna Connector
4 CLKOUT Connector
5 CLKIN Connector
6 PFI0/IRIG-B Input Connector
7 PFI<1..2> Connectors
8 Ethernet Speed LED
9 Ethernet ACT/LINK LED
10 RJ-45 Ethernet Connector
8
9
10
7
6
1
2
3
4
5
