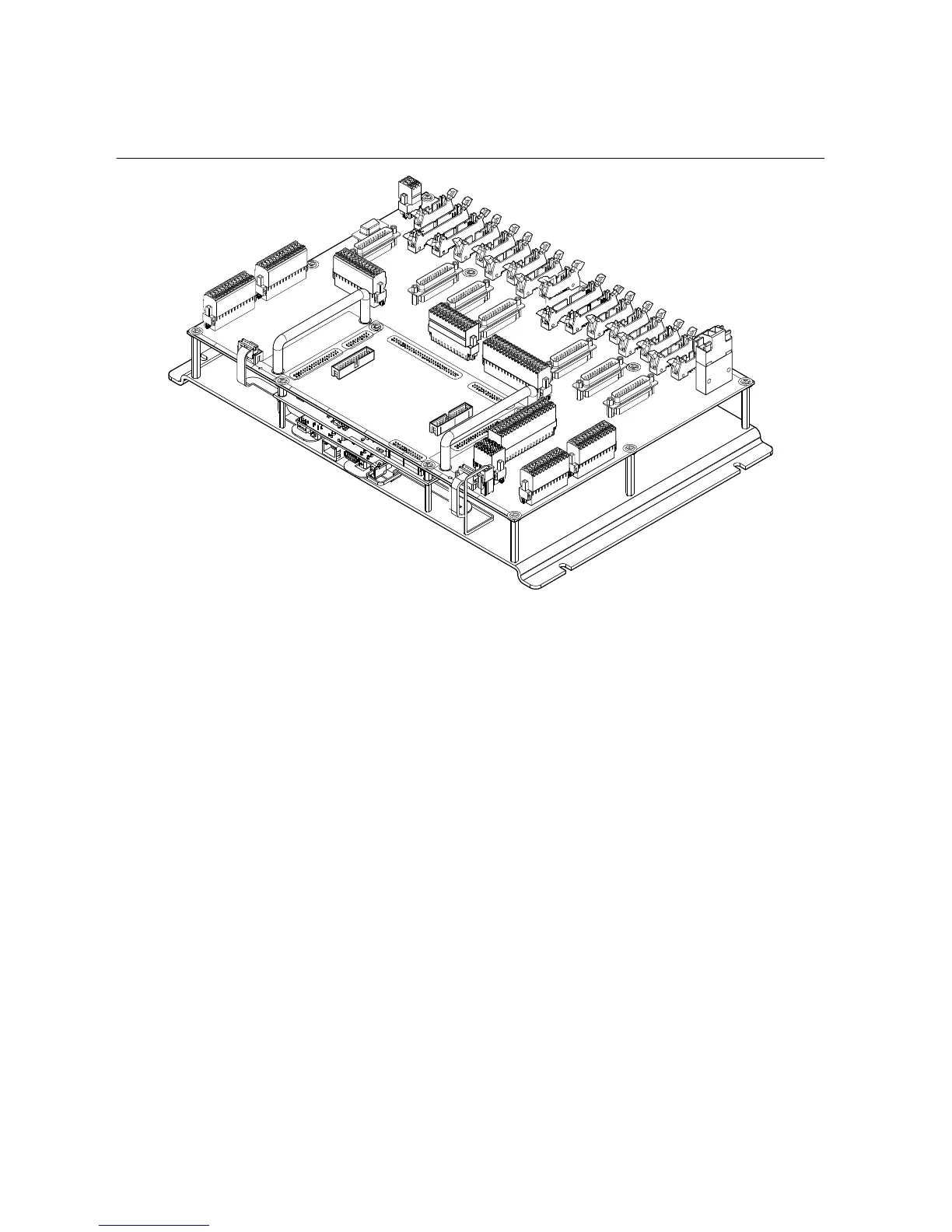

The following figure shows the completed assembly of the sbRIO-9607 controller,
sbRIO-9683 or sbRIO-9684 mezzanine board, and the sbRIO-9687 GPIC universal
interface board.
Figure 8. Complete Assembly
Surface Mounting Dimensions
The following figures depict the mounting dimensions for the sbRIO-9687.
sbRIO-9687 Getting Started Guide | © National Instruments | 11
