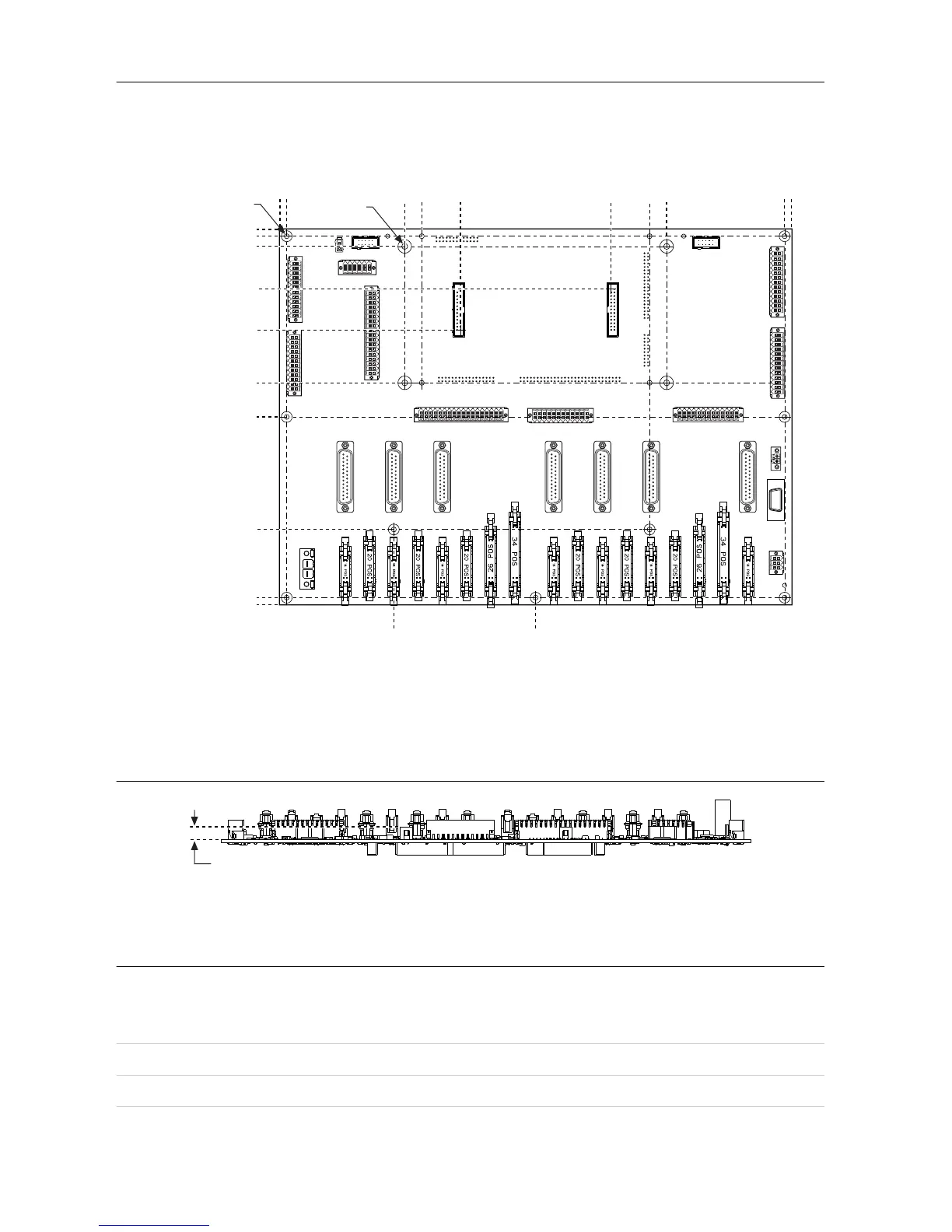

Figure 2. Primary Side Dimensions, Millimeters (Inches)
4X Ø 4.37 mm
(0.172 in.)
20.83 mm (0.820 in.)
84.84 mm (3.340 in.)
0.0 mm (0.00 in.)
13X Ø 3.68 mm (0.145 in.)
5.08 mm (0.200 in.)
7.62 mm (0.300 in.)
39.37 mm (1.550 in.)
69.85 mm (2.750 in.)
109.22 mm (4.300 in.)
134.62 mm (5.300 in.)
218.44 mm (8.600 in.)
269.24 mm (10.600 in.)
274.32 mm (10.800 in.)
105.66 mm (4.160 in.) 100.58 mm (3.960 in.) 12.7 mm (0.500 in.) 0.0 mm (0.00 in.) 28.85 mm (1.136 in.) 140.82 mm (5.544 in.) 169.67 mm (6.680 in.)
182.37 mm (7.180 in.) 270.26 mm (10.640 in.) 275.34 mm (10.840 in.)
Figure 3. Height of Expansion Board Connectors, Millimeters (Inches)
9.1 mm (0.358 in.)
Power
Input voltage (+24 V)
Typical +24 V
Maximum +28.8 V
Minimum +19.2 V
