ControlSync icon

ControlSync

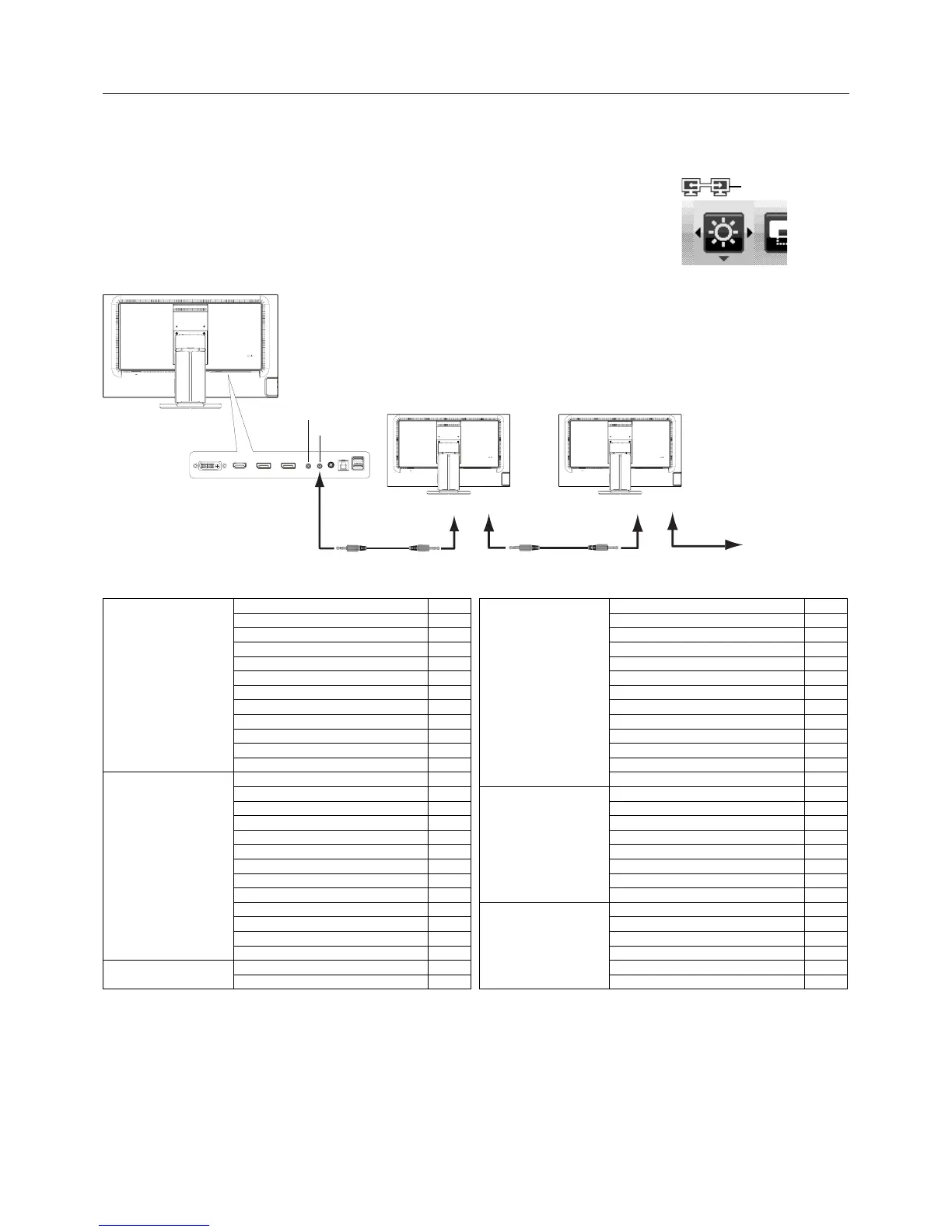

1. Connect the master monitor with a sub monitor via a ControlSync cable (ø 2.5) into ControlSync IN/OUT.

2. Follow the steps of DATA COPY. When the setting of the master monitor is adjusted, it will be copied and sent to the

connected sub monitor(s) automatically.

3. Up to 5 sub monitors can be daisy-chained via ControlSync.

NOTE: Connect the master monitor via ControlSync OUT connector.

The ControlSync icon will appear on the upper left of the OSD menu in the sub monitor.

Do not connect IN-IN or OUT-OUT.

Do not make “loop” connection.

Once the monitors are connected, turn the master monitor’s power key off and on

to check if ControlSync operates correctly.

IN (Gray)

Next monitor

OUT (Black)

IN OUT IN OUT

ControlSync cable ControlSync cable

Up to 5 sub monitors

(Gray)(Black) (Gray)(Black)

Sub Monitor 1 Sub Monitor 2

Master Monitor

The following settings can be controlled by ControlSync:

ECO TOOLS BRIGHTNESS* Yes

CONTRAST No

ECO MODE Yes

AUTO BRIGHTNESS Yes

BLACK LEVEL No

OFF MODE SETTING Yes

OFF MODE SENSOR SETTING Yes

OFF MODE START TIME Yes

HUMAN SENSING Yes

HUMAN SENSOR SETTING Yes

HUMAN SENSOR START TIME Yes

DV MODE Yes

SCREEN AUTO ADJUST No

AUTO CONTRAST No

LEFT/RIGHT No

DOWN/UP No

H.SIZE No

FINE No

INPUT RESOLUTION No

H.RESOLUTION No

V.RESOLUTION No

VIDEO LEVEL No

OVER SCAN No

EXPANSION Yes

UNIFORMITY No

COLOR Color Control System Yes

R, G, B, color gain No

TOOLS VOLUME Yes

SOUND INPUT No

VIDEO DETECT No

DP OUT MULTISTREAM No

MULTI PICTURE No

PICTURE PATTERN No

RESPONSE IMPROVE No

OFF TIMER Yes

POWER SAVE TIMER No

LED BRIGHTNESS Yes

DDC/CI Yes

USB POWER No

FACTORY PRESET No

MENU TOOLS LANGUAGE Yes

OSD TURN OFF Yes

OSD LOCK OUT Yes

HOT KEY Yes

SIGNAL INFORMATION Yes

SENSOR INFORMATION Yes

KEY GUIDE Yes

CUSTOMIZE SETTING No

ECO INFORMATION CARBON SAVINGS No

CARBON USAGE No

COST SAVINGS No

CARBON CONVERT SETTING Yes

CURRENCY SETTING Yes

CURRENCY CONVERT SETTING Yes

Other settings:

Power Control (DC switch)

Ambient Light Sensor

Human Sensor Result

Audio Mute

NOTE: Only the master monitor’s human sensor and ambient light sensor are active. Please do not cover these sensors.

Turn the monitor’s power off before connecting/disconnecting the ControlSync cable.

Do not use the ControlSync connectors for any purpose other than speciﬁ ed.

* This value is not a directly adjusted output value. This is adjusted relatively.
