PowerRouter • Solar Inverter • User Manual 5 Operation - check settings
11
EN
5 Operation - check settings

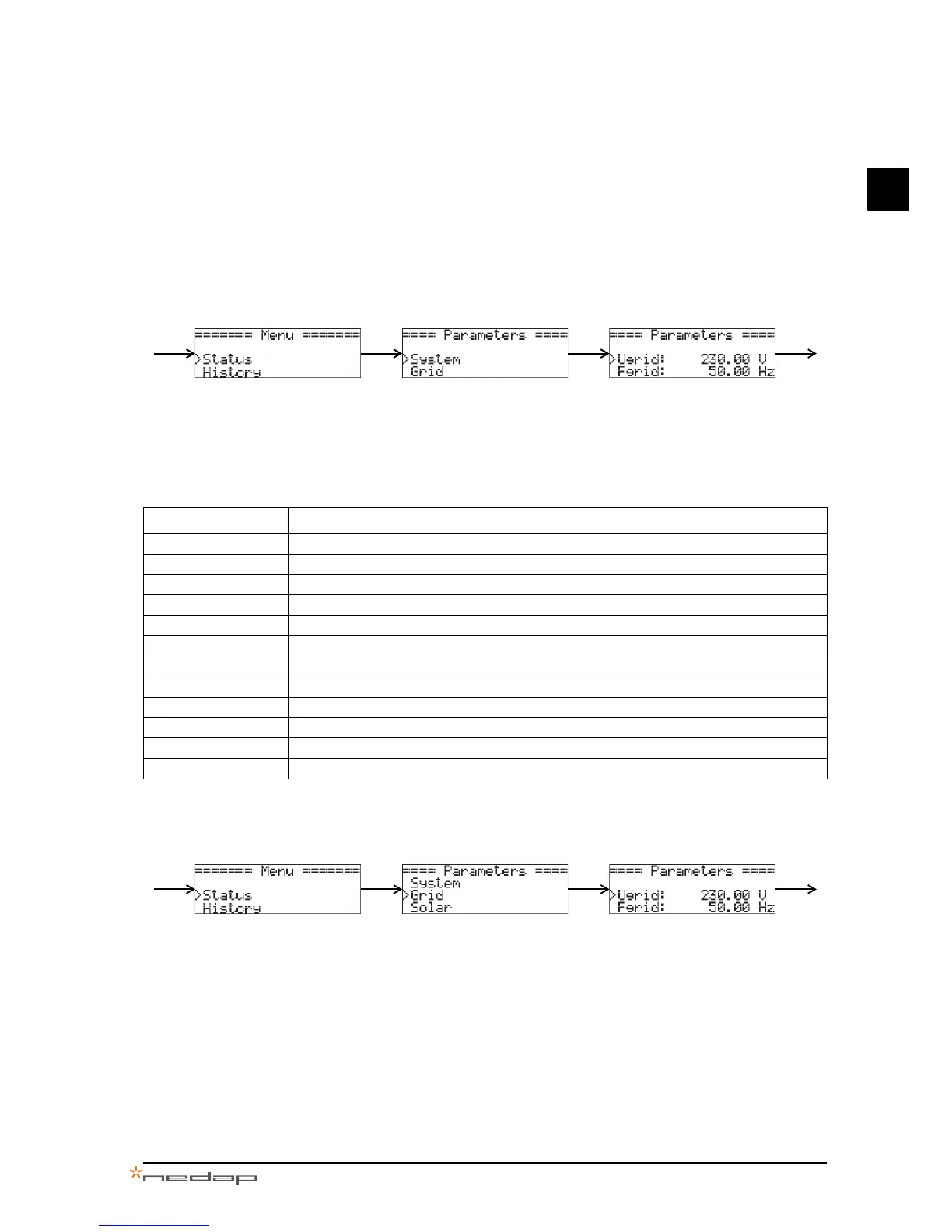

5.1 Check the status of the system parameters
1. Press yes, and use up/down to select Status.
2. Press yes, and use up/down to select System.
3. Press yes, and use up/down to navigate through the parameters.
4. When finished, press no several times to return to the to the status display.
5.2 Check the status of the grid parameters
1. Press yes, and use up/down to select Status.
2. Press yes, and use up/down to select Grid.
3. Press yes, and use up/down to navigate through the parameters.
4. When finished, press no several times to return to the to the status display.
Parameter Description
Ugrid Grid voltage [xxx,xx V]
Fgrid Grid frequency [xx,xx Hz]
Pgrid Grid power [+/- xxxx W]
Plocal Load connected to the local out of the PowerRouter [ xxxx W]
Qgrid The amount of reactive power from or to the grid [+/- xxxx W]
Cos ( ) Cos ( ) of the Grid [0.90 -1.00]
Ustr1 Voltage of solar string input 1 [100V-600V]
Istr1 Current of solar string input 1 [0A-15A]
Ustr2 Voltage of solar string input 2 [100V-600V]
Istr2 Current of solar string input 2 [0A-15A]
Psolar Total power of String 1 + 2 [xxxx W]
Internet Internet connection [OK / error / 30s-0s]
1234
ϕ
ϕ
1234
