Wireless Cable Gateway CG3000D/CG3100D User Manual
5-2 Customizing Your Network
v1.0, September 2009
To set up a DMZ host:

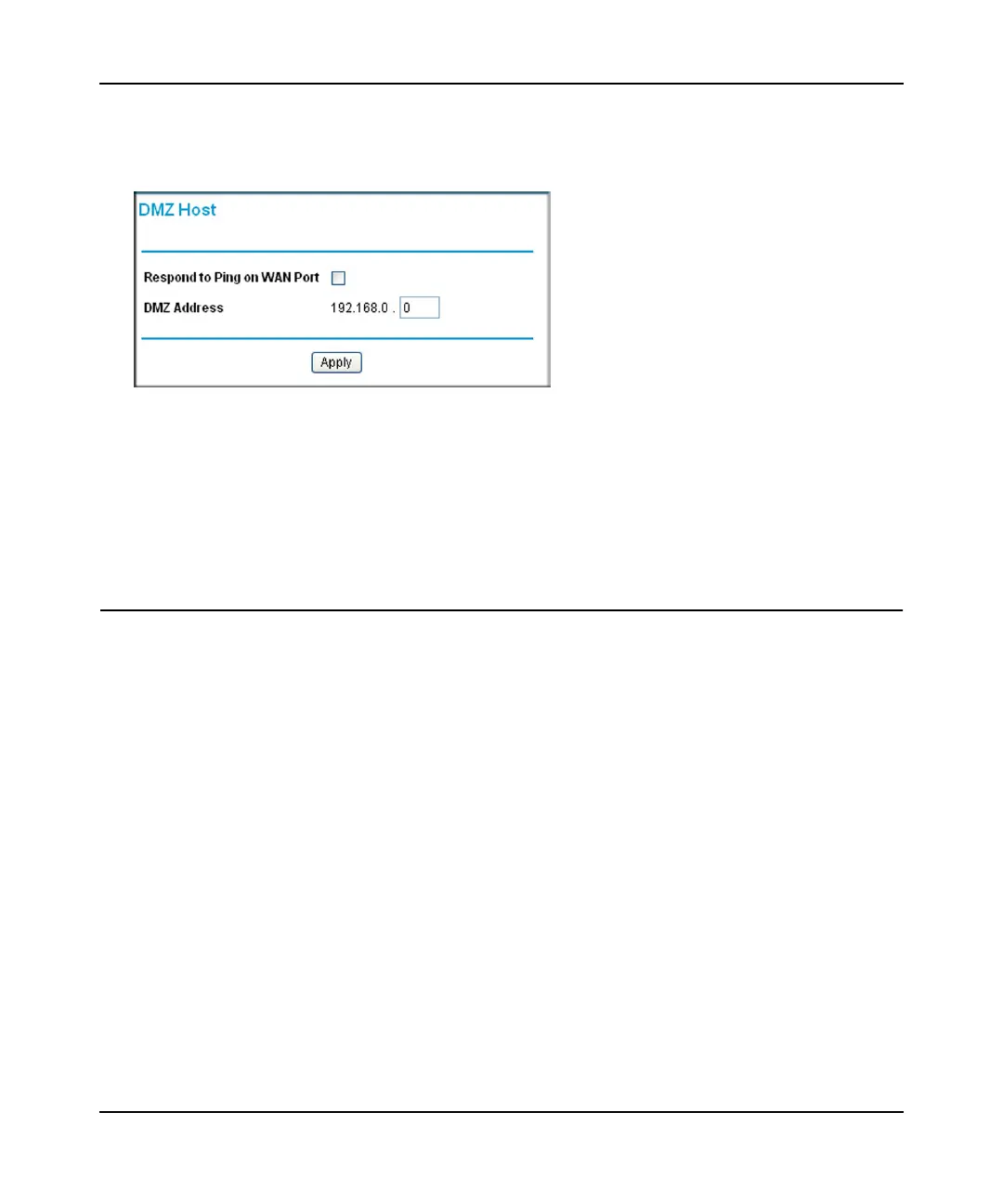

1. In the main menu, under Advanced, select DMZ Host. The following screen displays:
Figure 5-1
2. If desired, select the Respond to Ping on WAN Port check box.
3. Type the last digit(s) of the IP address in the DMZ Address field.
4. Click Apply.
LAN IP Setup
The LAN IP screen allows you to configure LAN services such as the IP address of the gateway
and DHCP. The TCP/IP and DHCP default values work fine in most cases.
