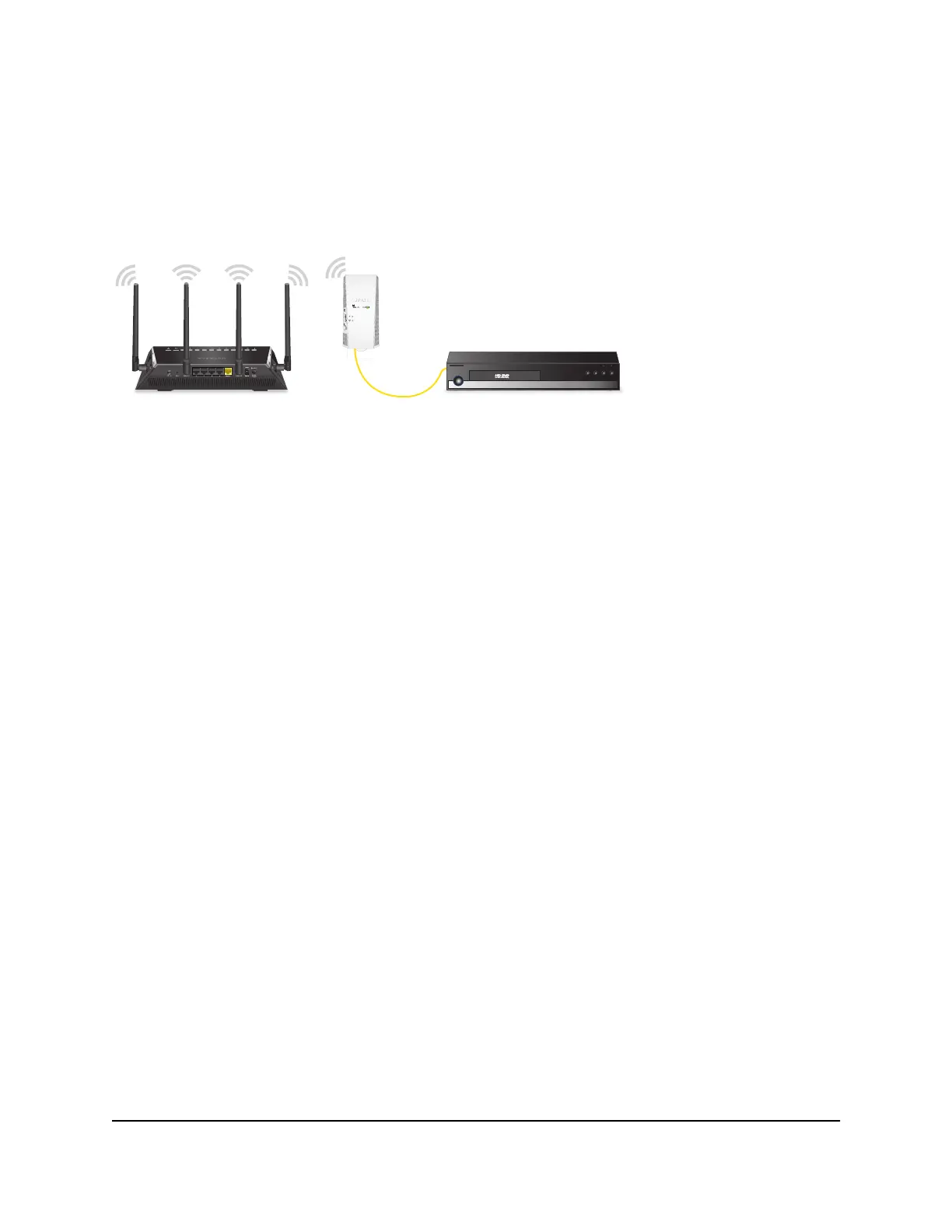

Connect an Ethernet-enabled device to the extender
After the extender is connected to your existing WiFi network, you can connect a wired
device to the extender using an Ethernet cable.
ON/STANDBY
OPEN?CLOSE PLAY STOP
P-SCAN
POWER
DVD PLAYER
PROGRESSIVE SCAN
Figure 4. Ethernet LAN port
Connect a device to the extender network using WPS
For help with the WPS button on your WPS-enabled device, check the instructions or
online help that came with that device. Some older equipment cannot use WPS.
To connect to the extender using a WPS connection:
1.
Press the WPS button on the extender.
The WPS LED blinks white.
2.
Within two minutes, press the WPS button on your WPS-enabled device.
If your WPS enabled device successfully connects to extender, the WiFi connection
manager on your device will show connection status.
User Manual18Get started
AC2200 Nighthawk X4 X4 WiFi Mesh Extender
