Side and bottom panels
A switch and buttons are located on the side panel. An Ethernet port is located on the
bottom panel.

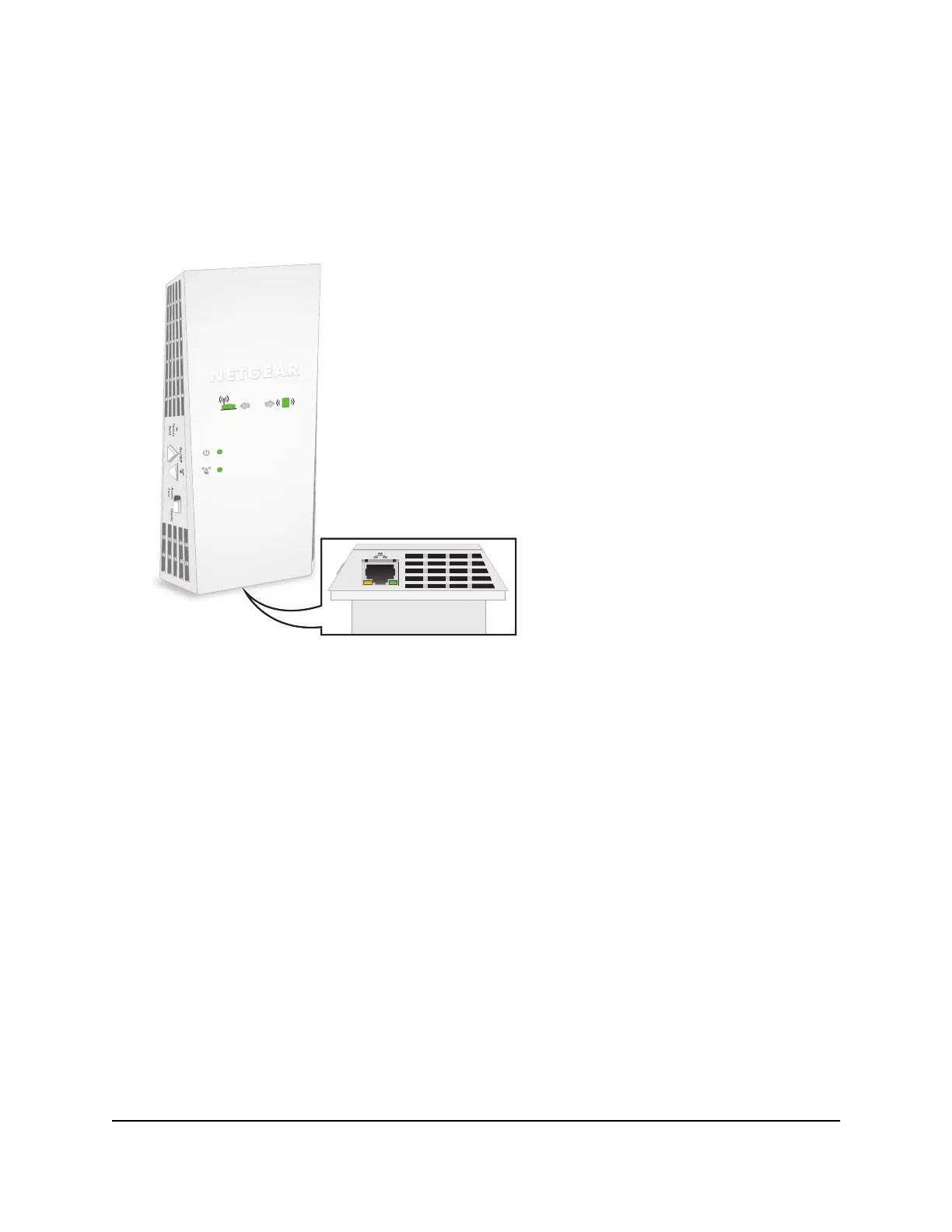

Figure 2. Side and bottom panel
The side panel contains the following components:
•
Factory Reset button. Pressing this button resets the extender. If the Factory Reset
button is pressed for at least seven seconds, the Power LED blinks amber, and the
extender returns to its factory settings.
•
Power On/Off button. Press the Power On/Off button to provide power to the
extender. The Power LED lights green when the extender is ready.
•
WPS button. Use this button to connect WPS-enabled devices to the extender.
•
Access Point/Extender switch. Use this switch to set your extender in access point
mode or extender mode. To use your extender in access point mode, set the switch
to Access Point. To use your extender in extender mode, set the switch to Extender.
•
Ethernet port. Use an Ethernet cable to connect a router or Ethernet-enabled device
to the Ethernet port on the extender.
User Manual8Overview
