SECTION 1 - GENERAL INFORMATION
1-4
Model 615 Above PIN 669635

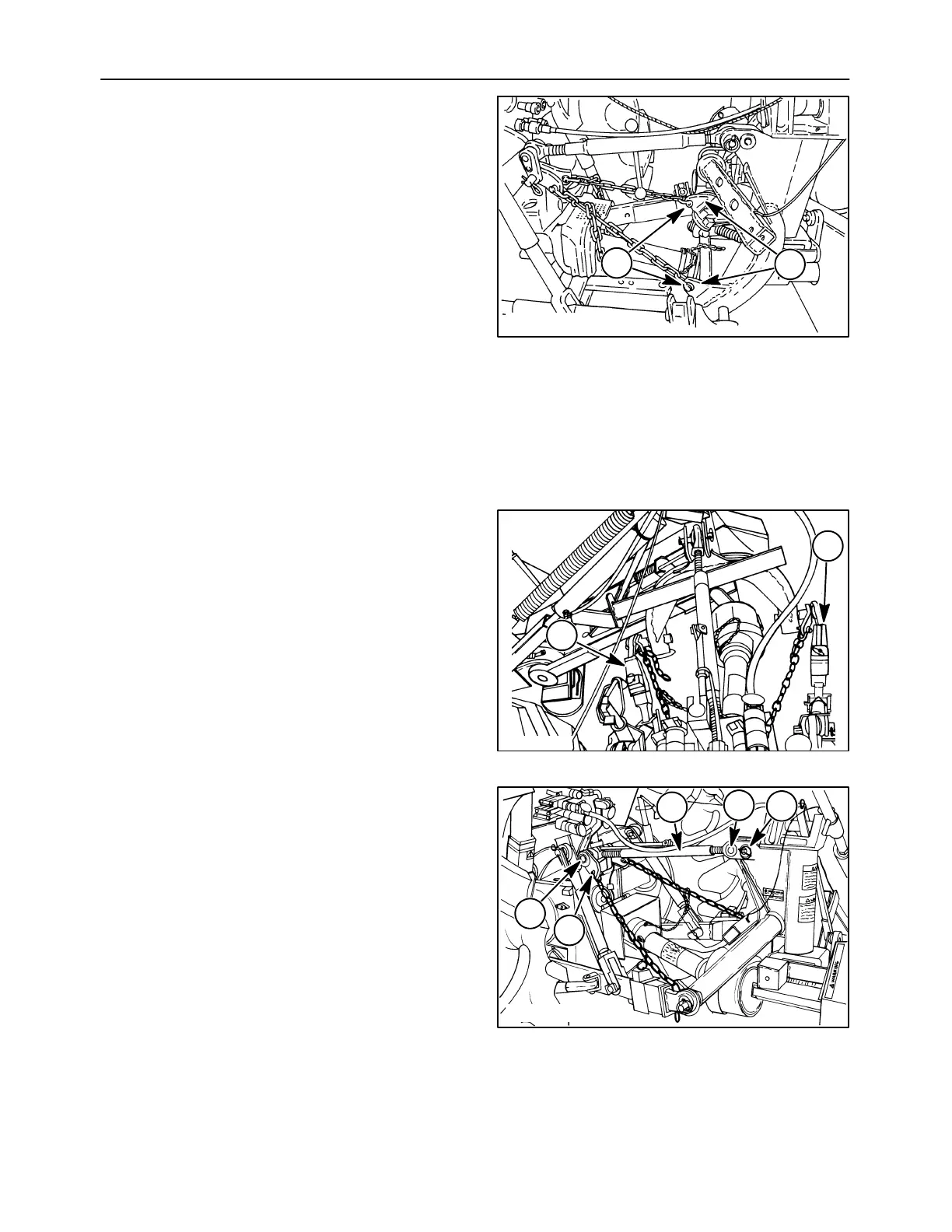

• Attach a clevis, 1, to one end of the limit chain.
Attach the clevis with a 1/2″ x2″ clevis pin to the
limit chain tab, 2, on each arm of the hitch.
Secureeachclevispinwitha1/8″ x1″ cotter pin.
20022137
1
2
3
Connect the Mower to the Tractor’s Three-point
Hitch
1. Level the tractor’s 3-point hitch lift arms.
IMPORTANT: On tractors with Category II lift links,
install the Category II bushings that were included
with the mower onto the hitch pins.
2. Back the tractor to the mower and attach the
lower links, 1, to the mower frame hitch pins.
Secure the links with linchpins installed from the
top.
19986821
1
1
4
3. Attach the top link, 1, to the tractor’s upper
hookup bracket, 2, using the pin provided with
the tractor top link.
4. Attach the other end of the top link to the mower
hookup bracket, 3, in the front hole using the pin
provided with the disc mower.
5. Attach the limit chain plates to the tractor at the
top link mounting position, 4, with the pin
provided. The length of the limit chain will be
adjusted in later steps to set the minimum height
above ground of the hitch.
NOTE: The top link can be mounted in the rear hole,
5, on the mower to allow for greater top link length
range.
19986828
2
1
4
3
5
5
