6-1
SECTION 6
OPTIONAL EQUIPMENT
Optional parts can be ordered through your
authorized dealer.
RIGHT SWATHBOARD KIT
NOTE: It may be necessary to remove the
swathboards in some extreme crop conditions to
prevent crop wrappage on the end drum.

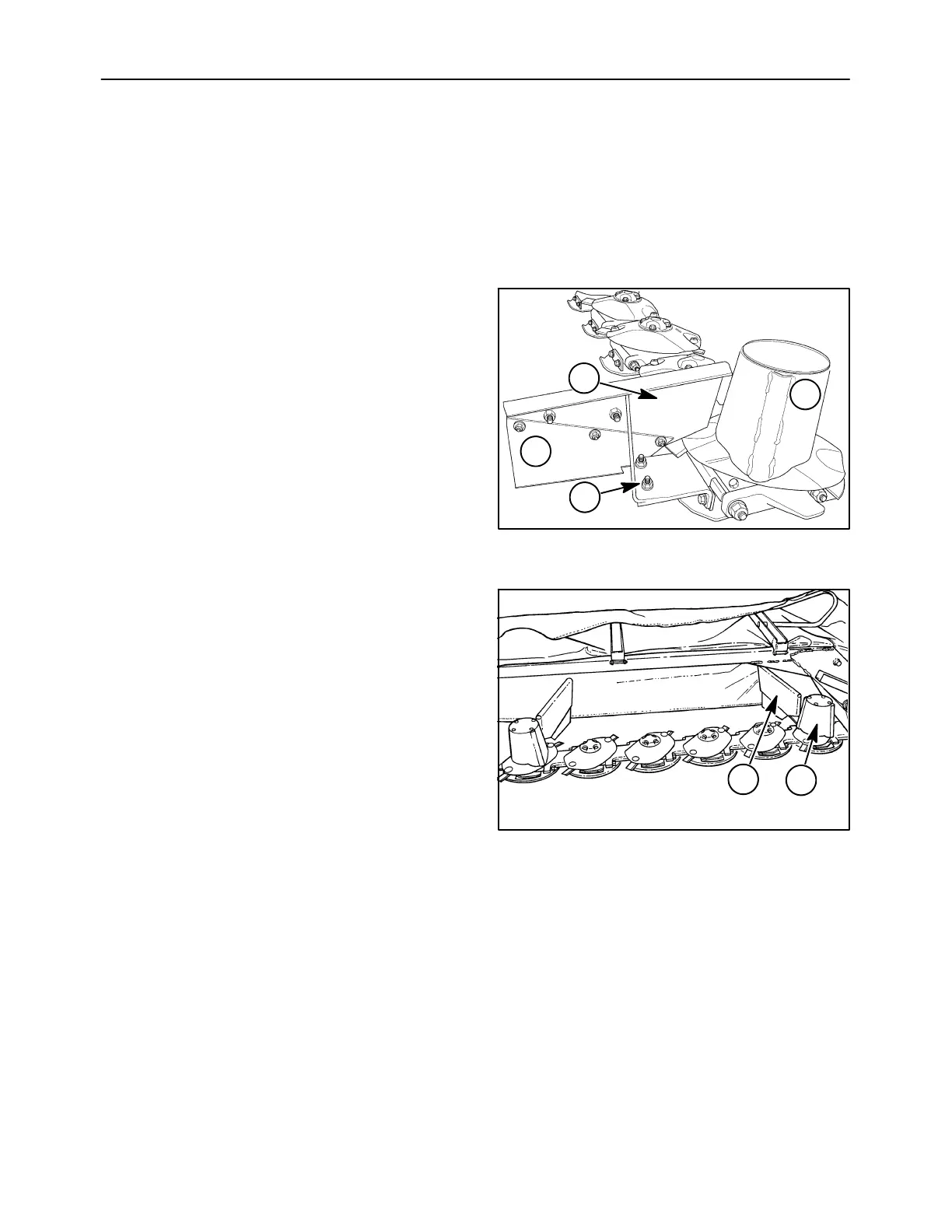

The right swathboard kit consists of a support leg, 1,
that mounts to the mount plate, a swathboard, 2, and
a plastic flap, 3, that mounts behind the end tower, 4.
The swathboard moves the crop inward to the right
side, providing a narrowed swath, and may make it
possible for the tractor to straddle the cut crop. The
swath size is not adjustable.
10004255
2
3
4
1
1
LEFT SWATHBOARD KIT
The left swathboard kit consists of a drum, 1, that
installs on the No. 1 disc and a swathboard, 2, that
mounts behind the No. 1 disc and drum. This moves
the crop inward on the left side, providing a narrowed
swath effect, and may make it possible for the tractor
to straddle the cut crop. The swath size is not
adjustable.
The swathboard clearance to the end drum flighting
should be checked and adjusted, if necessary,
anytime the knives are turned or replaced, or if crop
wrappage is occurring.
A3680-27
1
2
2
