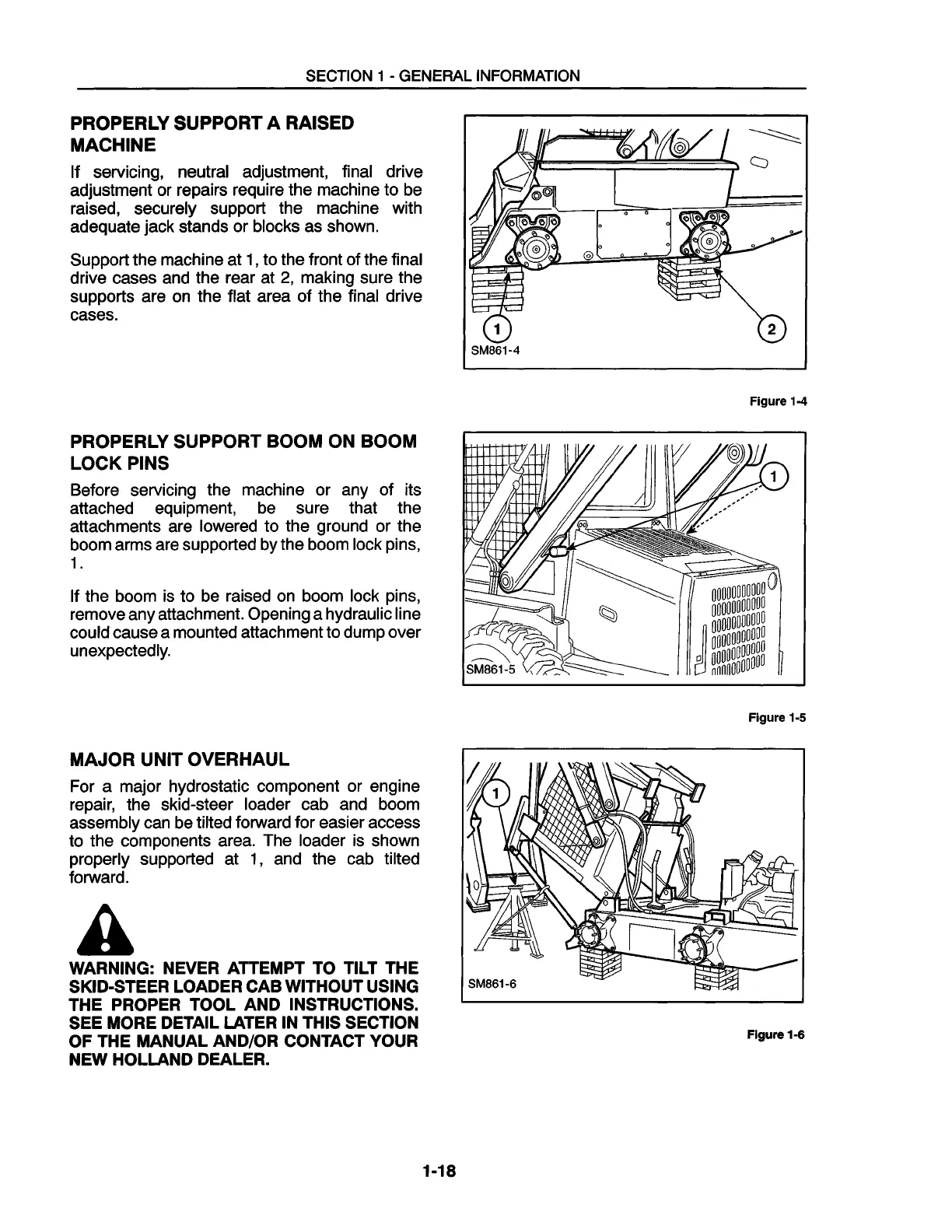

SECTION 1 - GENERAL INFORMATION
PROPERLY SUPPORT A RAISED
MACHINE
If servicing, neutral adjustment, final drive
adjustment
or
repairs require the machine to
be
raised, securely support the machine with
adequate jack stands or blocks as shown.
Support the machine at
1,
to the front of the final
drive cases
and
the rear at
2,
making sure the
supports are
on
the flat area of the final drive
cases.
PROPERLY SUPPORT BOOM ON BOOM
LOCK PINS
Before servicing the machine or any of its
attached equipment,
be
sure that the
attachments are lowered to the ground or the
boom arms are supported
by
the boom lock pins,
1.
If the boom
is
to
be
raised
on
boom lock pins,
remove any attachment. Opening a hydraulic line
could cause a mounted attachment to dump over
unexpectedly.
MAJOR UNIT OVERHAUL
For a major hydrostatic component or engine
repair, the skid-steer loader cab
and
boom
assembly
can
be
tilted forward for easier access
to the components area. The loader
is
shown
properly supported at 1 , and the cab tilted
forward.
A
WARNING: NEVER ATTEMPT TO TILT THE
SKID-STEER LOADER CAB WITHOUT USING
THE PROPER TOOL AND INSTRUCTIONS.
SEE MORE DETAIL LATER
IN
THIS SECTION
OF THE MANUAL AND/OR CONTACT YOUR
NEW HOLLAND DEALER.
SM861-4
1-18
~
C:J
2
Figure 1-4
Figure 1-5
Figure 1-6
