SECTION 1 - GENERAL INFORMATION
ADAPTING ATTACHMENTS REQUIRING
12V
ELECTRICAL POWER
There are important rules that must
be
followed
when adapting attachments that require 12 volt
electrical power. Proper wiring of electrical
devices and power and ground connections is
very
important to prevent other electrical
component damage. Attaching electrical
connections to locations other than
recommended may allow electric current to feed
back through the EiC board, creating false EiC
board readings and warnings, or causing EiC
board damage or failure.
1.
ALWAYS
FOLLOW the instructions for New
Holland kit installation to ensure proper
function and operation.
2.
NEVER CONNECT
an
electrical device to
any wires, fuses, switches or grounds inside
the cab area. This includes any terminals of
the ignition switch, fuse panel, or ground
terminal.
3.
NEVER INSTALL
an
electrical device, music
radio, two-way radio, or unapproved New
Holland attachment into the cab area.
4.
ONLY USE the 12-volt accessory power
outlet for attachments requiring less than 1
O
amps. The accessory outlet
is
connected to
the engine fuse/relay panel and protected
with a 15 amp fuse.
5.
ALWAYS
CONNECT new electrical
attachments to the engine fuse/relay panel,
1,
and connect the grounds to the engine bell
housing. USE ONLYvacant connections
and
fuses not
in
use for specified attachments.
6.
PLEASE REFER to Service Bulletin
11
/95-14
for more detailed information about higher
amperage requirements and making
electrical connections.
1-29

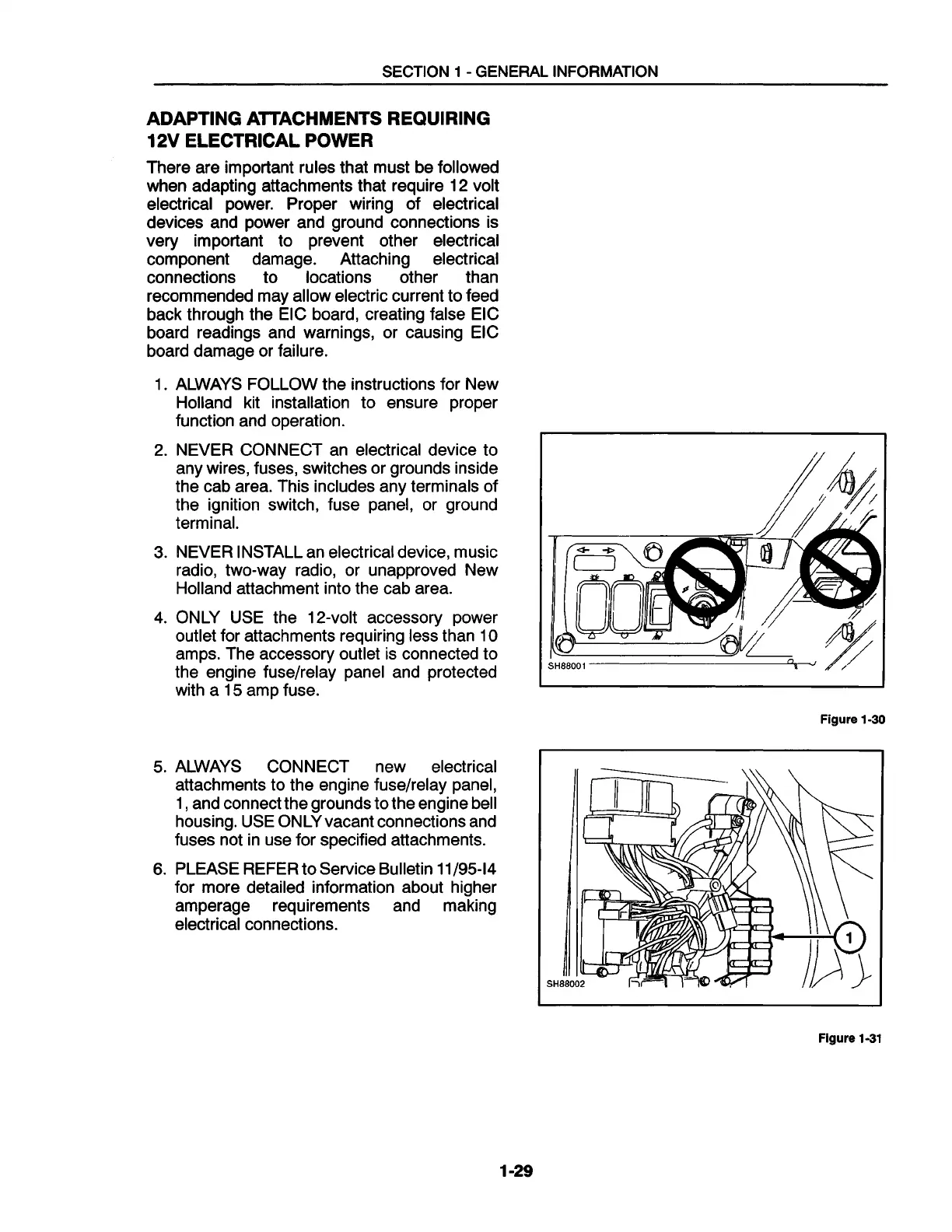

Figure 1-30
Figure
1-31
