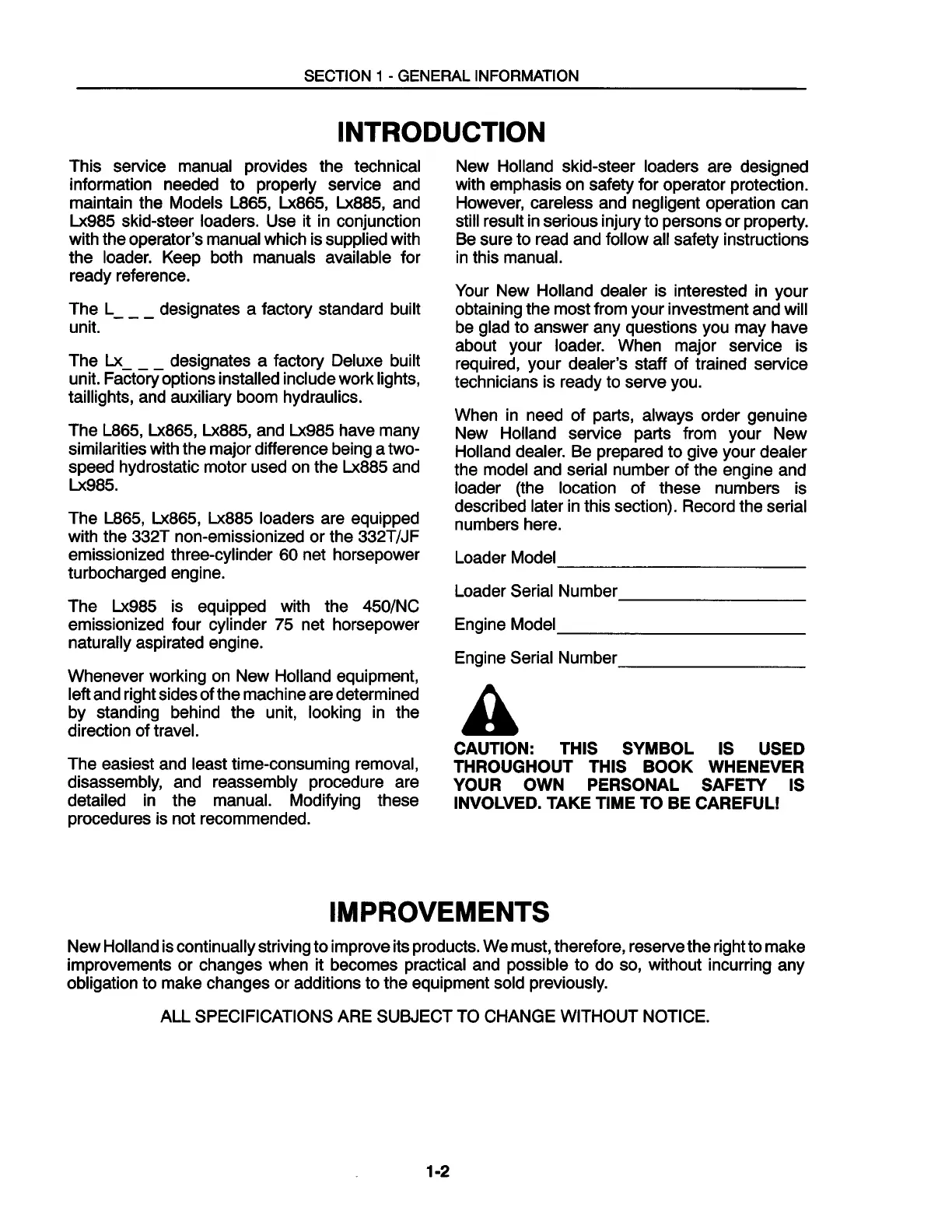

SECTION 1 - GENERAL INFORMATION
INTRODUCTION
This service manual provides the technical
information needed to properly service and
maintain the Models L865, Lx865, Lx885, and
Lx985 skid-steer loaders. Use it
in
conjunction
with the operator's manual which is supplied with
the loader. Keep both manuals available for
ready reference.
The L
___
designates a factory standard built
unit.
The Lx
___
designates a factory Deluxe built
unit. Factory options installed include work lights,
taillights, and auxiliary boom hydraulics.
The L865, Lx865, Lx885, and Lx985 have many
similarities with the major difference being a two-
speed hydrostatic motor used
on
the Lx885 and
Lx985.
The L865, Lx865, Lx885 loaders are equipped
with the 332T non-emissionized or the 332T/JF
emissionized three-cylinder 60 net horsepower
turbocharged engine.
The Lx985 is equipped with the 450/NC
emissionized four cylinder 75 net horsepower
naturally aspirated engine.
Whenever working on New Holland equipment,
left and right sides of the machine are determined
by standing behind the unit, looking
in
the
direction of travel.
The easiest and least time-consuming removal,
disassembly, and reassembly procedure are
detailed
in
the manual. Modifying these
procedures is not recommended.
New Holland skid-steer loaders are designed
with emphasis on safety for operator protection.
However, careless and negligent operation can
still result
in
serious injury to persons or property.
Be sure to read and follow all safety instructions
in
this manual.
Your New Holland dealer is interested
in
your
obtaining the most from your investment and will
be
glad to answer any questions you may have
about your loader. When major service is
required, your dealer's staff of trained service
technicians is ready to serve you.
When
in
need of parts, always order genuine
New Holland service parts from your New
Holland dealer. Be prepared to give your dealer
the model and serial number of the engine and
loader (the location of these numbers is
described later
in
this section). Record the serial
numbers here.
Loader Model
------------
Loader Serial Number
---------
Engine Model
------------
Engine Serial Number
________
_
A
CAUTION: THIS SYMBOL IS USED
THROUGHOUT THIS BOOK WHENEVER
YOUR OWN PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO
BE
CAREFUL!
IMPROVEMENTS
New Holland is continually striving to improve its products. We must, therefore, reserve the rightto make
improvements or changes when it becomes practical and possible to do so, without incurring any
obligation to make changes or additions to the equipment sold previously.
