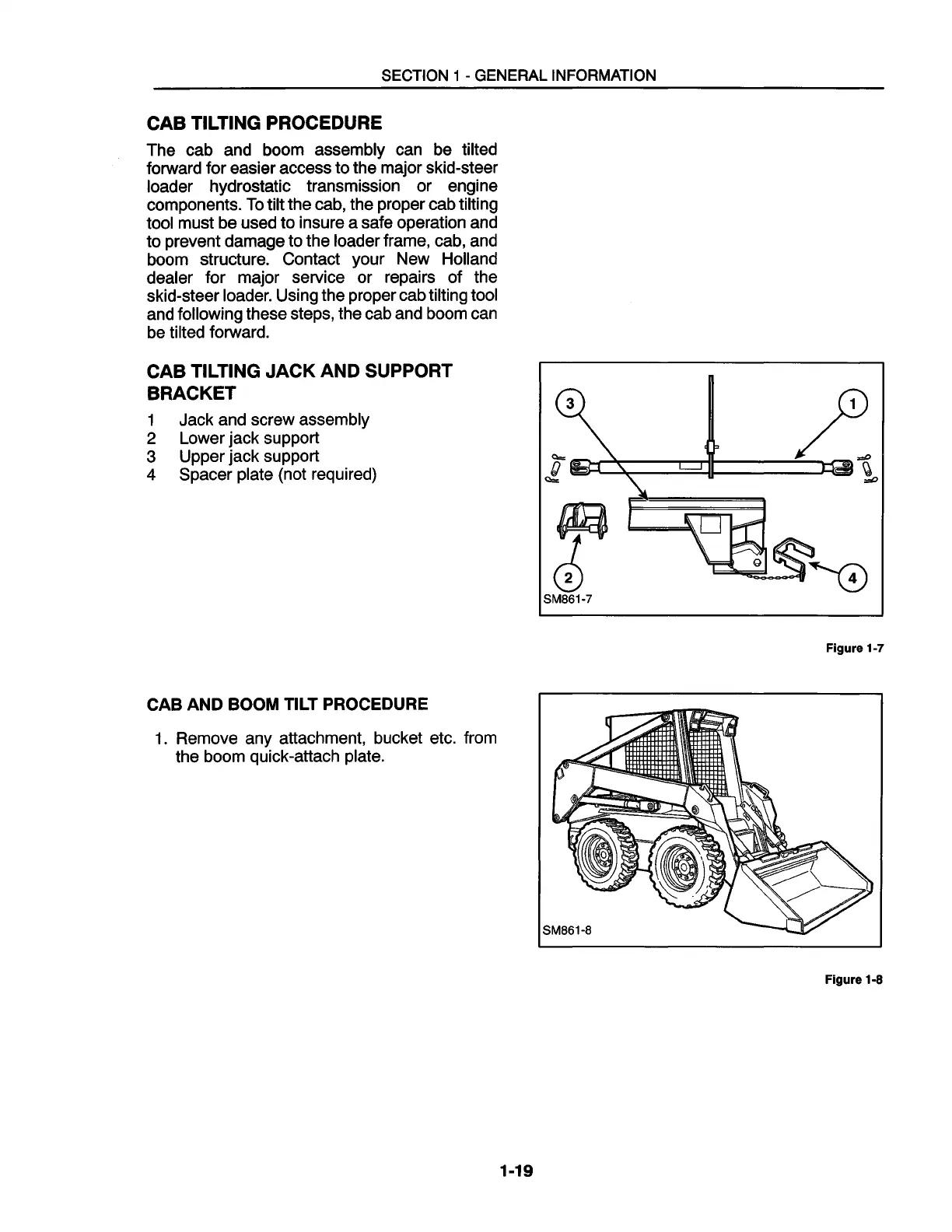

SECTION 1 - GENERAL INFORMATION
CAB TILTING PROCEDURE
The cab and boom assembly
can
be tilted
forward for easier access to the major skid-steer
loader hydrostatic transmission or engine
components.
To
tilt the cab, the proper cab tilting
tool must be used to insure a safe operation and
to prevent damage to the loader frame, cab, and
boom structure. Contact your New Holland
dealer for major service or repairs of the
skid-steer loader. Using the proper cab tilting tool
and
following these steps, the cab and boom
can
be
tilted forward.
CAB TILTING JACK AND SUPPORT
BRACKET
1 Jack and screw assembly
2 Lower jack support
3 Upper jack support
4 Spacer plate (not required)
CAB AND BOOM TILT PROCEDURE
1.
Remove any attachment, bucket etc. from
the boom quick-attach plate.
r
SM861-7
1-19
Figure 1-7
Figure 1-8
