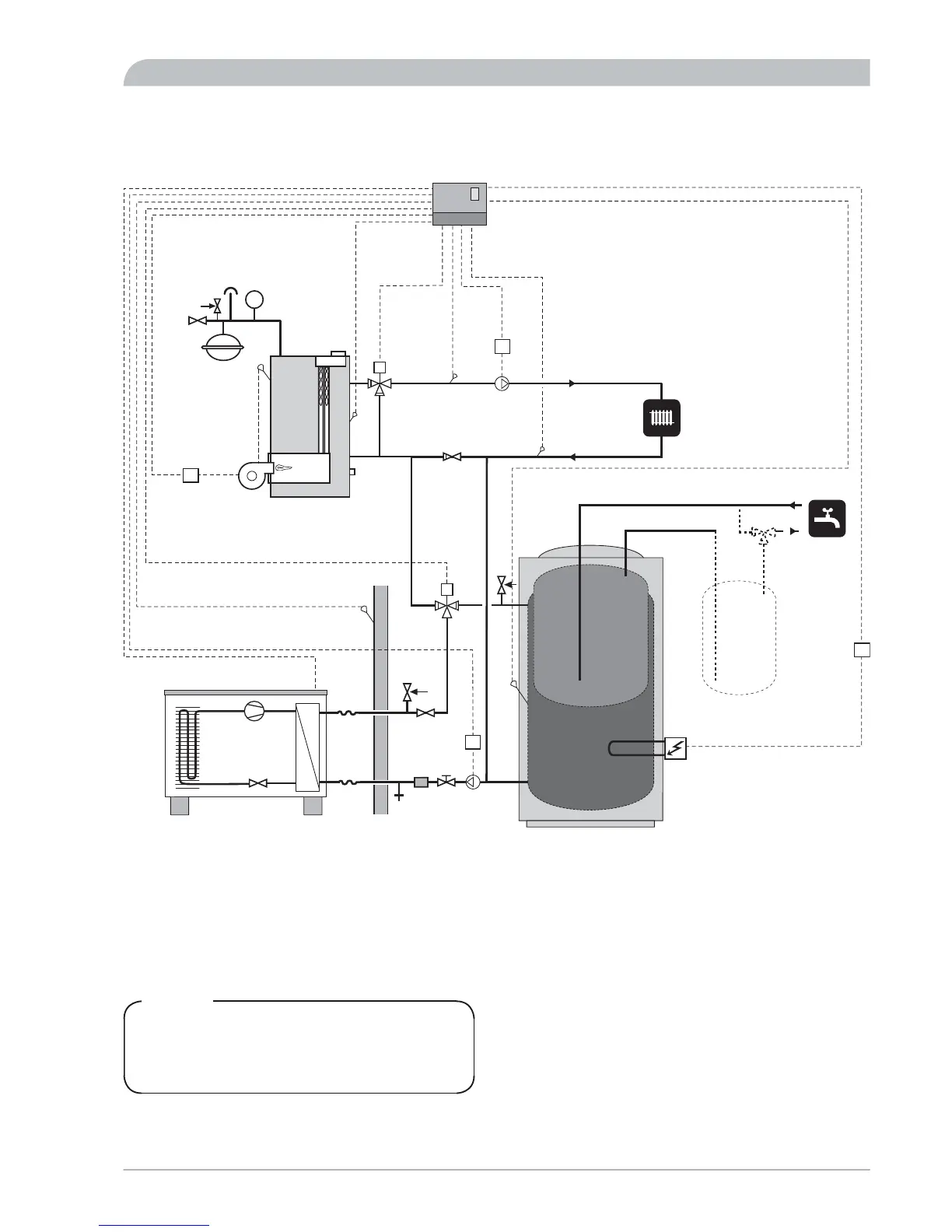

F2025 docked to the oil-fired/pellet boiler together with SMO 10 and water heater (floating condens-
ing)
VXV1
PG
SMO 10
HR
HR
HR
HR
SF RV
P
FG1
CP1
RG1
SV1
VVG
LP1
UG
SÄV
FIGHTER 2020
)
SMO 10 controls F2025, oil-fired boiler, circulation pumps,
shunts, etc. F2025 works with floating condensing against
the heating system and prioritises hot water charging via the
three way valve (VXV1).
If F2025 cannot meet the heating requirement, the oil-fired
boiler is started and additional heat is shunted in.
NOTE
To prevent interference, sensor cables and communic-
ation cables must be separated (min 20 cm) from high
voltage cables when cable routing.
11F2025
For the Installer
Docking
