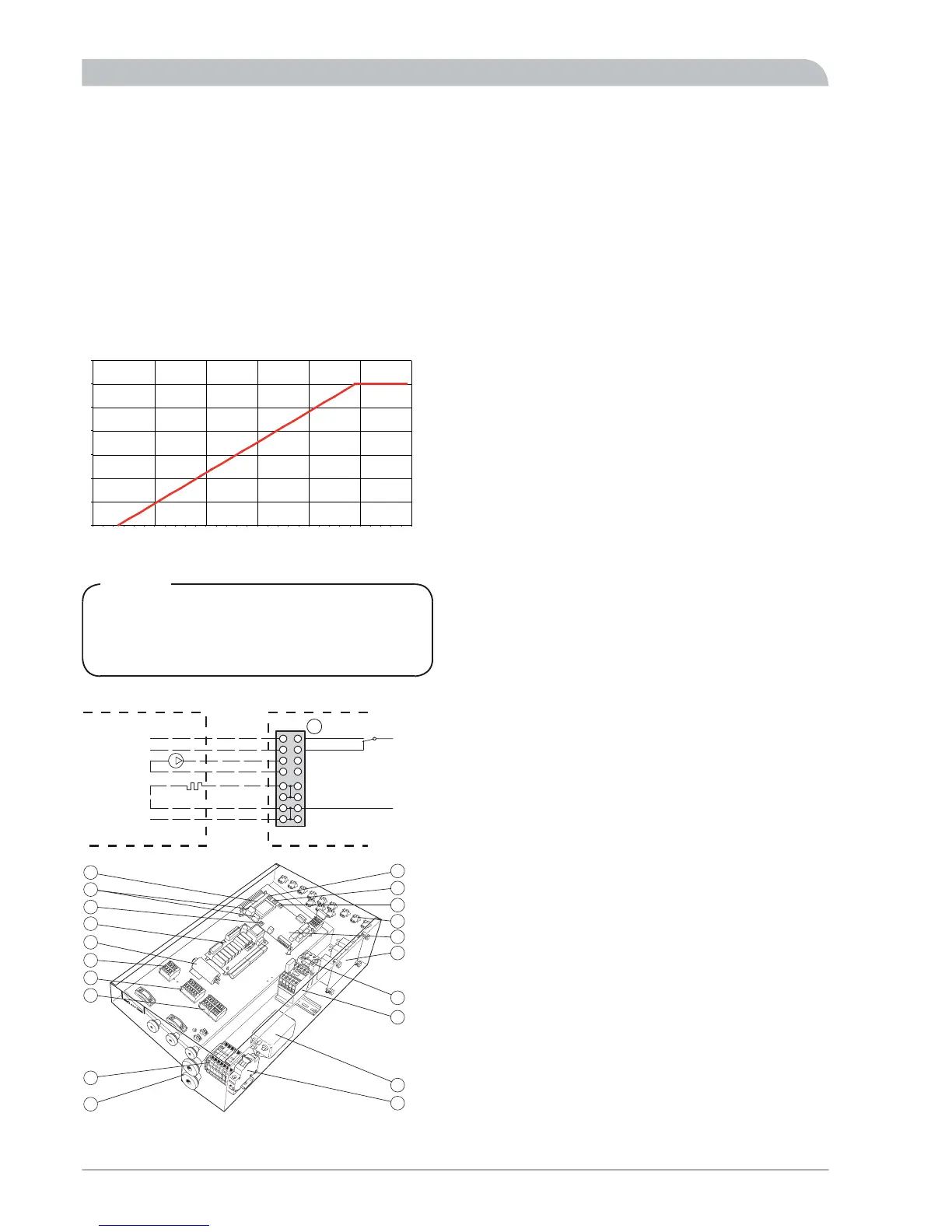

Charge pump
When the charge pump is connected to the terminal block
X11 (11) terminal 3 and 4 the pump is controlled by F2025.
Pump activity is dependent on the status of F2025, heat-
ing/hot water requirement and the outdoor temperature.
Pump exercising is handled by F2025.
Anti-freeze function
At temperatures below +2 °C, the charge pump runs period-
ically, and at temperatures below -20 °C it runs continually.
This function applies on the condition that F2025 is powered.
35
30
25
20
15
10
5
5 4 3 2 1 0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25
0
0LQXWHV SHU PLQXWHV
7HPSHUDWXUH
NOTE
There is a risk of freezing when the charge pump is
connected to terminal block X11 (11) and F2025 is
deenergized.
FIGHTER 2020EXTERNT
Signal vid icke larm
Signal vid larm
Laddpump
Extern värmekabel
N
N
230
3
4
1
X11
2
5
6
11
)
(;7(51$/
6LJQDO RQ
QRQDODUP
6LJQDOV LQ WKH
HYHQW RI DODUPV
&KDUJH SXPS
([WHUQDO KHDW
FDEOH
External heat cable
F2025 is equipped with a terminal block for the Condensation
water trough KVT 11 accessory. Max load is 200 W.
Outside sensor
An outdoor sensor (15) is located on the underside of F2025.
F202518
