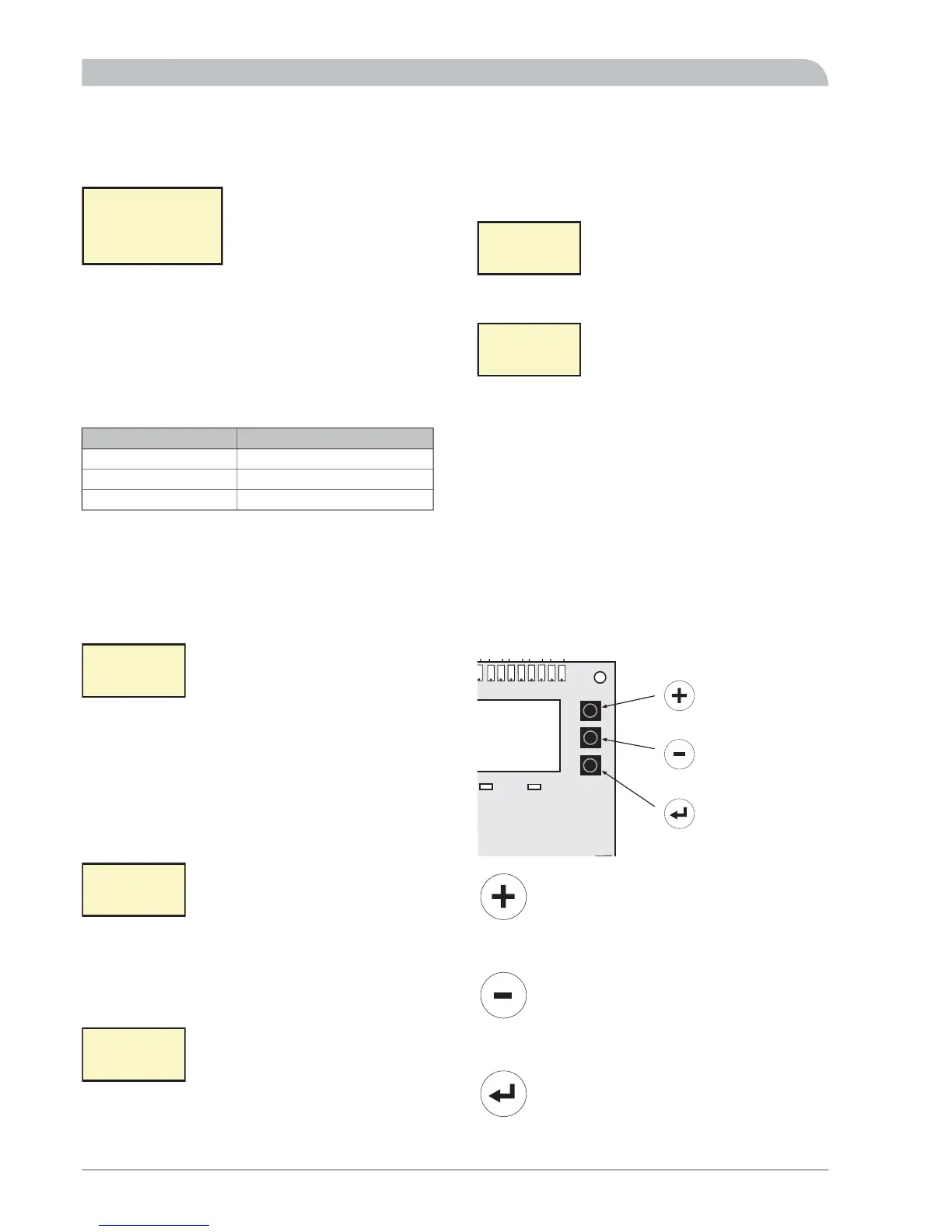

Control
Explanation
C0 F0 H0
S1 01
Fan: F0
The fan has two speeds, high and low (does not apply to
F2025-6 kW which only has one fan speed). The fan is con-
trolled by the outdoor temperature. The lower speed is used
when the outdoor temperature is too high to limit the output.
The fan does not run during defrosting. At an outdoor tem-
perature lower than the temperature in the table below the
fan speed is changed to high.
Outdoor temperatureType
118kW
1310 kW
1514 kW
Compressor: C0
Shows the present compressor status.
Channel: S1
Shows the current channel. Change channels using the Plus
button or the Minus button.
C0 F0 H1
S1 01
Compressor off, circulation pump offC0
Flashes when the compressor wants to start but is pre-
vented by the time conditions or high return temperat-
ure.
C
Fan offF0
Compressor heater onH1
Drip tray heater off
C1 F1 H0
S1 01
Compressor on, circulation pump onC1
Fan on, low speedF1
Compressor heater offH0
Drip tray heater off
C1 F2 H2
S1 01
Compressor on, circulation pump onC1
Fan on, high speedF2
Compressor heater offH2
Drip tray heater on
CD F0 H2
S1 02
Defrosting in progressCD
CC F0 H3
S1 01
Compressor off, circulation pump onCC
Compressor heater onH3
Drip tray heater on
Heater: H0
The compressor heater is always active when the compressor
is switched off.
The drip tray heater is connected when the outdoor temper-
ature drops below 2 °C and is disconnected when the stop
temperature is reached.
Value: 01
Shows the current value. Increase/decrease value using the
plus button respective minus button.
34
Plus button
The plus button (37) is used to browse through the
channel system (forwards) or raise the value of the
selected parameter.
See the section “Control” – “Channel description”
Minus button
The minus button (38) is used to browse through
the channel system (backwards) or lower the value
of the selected parameter.
See the section “Control” – “Channel description”
Enter button
The Enter button (39) is used to activate and confirm
value changes.
See the section “Control” – “Channel description”
F202524
For the Installer
