Several F2025 together with SMO 10 and water heater (floating condensing)
HR
HR
HR
FIGHTER 2020 VP2
FIGHTER 2020 VP1
SV1
FG1
RG1
SMO 10
CP1
PG
UG
LP2
LP1
VVG
VXV1
P
SÄV
SÄV
SÄV
AV
AV BV
BV
RV
TV
RV
TV
BV
SF
SF
) +3
) +3

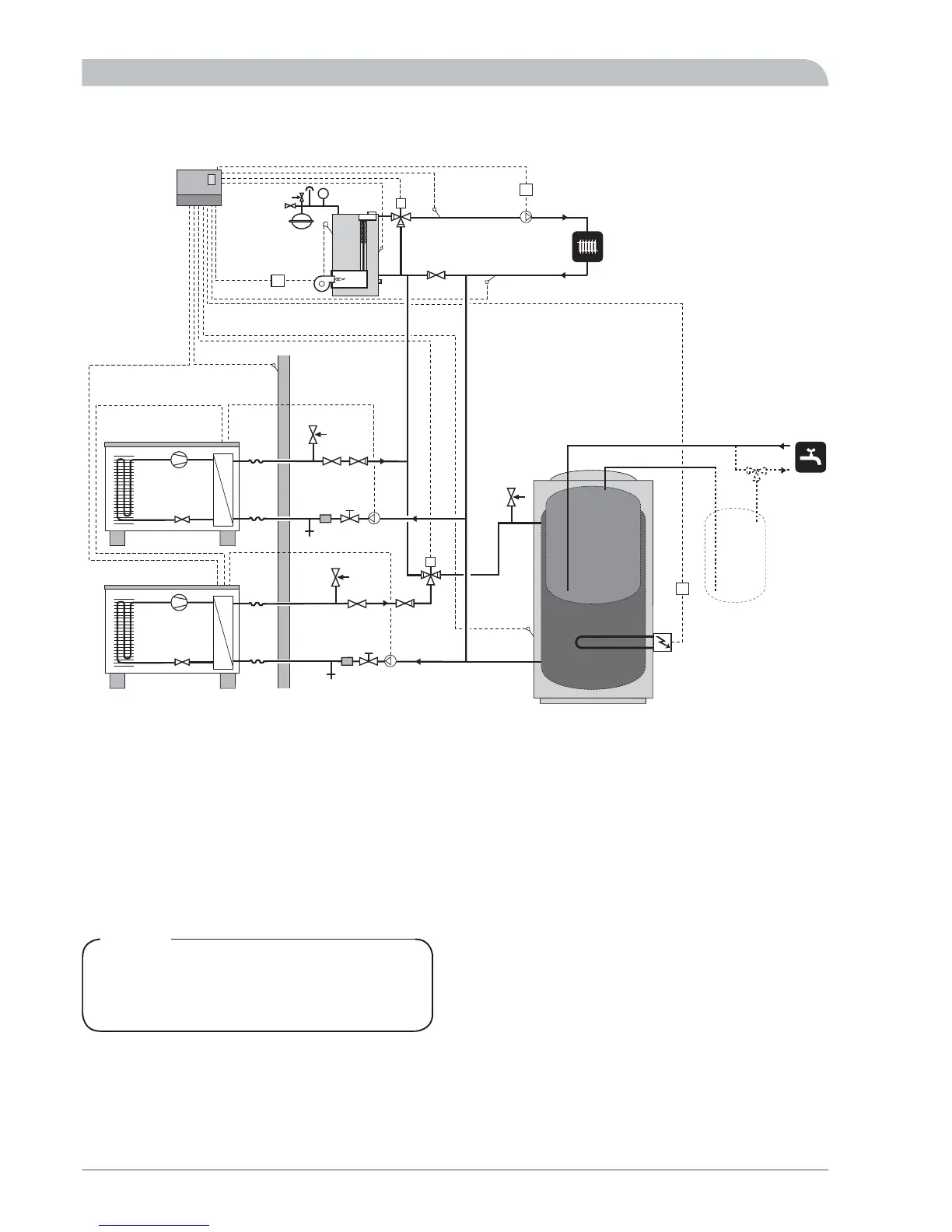

SMO 10 controls up to nine F2025 (of which max one for
hot water), immersion heater, circulation pump, shunt, etc.
F2025 works with floating condensing against the heating
system and prioritises hot water charging via three way valve
VXV1. F2025 VP1 produces hot water.
If F2025 cannot meet the heating demand, additional heat
is shunted in from the oil-fired boiler.
When additional heat is engaged, hot water is heated using
the immersion heater in the hot water heater.
NOTE
To prevent interference, sensor cables and communic-
ation cables must be separated (min 20 cm) from high
voltage cables when cable routing.
