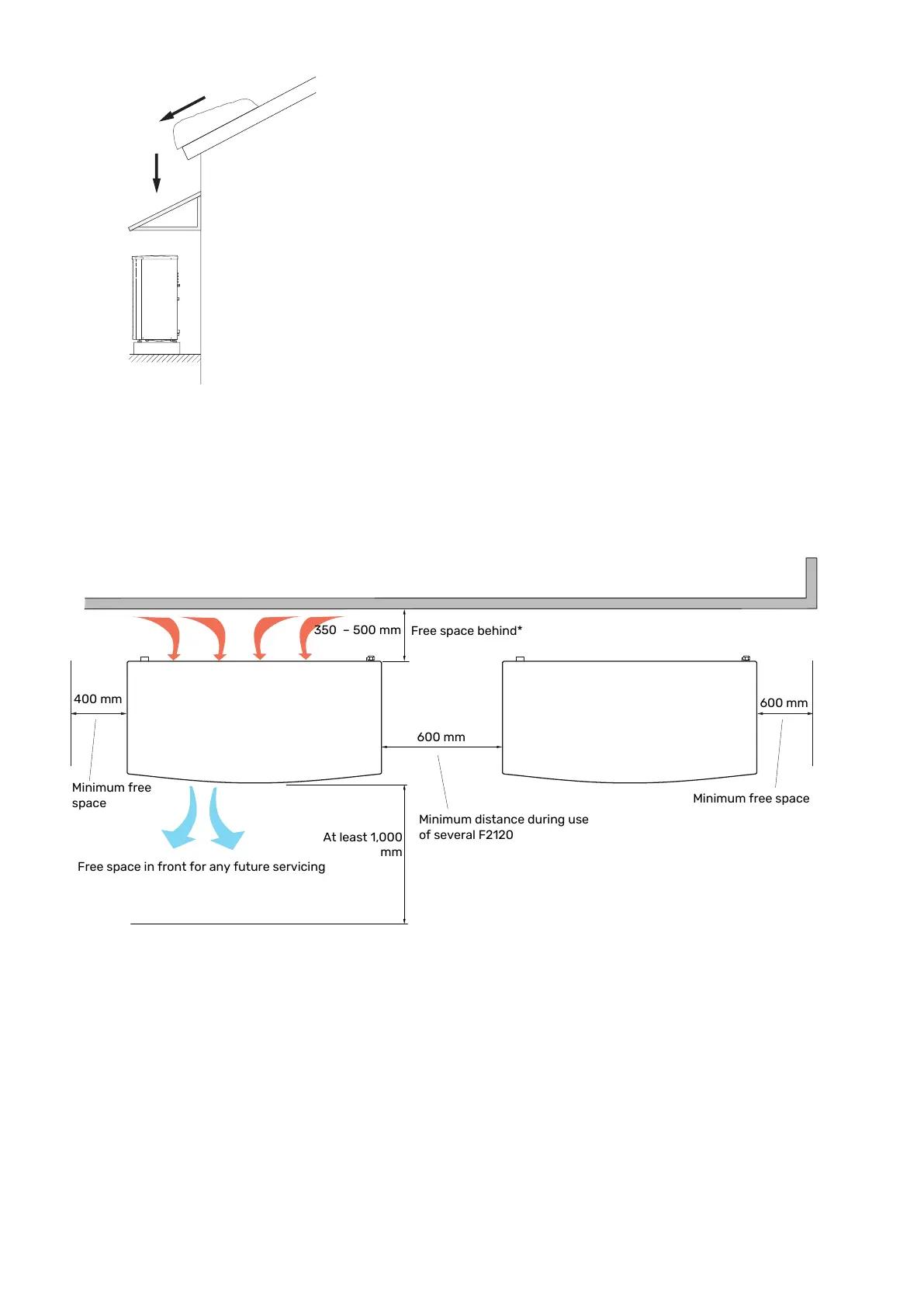

If there is a risk of snow slip from roof, a protective roof or
cover must be erected to protect the heat pump, pipes and
wiring.
Installation area
The distance between F2120 and the house wall must be at least 350 mm, but not more than 500 mm in locations that are
exposed to the wind. The free space above F2120 must be at least 1,000 mm. The free space in front must be at least
1,000 mm for any future servicing.
350 mm
Fritt utrymme bakom
Fritt utrymme framför
dock 1000 mm för ev. framtida service
Min. avstånd
vid användning
av flera F2300
600 mm
1000 mm
400 mm
Minimalt
fritt utrymme
600mm
Minimalt
fritt utrymme
Minimum free
space
Minimum free space
Minimum distance during use
of several F2120
600 mm
600 mm
At least 1,000
mm
Free space behind*
350 – 500 mm
400 mm
Free space in front for any future servicing
* The space behind must not exceed 500 mm in locations that are exposed to the wind.
6 NIBE F2120
