3 – PRODUCT INSTALLATION
• For models with “SM” type connection

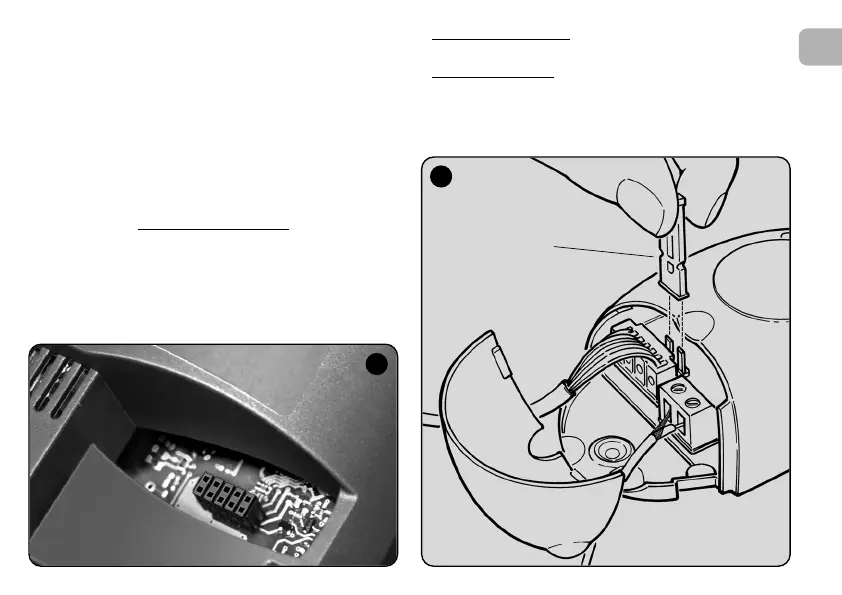

These models are connected to the control unit by inserting
the connector in the relative control unit connector (fig. 1).
Caution! – Before connecting or removing the receiver,
disconnect the control unit from the power supply.
The aerial supplied must also be installed, connecting it to the
specific terminals on the control unit.
• For models with universal type connection
––– Power supply selection –––
These models are connected to the control unit by means of a
6-core cable. Before connecting the cable, select the type of
power supply required, leaving or removing the electric jumper
as necessary (fig. 2-a) as follows:
– Jumper NOT inserted
= 24 V ac/dc
(voltage limits: 18 ÷ 28 V)
– Jumper INSERTED
= 12 V ac/dc
(voltage limits: 10 ÷ 18 V)
a
