English – 14

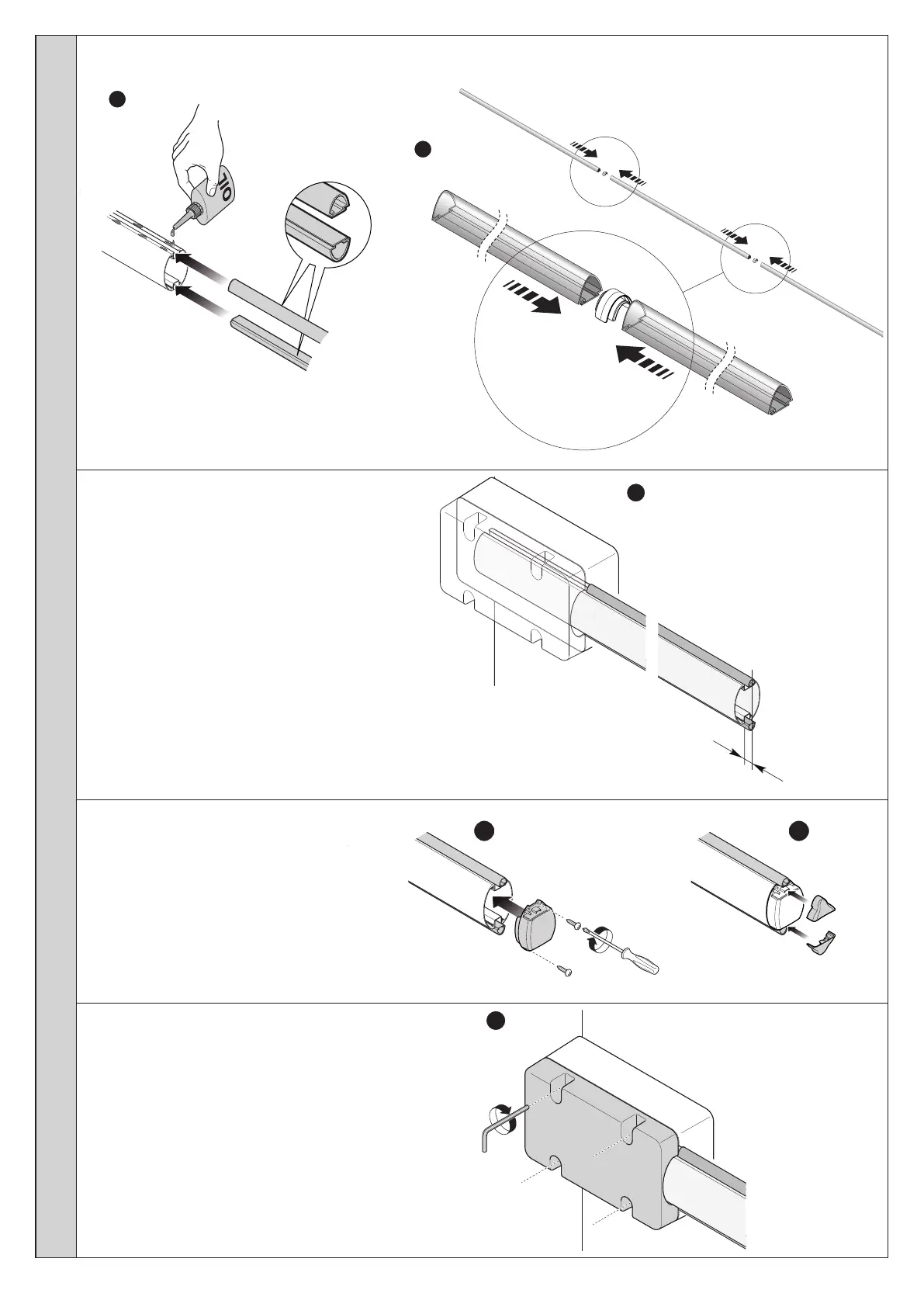

10. a - lightly oil the aluminium rail on both sides
b - insert the rst piece of the rubber impact protector in the slot as far as the end of the boom: perform this action on both sides
a
b
c - insert the joint for the rubber impact
protector and repeat for the other pieces
Note - The rubber impact protector can
protrude about 1 cm from the end of the
aluminium prole
1 cm
c
d - put on the boom cap and secure it with
the 2 screws supplied
e - position and t together the two caps
to cover the rubber impact protectors
d
e
f - insert the whole boom within the sup-
port shell up to the stop, then fully tighten
the 6 screws on the support
