Nikon 1 V1 Reference Manual

2
s
Take a few moments to familiarize yourself with camera controls
and displays. You may find it helpful to bookmark this section
and refer to it as you read through the rest of the manual.

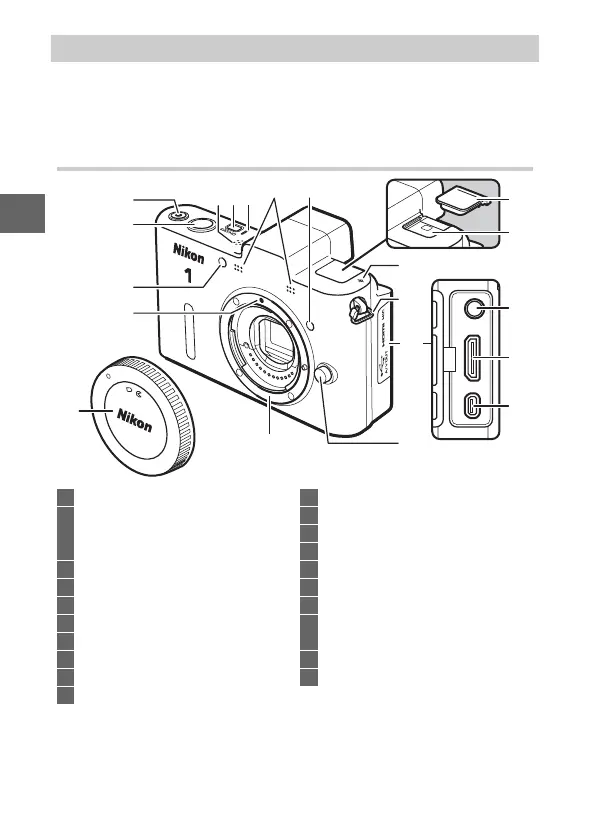

The Camera Body
Parts of the Camera
4
6
3
5
7
8 9
2
1
15
10
11
13
14
18
16
17
19
20
12
1 Mounting mark ...................................17
2 AF-assist illuminator .................53, 147
Self-timer lamp ...................................50
Red-eye reduction lamp ...................63
3 Shutter-release button.........26, 32, 39
4 Movie-record button .................. 27, 38
5 Speaker .................................................42
6 Power switch........................................18
7 Power lamp ..........................................18
8 Microphone.................................38, 141
9 Infrared receiver (front)............50, 183
10 Focal plane mark (E) ........................56
11 Eyelet for camera strap .....................12
12 Connector cover
13 Lens release button............................17
14 Lens mount ................................... 17, 56
15 Body cap .............................................163
16 Multi accessory port cover ........ 59, 66
17 Multi accessory port ................... 59, 66
18 Connector for
external microphone......................163
19 HDMI mini-pin connector.................91
20 USB and A/V connector.............. 85, 90
