Nikon Coolshot 40i User Manual

9
En
Fr
Es
Pt

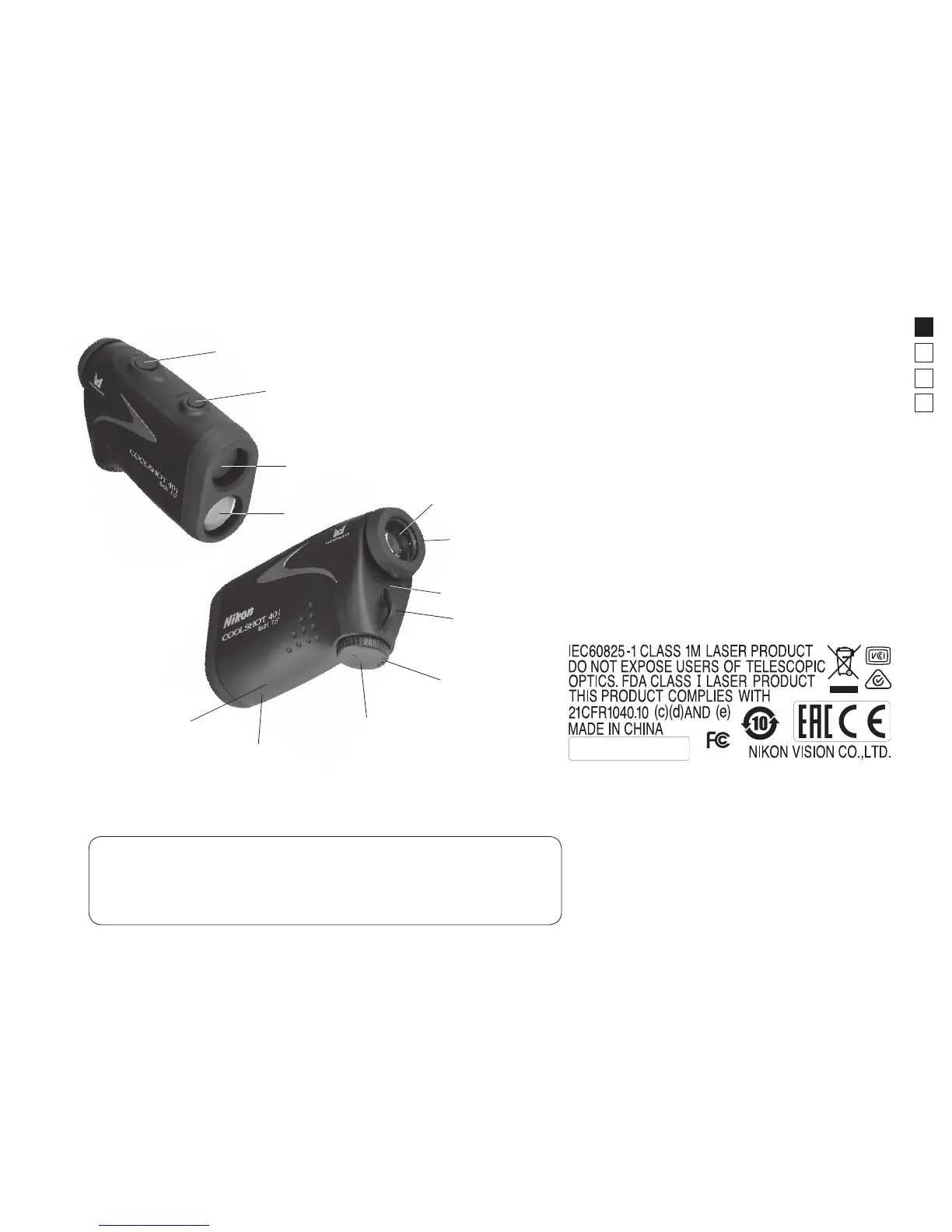

4. Nomenclature/Composition
1. Monocular objective lens/
Laser emission aperture
2. Laser detector aperture
3. MODE button
4. POWER ON/Measurement button
5. 6x monocular eyepiece
6. Eyecup/Diopter adjustment ring
7. Diopter index
8. Strap eyelet
9. Battery chamber cover “Open” indication
10. Battery chamber cover
11. Product number label
12. Indication
• Body ...................................... x1
• Case .......................................x1
• Strap ......................................x1
• Lithium battery (CR2) ..... x1
Composition
10
6
8
11
12
5
7
9
4
3
1
2

Nikon Coolshot 40i Specifications

General

Exit pupil	3.5 mm
Eye relief	18.3 mm
Magnification	6 x
Measurement range	7.5 - 590 m
Objective diameter	21 mm
Real field of view	7.5 °
Measurement accuracy	0.75 m
Battery type	CR2
Number of batteries supported	1
Operating temperature (T-T)	-10 - 50 °C

Weight and Dimensions

Weight	160 g
Dimensions (WxDxH)	36 x 112 x 70 mm
