Nikon ECLIPSE TE2000-E User Manual

III. Operation of each part
40

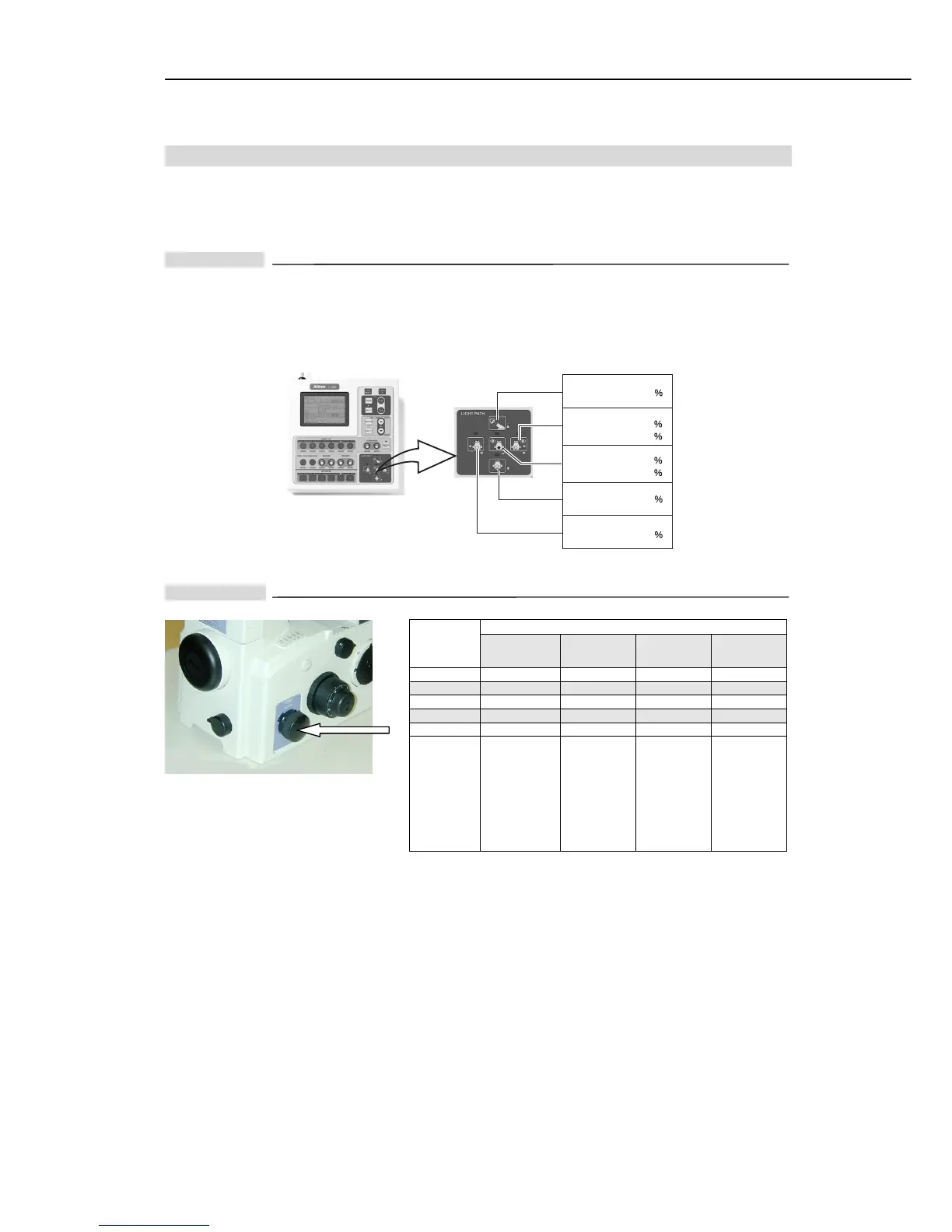

3. Optical path switching
Use the “optical path switchover dial” to send the image to each port. (See page 51 for the type of the photomicrography
equipment that each port can accept.)
For TE2000-E
Connect the T-RCP remote control pad or PC to the T-HUBC HUB controller for the switching of the optical path. For details,
refer to the instruction manual supplied with the T-HUBC HUB controller.
For TE2000-U
Light distribution(％
％％
％)
Position of
optical path
switchover
dial
Observation
port
Front
port
Right-side
port
Left-side
port
1 100 - - -
2 20 - 80 -
3 (*1) - - - -
4 20 80 - -
5 - - - 100
Equipment
that can be
attached to
the port
Eyepiece tube
Intermediate
Tub e
+
trinocular
eyepiece tube
(+ various
equipment)
SLR camera
F-mount
digital camera
Photomicro-
graphy
equipment
for
microscopes
Digital camera
TV camera
Photomicro-
graphy
equipment
for
microscopes
Digital camera
TV camera
*1: Dial position "3" cannot be used on
normal microscope models; however,
an optional prism such as "front port
100%" and "right-side port 100%" can
be installed.
Observation port
Observation port
Right-side port
Bottom port
Left-side port
Observation port
Front port
100
20
80
20
80
100
100
When using the T-RCP remote control pad
The LED above the selected key lights.
