IV. Assembly
59

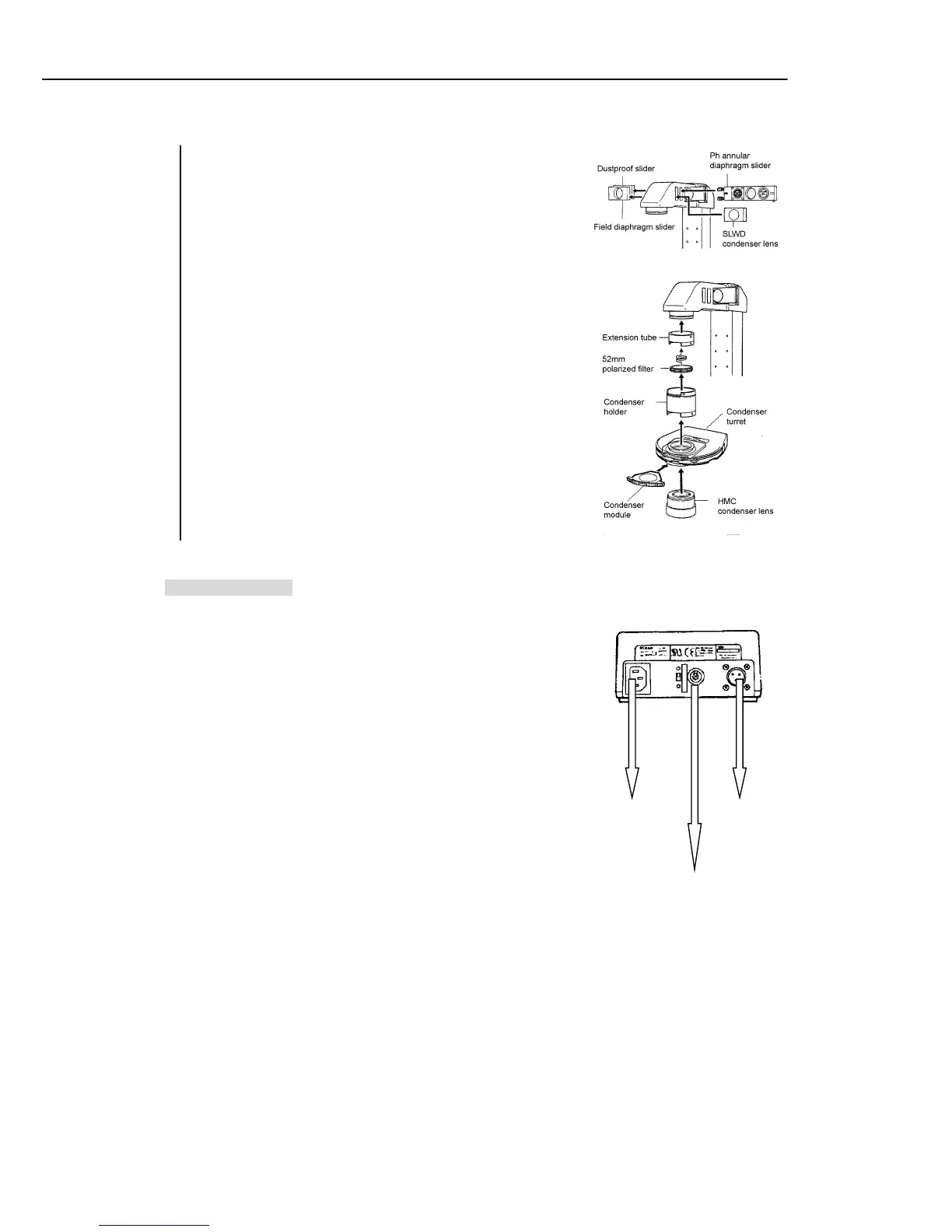

Attaching the “SLWD condenser”:
1) Remove the dustproof and field diaphragm sliders from
the illuminator.
2) Insert the SLWD condenser lens to the front, and Ph
annular diaphragm slider to the rear opening.
Attaching the “HMC condenser”:
1) Screw on the 52mm polarized filter inside the extension
tube supplied together with the HMC condenser lens.
2) Attach the extension tube to the dia-illuminator.
3) Attach the condenser holder to the extension tube.
4) Attach the condenser turret to the condenser holder.
5) Screw on the HMC condenser lens to the turret.
6) Attach the HMC module to the turret.
9. Power supply
First make sure that the power switch is turned off (pressed to the O side).
1) Lamp cable
Lamp cable of the dia-illuminator is to be connected to the
“OUTPUT” connector on the power supply. Do not forget to
tighten the lock ring on the connector.
2) Control cable
Connect one side the “LAMP CTR
connector on the microscope,
and the other side to the “EXTERNAL” connector on the power
supply. (If TE-PS30 or TE-PSE30 power supply is used, connect
to “CTRL” connector instead of the EXTERNAL connector.)
When installing the HUB controller, be sure to refer to the
instruction manual supplied with the HUB controller.
3) Power cord
Connect one side to the “AC IN” connector on the power supply,
and the other side to the wall outlet.
If other devices, such as photomicrographic equipment, are to be
attached to the microscope, the power cord should be connected
only after those devices are attached to the microscope.
This ends the assembly of normal set.
Power cord
(To the wall outlet)
Control cable
(To the “Lamp CTRL” connector on
the microscope)
Lamp cable
(To the
dia-illuminator)
To Next Page
