Chapter 1 Part Names
1.6 Condenser
20
1.6 Condenser
1.6.1 TI-C Condenser Turret (System Condenser)
The TI-C Condenser Turret allows you to attach various optical elements to a turret and select them as
necessary for different microscopy methods. This type of condenser is referred to as a “system condenser”.
System Condenser (Mounted on TI-DH Dia Pillar Illuminator 100W)

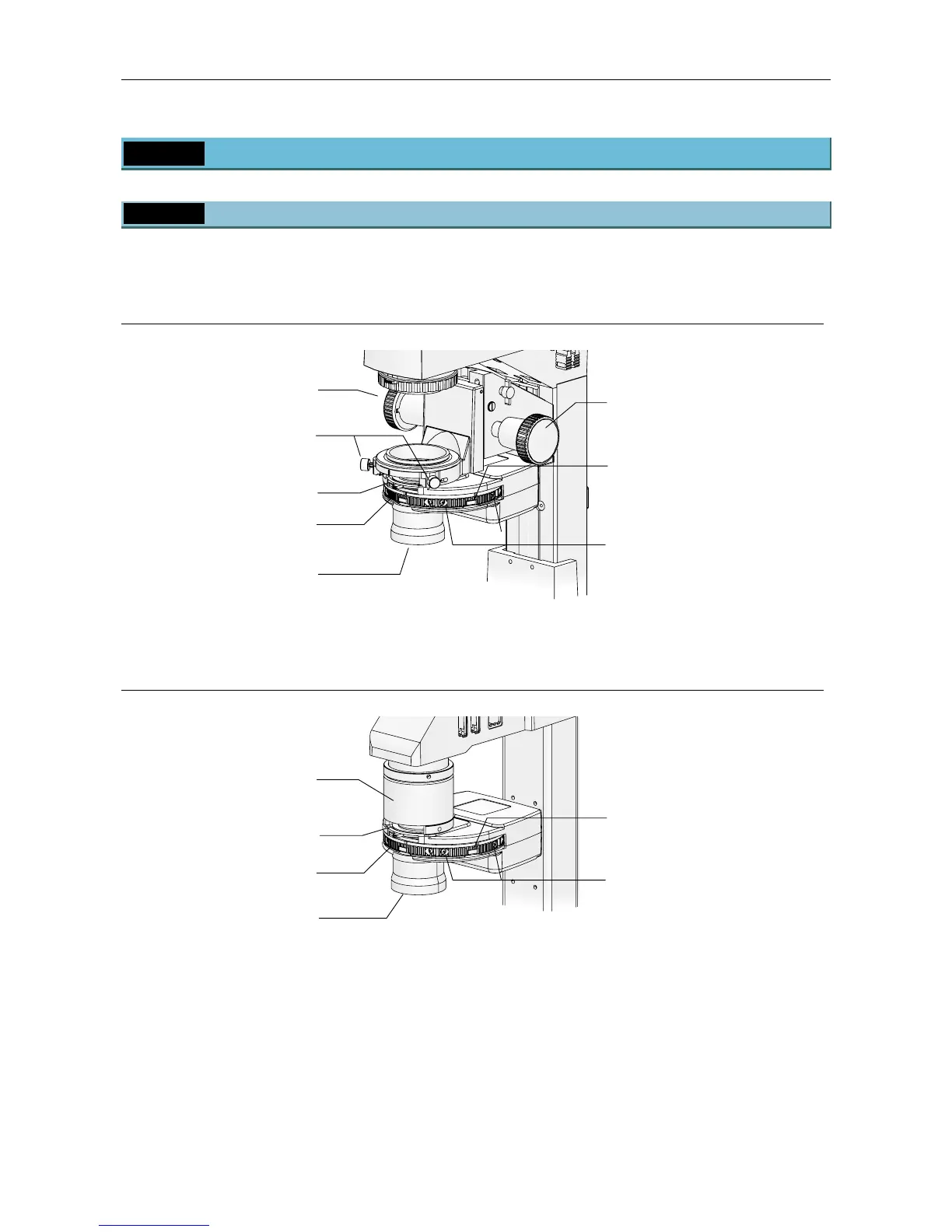

Figure 1-19 TI-C Condenser Turret
(mounted on TI-DH Dia Pillar Illuminator 100W)
System Condenser (Mounted on TI-DS Dia Pillar Illuminator 30W)
Figure 1-20 TI-C Condenser Turret
(mounted on TI-DS Dia Pillar Illuminator 30W)
* The system condenser can be mounted on the TI-DS Dia Pillar Illuminator 30W for HMC observation only.
Condenser focus knob
Condenser focus knob
Condenser centering knob
Condenser lens
(4 types: ELWD, LWD,
HMC, and CLWD)
Condenser cassette clamp screws
(
both sides of cassette
)
Condenser turret
Condenser cassettes
(Ph condenser cassettes have
phase contrast ring centering
screws on the sides.)
Aperture diaphragm
open/close leve
r
Condenser holde
r
Condenser lens
(for HMC only)
Aperture diaphragm
o
p
en/close leve
r
Condenser cassette clamp screws
(both sides of cassette)
Condenser turret
Condenser cassettes
