Nikon Forestry Pro User Manual

18 19
En En
* Waterproof models
The Nikon Laser Forestry Pro is waterproof, and will suffer no damage to the optical system if submerged or dropped in water to a
maximum depth of 1 meter for up to 10 minutes.
The Nikon Laser Forestry Pro offers the following advantages:
• Canbeusedinconditionsofhighhumidity,dustandrainwithoutriskofdamage.
• Nitrogen-filleddesignmakesitresistanttocondensationandmold.
Observe the following when using the Nikon Laser Forestry Pro.
• Theunitshouldnotbeoperatednorheldinrunningwater.
• Anymoistureshouldbewipedoffbeforeadjustingmovableparts(eyepiece,etc.)oftheNikonLaserForestryProtoprevent
damage and for safety reasons.
To keep your Nikon Laser Forestry Pro in excellent condition, Nikon Vision recommends regular servicing by an authorized dealer.
**Thebatterychamberiswaterresistant,notwaterproof.WatermayenterthedeviceiftheNikonLaserForestryProissubmergedin
water. If water enters the battery chamber, wipe out any moisture and allow time for the chamber to dry.

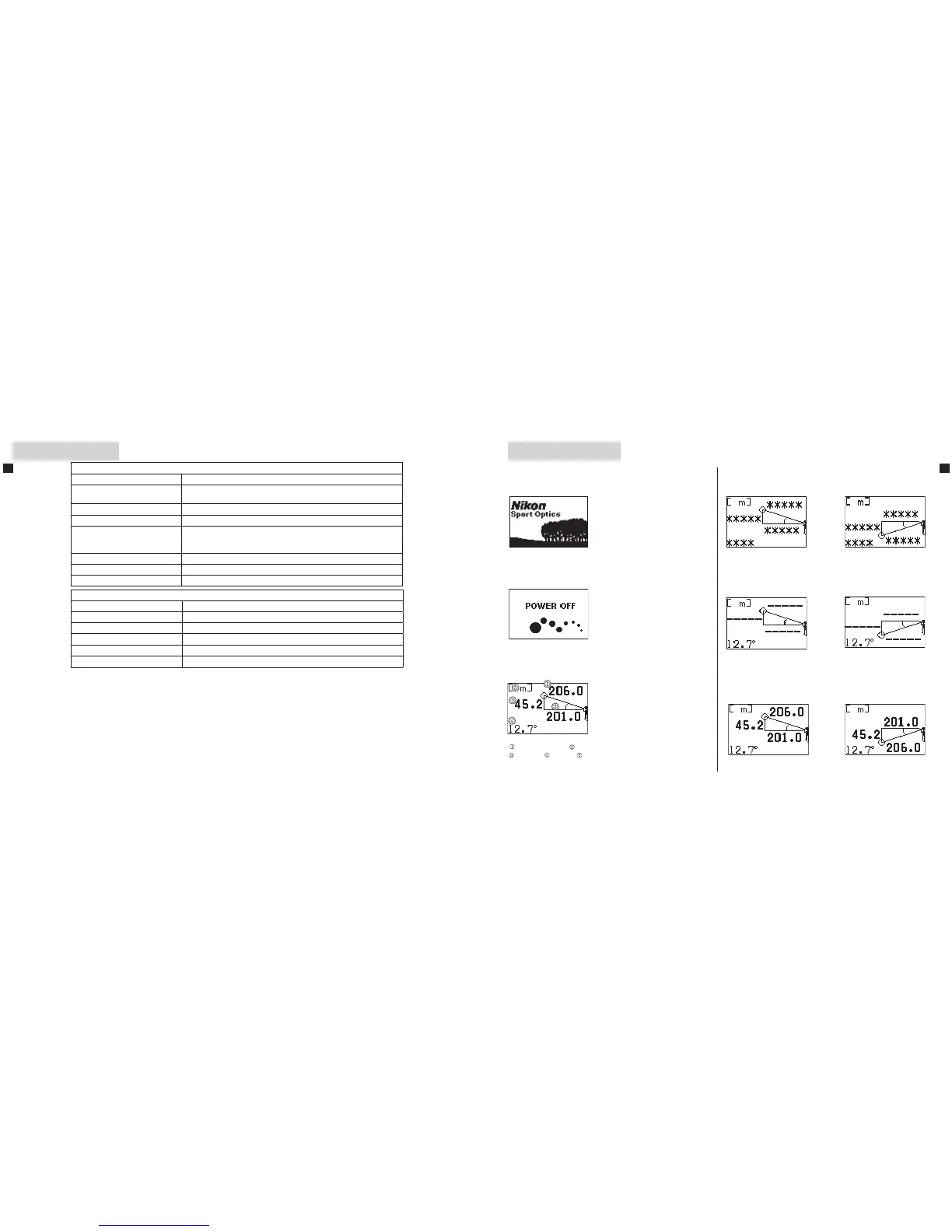

Specifications External display
[Power On]
After the power is turned on, the
internal and external LCDs are
illuminateduntileitherthePOWERor
MODEbuttonispressed.
[Power off notice]
If 30 seconds pass without operation,
the power turns off. Approx. one
second before power turns off, this
screen is displayed.
[Results]
1PointMeasurement
After measurement, all data “linear
distance, horizontal distance, height
and angle” are displayed. Units can be
shown in meters, yards or feet. Angles
are indicated by °(degree).
[ m ] : meter
[ YD ] : yards
[ ft ] : feet
Linear distance Horizontal distance
Height Angle Unit
[Whilemeasuring]
Whenthetargetisupward
Whenthetargetisdownward
[Measurementunsuccessfulorunabletomeasure]
Whenthetargetisupward
Whenthetargetisdownward
Withnegativevalues,
the“–(minus)”symbolisnotshown.
[Measurementcomplete]
Whenthetargetisupward
Whenthetargetisdownward
Others
Operating temperature (˚C) -10—+50
Power source CR2 lithium battery x 1 (DC 3V)
Auto power shutoff function equipped (after approx. 30 seconds)
Dimensions(LxHxW)(mm) 130x69x45
Weight(g) Approx. 210 (without battery)
Structure Body:Waterproof
(maximum depth of 1 meter for up to 10 minutes)*
（Batterychamber:Waterresistant**）
Safety Class1MLaserproduct(EN/IEC60825-1:2007)
EMC FCCPart15SubPartBclassB,CE:EMCdirective,C-tick,VCCIclassB
Environment RoHS,WEEE
Laser
Class EN/IECClass1M
Wavelength(nm) 870
Pulse duration (ns) 14
Output(W) 15
Beam divergence (mrad) Vertical: 2.5, Horizontal: 0.025
Operating humidity (%RH) 80 (without dew condensation)

Nikon Forestry Pro Specifications

General

Exit pupil	3.5 mm
Eye relief	18.2 mm
Laser class	1M
Magnification	6 x
Measurement range	10 - 500 m
Objective diameter	21 mm
Real field of view	6 °
Battery type	CR2
Battery voltage	3 V
Number of batteries supported	1
Tripod included	No
Certification	FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI class B\\r RoHS, WEEE

Weight and Dimensions

Weight	210 g
Dimensions (WxDxH)	130 x 69 x 45 mm
