Nikon N Series/K Series Total Station Instruction Manual 17
Preparation 2
Setting the Measurement Mode and Preparing the Target
The instrument has two measurement modes. N 2" and N 5" have Prism mode and
Reflectorless mode, and K 2" and K 5" have Prism mode and Sheet mode.
Select either mode appropriate for the target to be measured referring to the table
below, and set it by the installed application software.
You can measure any other target not specified for the set measurement mode, if
necessary.
Note – N 2" and N 5" are Laser Class 1 in distance measurement, and Laser Class 2
in Laser pointer function. Don’t sight the Prism when the Laser Pointer is on.
Note – K 2" and K 5" are Class 1 laser in distance measurement.
Measurement with a prism

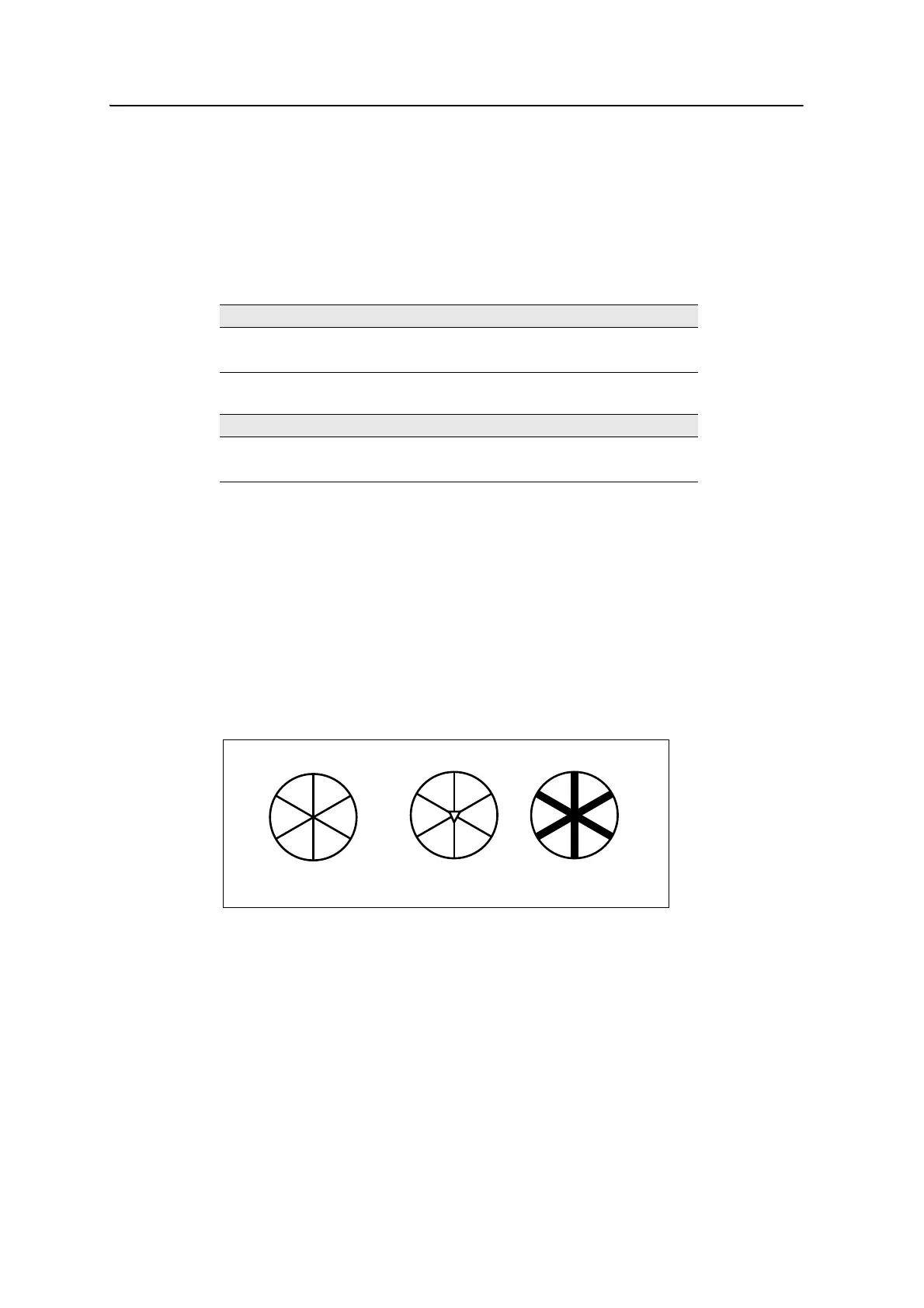

Do not use a prism with scratches, a dirty surface, or a chipped center. Prisms with
thin edges are recommended.
As the instrument is extremely sensitive, multiple reflections on the prism surface can
sometimes cause a significant loss in accuracy.
N 2" and N 5"
Target Target setting
Prism, reflector sheet Prism (Prism mode)
Other (reflective materials) N-Prism (Reflectorless mode)
K 2" and K 5"
Target Target setting
Prism Prism
Reflector sheet Sheet
thin edges
chipped center thick edges
✓
✕
✕
