SQUEEGEE INSTALLATION
1 See Figure 6. Ensure the Squeegee Seal (AA) is free from debris and installed on the Squeegee Assembly (24). Lift the squeegee
assembly by its Handles (AB) and slide it onto the Squeegee Mount (AC) and tighten the Squeegee Mount Thumb Nuts (21).
2 Connect the Recovery Hose (33) to the squeegee mount (AC).
3 Lower the squeegee and move the machine ahead slightly. Check that the rear squeegee blade touches the fl oor evenly across its entire
width and is bent over slightly as shown in the squeegee cross section (AD). If necessary adjust the rear squeegee to the proper height and
angle by following the steps in the “Squeegee Adjustment” section.

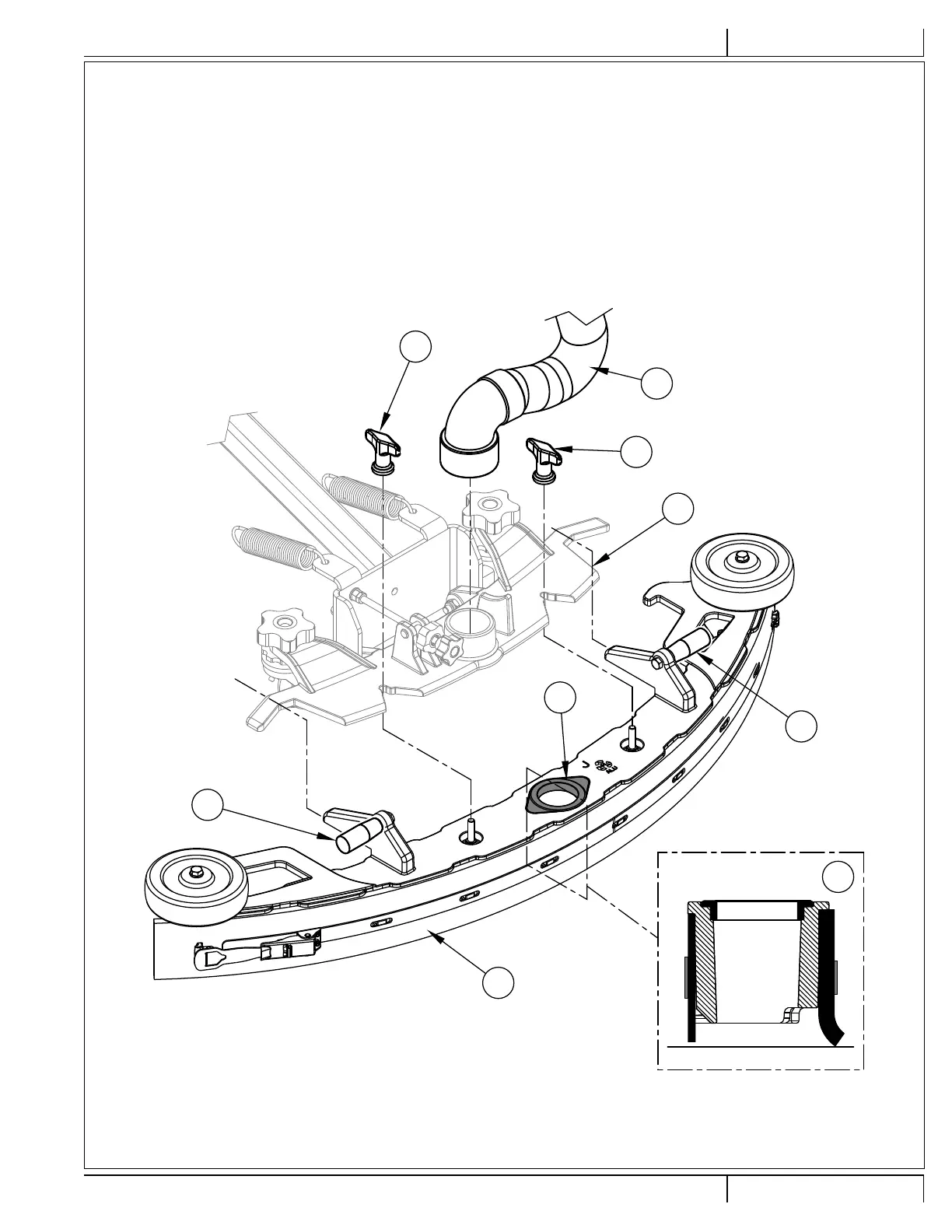

FIGURE 6
AA
AC
21
33
21
24
AD
AB
AB
