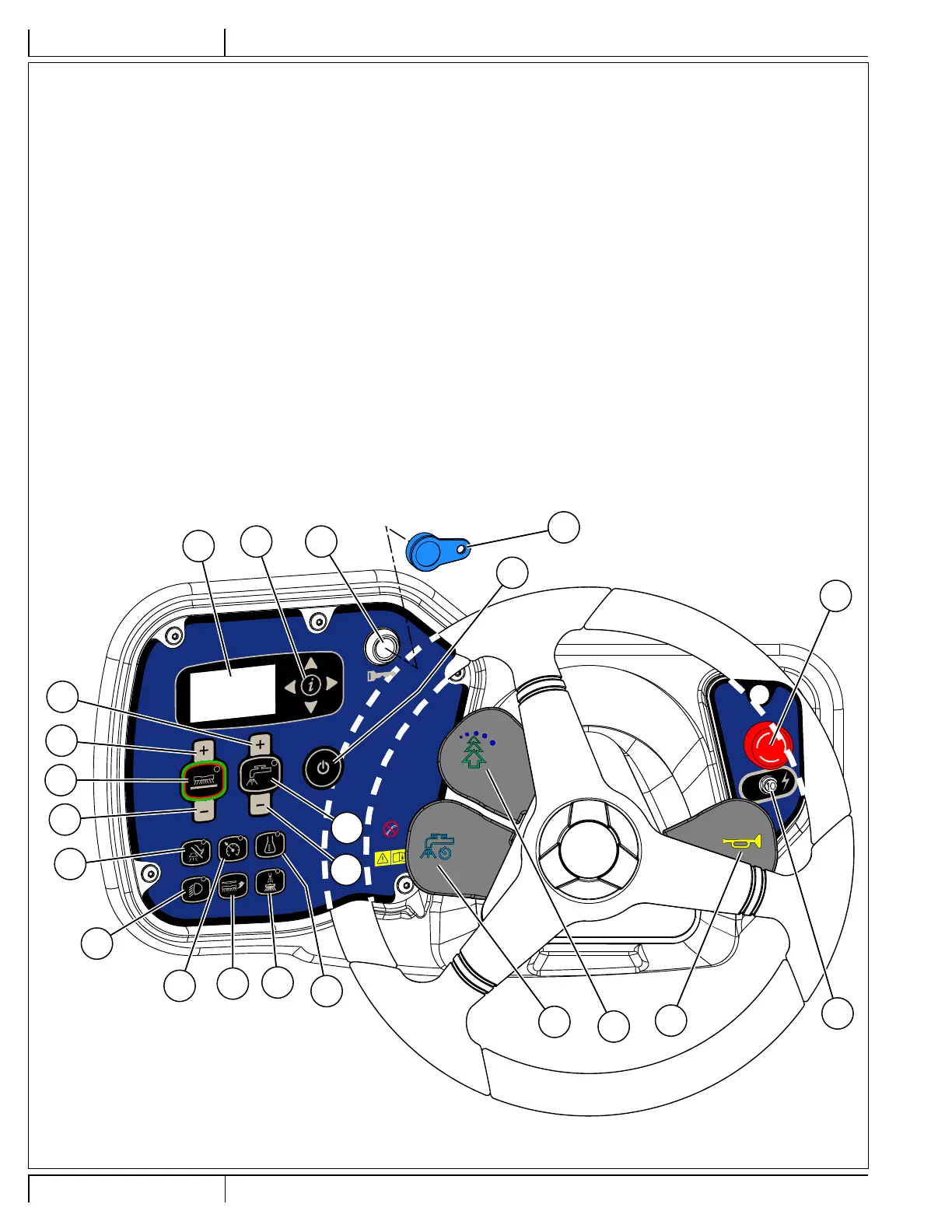

CONTROL PANEL
A Smart Key Reader
B Power Switch
C Display
D Information Switch and Navigation Switches
E One-Touch™ Scrub Switch
F Scrub Pressure Increase Switch
G Scrub Pressure Decrease Switch
H Solution Switch
J Solution Flow Increase Switch
K Solution Flow Decrease Switch
L Vacuum / Wand Switch
10
A
A
B
C
D
E
F
G
L
M
N
O
P
Q
S
R
T
U
V
J
H
K
W
M Headlight Switch (optional)
N Speed Limiter Switch
O Brush Install Switch
P Dust Guard™ Switch (optional)
Q Detergent Switch
R Timed Solution Off Paddle
S EcoFlex Paddle
T Horn Paddle
U Emergency Stop Switch
V Control Circuit Breaker
W Magnetic Smart Key
