Nokia 445PRO User Manual

445N
5

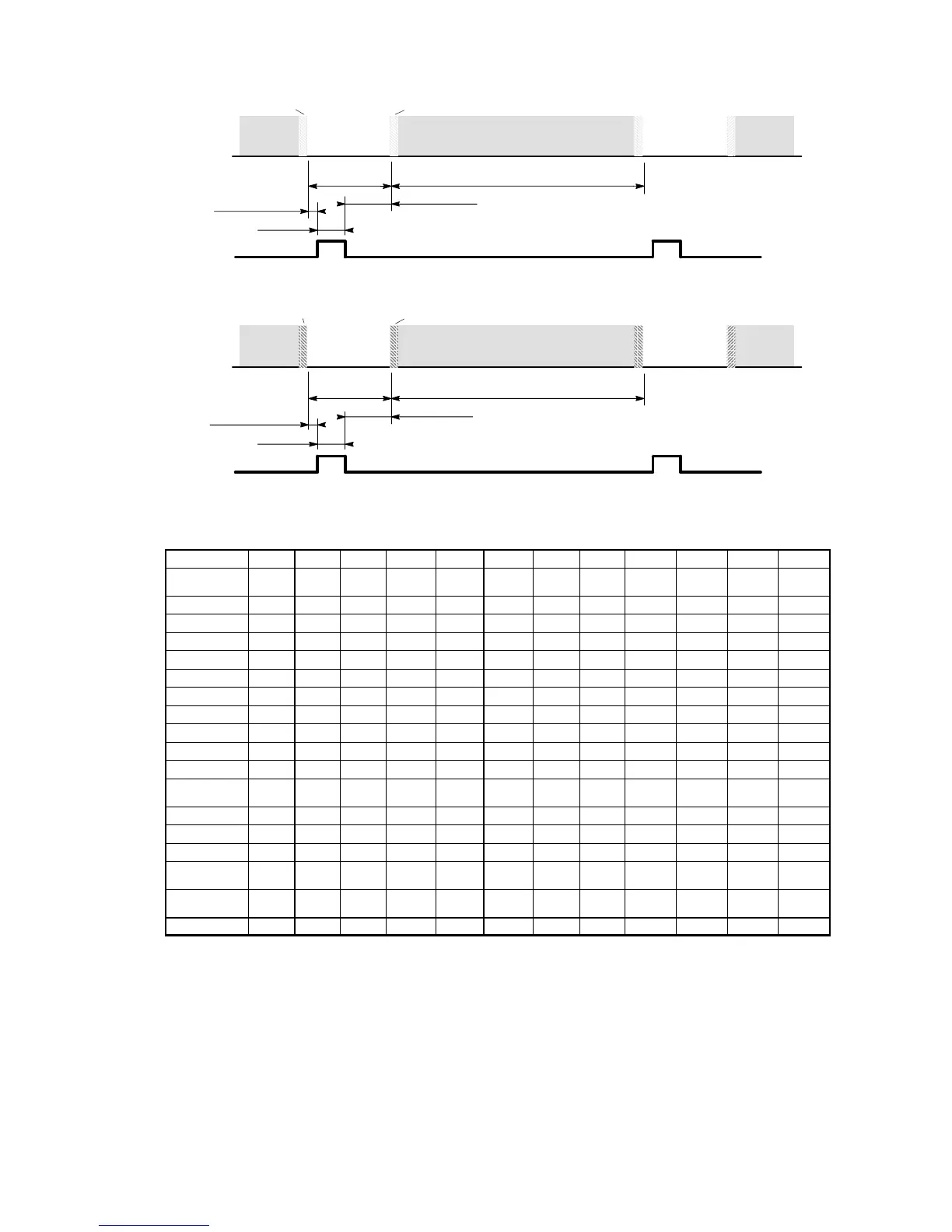

1.3. Preset Display Modes
H Front Porch
Video
Full
intensity
0.7 V
Blanking 0 V
H Active Video
HSync
HBlanking
Left BorderRight Border
HBackporch
HSync.
Signal
V Front Porch
VBackPorch
Video
Full
intensity
0.7 V
Blanking 0 V
V Active Video
VSync
VBlanking
Bottom Border
Upper Border
VSync.
Signal
445PRO (445N051, 445N059)
Display Mode no 00 01 02 03 04 05 06 07 08 09 10 11
NCE N07A85
V
L9 1 --- 8 5
W
L8 0 --- 7 5
W
G 6 9 --- 8 5
W
E 5 4 --- 8 5
W
C 4 3 --- 8 5
W
B 3 1 --- 7 0
B
C 3 1 --- 6 0
W
G 6 0 --- 7 5
W
N 9 4 --- 7 5
W
N06A85
W
Q21A80V
VFrequency/Hz 85.0 85.0 75.0 85.0 85.06 85.0 69.9 59.9 75.0 75.0 85.0 80.0
HFrequency/kHz 107.10 91.146 79.976 68.677 53.674 43.269 31.469 31.472 60.023 93.755 106.25 120.56
HPeriod/us 9.336 10.971 12.504 14.561 18.631 23.111 31.778 31.774 16.660 10.666 9.41 8.29
Active Video/us 6.815 8.127 9.481 10.836 14.222 17.778 25.442 25.420 13.003 7.901 6.97 6.0
HResolution 1600 1280 1286 1024 800 640 640 640 1024 1600 1600 1800
HSync/us 0.750 1.016 1.06 1.02 1.14 1.56 3.813 3.81 1.219 0.948 0.83 0.67
HBackPorch/us 1.261 1.422 1.84 2.20 2.70 2.22 1.907 1.91 2.235 1.501 1.32 1.13
VPeriod/lines 1260 1072 1066 808 631 509 450 525 800 1250 1250 1507
VResolution 1200 1024 1024 768 600 480 400 480 768 1200 1200 1440
VSync/lines 3 3 3 3 3 3 2 2 3 3 3 3
VBackPorch/
lines
56 44 38 36 27 25 36 33 28 46 46 63
HSyncPolarity --- + + + + --- --- --- + + + ---
VSyncPolarity + + + + + --- + --- + + + +
H Front Porch/us 0.51 0.41 0.12 0.51 0.57 1.56 0.64 0.64 0.20 0.32 0.27 0.47
V Front Porch/
lines
1 1 1 1 1 1 12 10 1 1 1 1
Dot Frequency/
MHz
234.780 157.500 135.640 94.500 56.250 36.000 25.175 25.177 78.750 202.510 229.490 299.000
Interlacing no no no no no no no no no no no
